| Westerschelde 16 August 2016 |
|
Name |

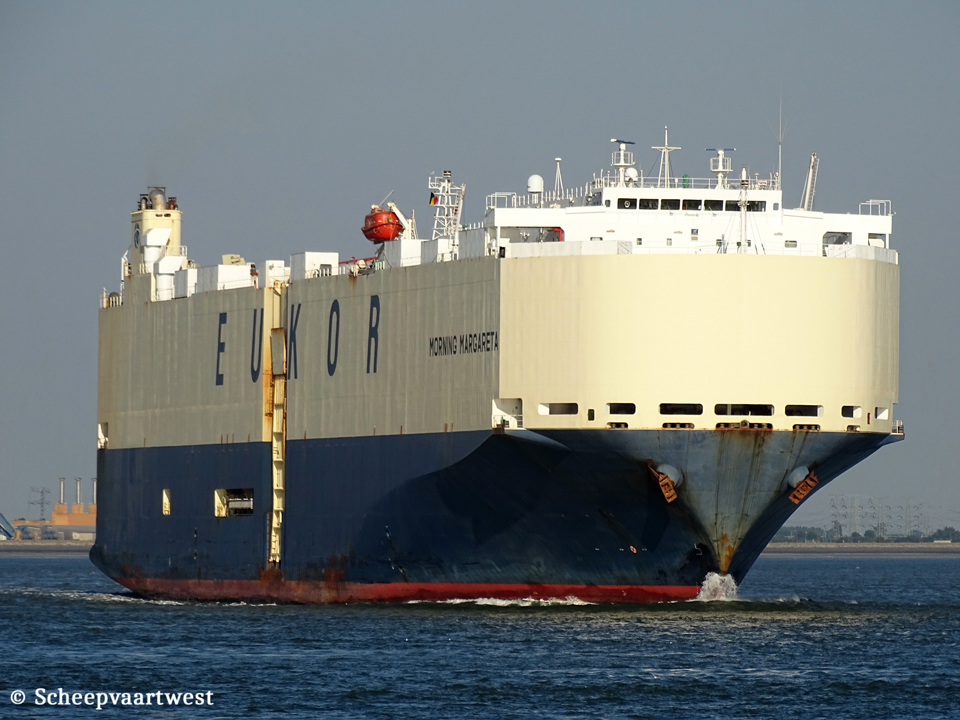

MORNING MARGARETA |
|
Type |
Roll-On/Roll)Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9367580 |
|
Call sign |
9VHC2 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GRT |
51.917 t |
|
DWT |
17.386 t |
|
NRT |
15.576 t |
|
Length |
179,90 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 9,62 m |
|
Moulded L x B x D |
170,00 x 32,20 x 15,07 m |
|
Registered L x B x D |
170,01 x 32,20 x 21,62 m |
|
Freeboard |
Summer: 5.485 mm |
|
Depth |
15,07 m moulded |
|
Speed |
Max: 20,8 knots |
|
Built |
2008 |
|
Keel laid |
12/01/2008 |
|
Launch date |
13/05/2008 |
|
Date of completion |
21/08/2008 |
|
Builder |
Tsuneishi Holdings Corporation Tsuneishi Shipbuilding Company Tadotsu Factory Tokyo Japan |
|
Yard number |
1377 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui - 2 stroke 7 cylinder 600 x 2.4000 combustion engine 14.120 kW - 19.197 hp at 100, rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 610 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,70 MPa Evaporation: 3,36 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 3.725 kVA |
|
Number of cars |
5.195 |
|
Tank capacities |
Fuel oil: 3.325 m³ Fresh water: 440 m³ |
|
Operator |
Eukor Car Carriers Inc. |
|
Registered owner |
United PCTC Pte Ltd. 2 Shenton Way #11-01 SGX Centre Singapore City 068804 Republic of Singapore |
|
Latest data adjustment |
04 August 2023 |
