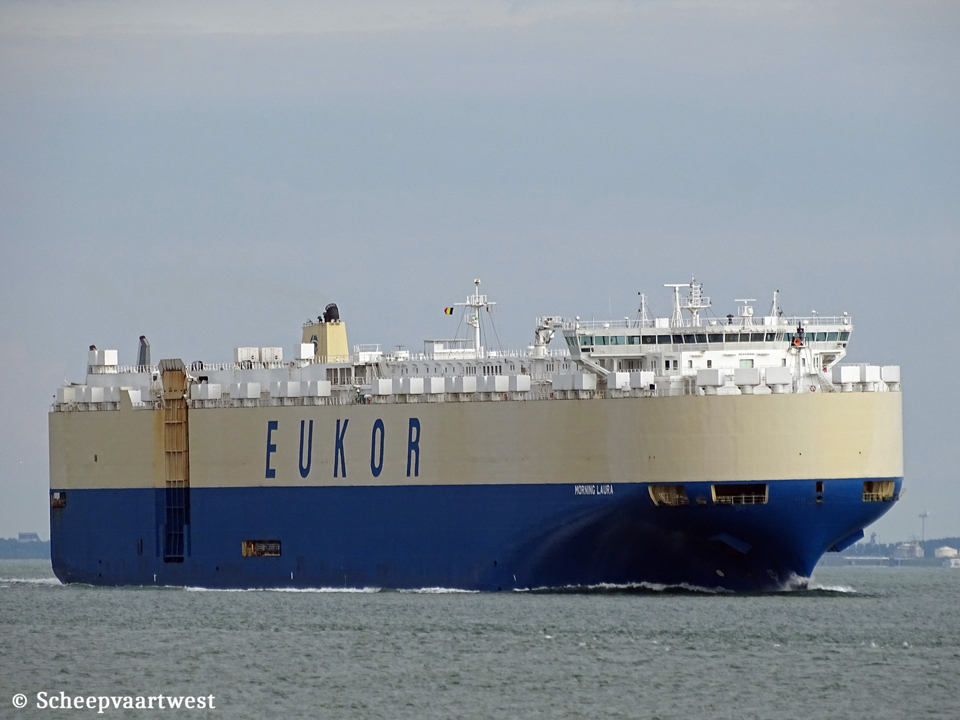

Westerschelde 29 June 2017 |
 |
|

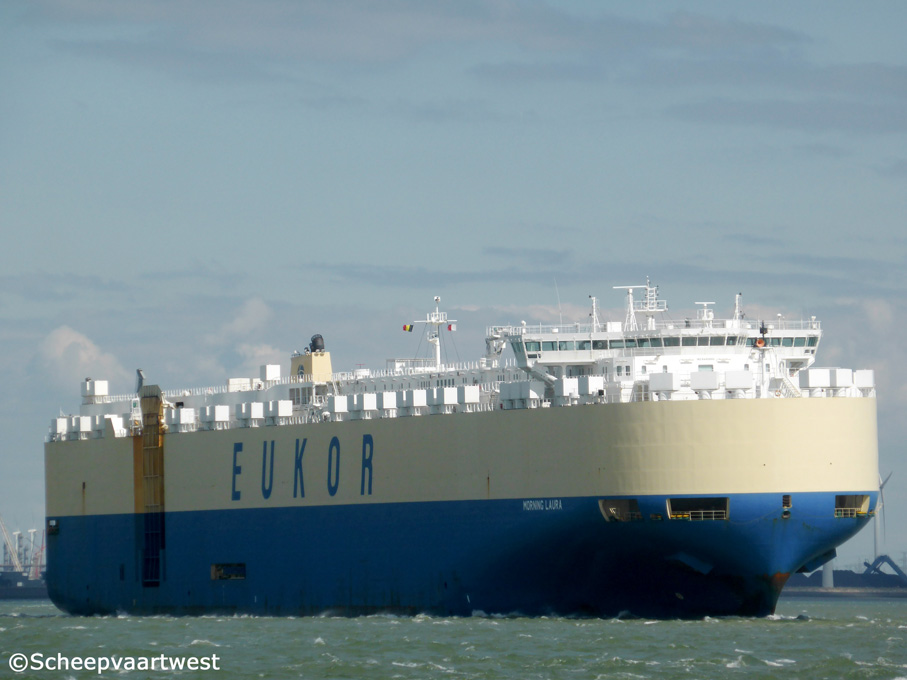

| Westerschelde 24/05/21 | |
|
Name |
MORNING LAURA |
|
Korean name |
모닝 로라 |
|
Type |
Roll-On/Roll-Off vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9445992 |
|
Call sign |
V7A3285 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flag |
10/2010 - 12/2020 Republic of Panama, Panama City - Call sign: 3FUO 12/2020 - 05/2025 South Korea, Jeju - Call sign: D8MO |
|
GT |
70.853 |
|
DWT |
27.297 t |
|
NT |
25.396 |
|
Length |
232,38 m overall |
|
Breadth |
32,26 m |
|
Draught |
10,01 m |
|
Reg. Dimensions L x B x D |
225,52 x 32,26 x 20,11 m |
|
Rule Dimensions L x B x D |
220,60 x 32,26 x 20,11 m |
|
Freeboard |
Summer: 3.020 mm |
|
Depth |
32,64 m |
|
Speed |
19,6 knots |
|
Built |
2010 |
|
Keel laid |
03/05/2010 |
|
Launch date |
23/07/2010 |
|
Date of completion |
07/10/2010 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
2054 |
|
Hull material |
Steel |
|
Watertight bulkheads |
3 |
|
Main engine |
1x MAN-B&W/HHI 7S60MC-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14.280 kW at 105,0 rpm Build: 04/2010 Builder: Hyundai Heavy Ind. Engine & Machinery Division , Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler WTB - 8,8 kg/cm² Heating surface: 24,0 m² 1x Economizer EGE - 11,7 kg/cm² Heating surface: 249,0 m² Built: 05/2010 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Hyundai/Himsen 6H25/33 diesel generatorsets each 1.331 kVA / 450 Volt |
|
Emergency generator |
1x Sisu 634 DSBIG diesel generatorset |
|
Bow thruster |
1x 2.000 kW |
|
Number of cars |
8.011 |
|
Tank capacities |
Fuel oil: 5.045,20 m³ Fresh water: 300,50 m³ Water ballast: 12.512,7 m³ |
|
Anchor equipment |
Length: 687,5 m Diameter: 894 mm |
|
Commercial manager |
EUKOR Car Carriers Inc. |
|
Technical manager |
Wilhelmsen Ship Management (Korea) Ltd. Pusan South Korea |
|
Registered owner |
Laura S.A. |
|
Previous owner |
2010 - 2020 2054 International SA 2020 - 2025 EUKOR Car Carriers Inc., Seoul - South Korea |
|
Latest data adjustment |
19 January 2025 |
