Parsifal IMO 9515395 10
Zeebrugge 20 April 2022

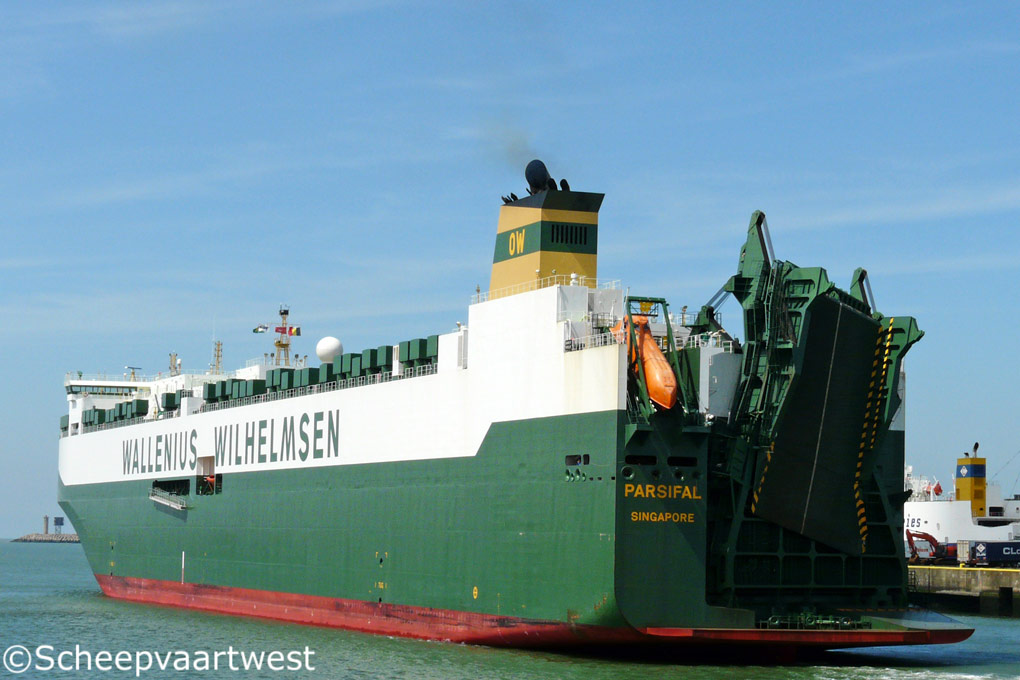

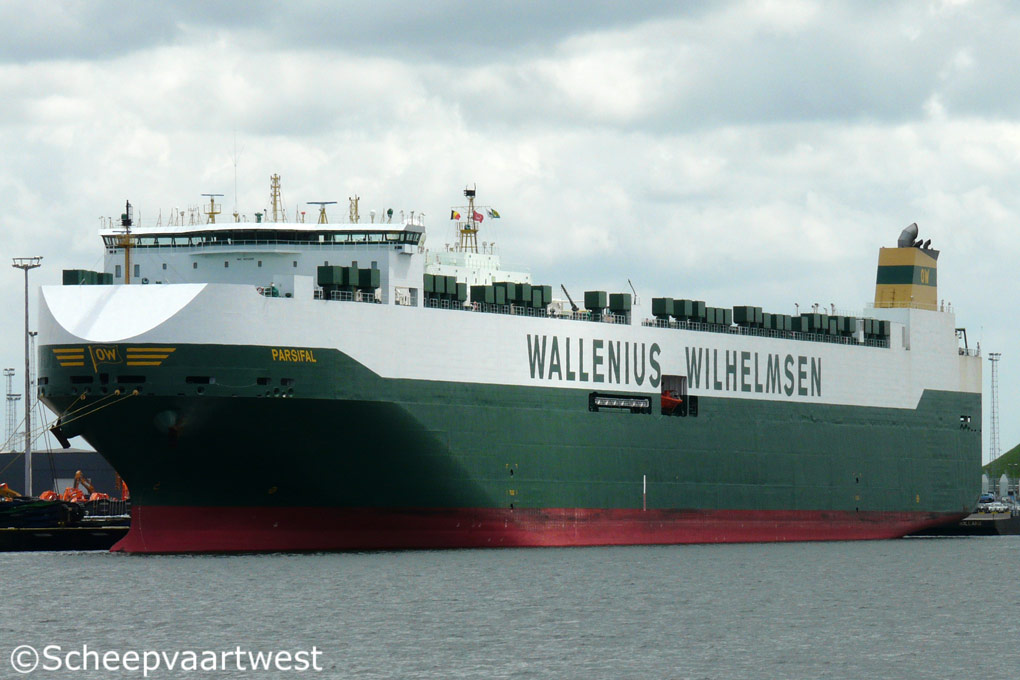

Parsifal 01   Parsifal 09
Zeebrugge 13/06/12 Zeebrugge 13/06/12



Name

PARSIFAL

Type

Roll-On/Roll-Off Carrier - Vehicle carrier

IMO-number

9515395

Call sign

9V9111

Flag

Republic of Singapore

Port of registry

Singapore

GT

74.622 t

DWT

41.554 t

NT

27.215 t

Length

265,00 m overall

250,00 m between perpendiculars

Breadth

32,273 m extreme

32,26 m moulded

Draught

Max.: 12,30 m

Keel to, mast end

53,70 m

Depth

To upperdeck: 33,22 m

Speed

20,2 knots

Built

2011

Keel laid

08/06/2010

Launch date

19/03/2011

Date of completion

26/08/2011

Builder

Mitsubishi Heavy Industries Ltd., Nagasaki Shipyard & Machinery Works

1-1 Akunouramachi

850-8610 Nagasaki City

Japan

Yard number

2263

Hull material

Steel

Main engine

1x Kawasaki/MAN-B&W 7L70MC - 2 stroke 7 cylinder combustion engine 20.100 kW / 27.328 hp at 95,0 rpm

Propeller

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, horizontal shell type - UNEX BH3000

2x Auxiliary boiler, steam heated steam generator - Mission WHR-TG - Q5 HP steam separator drum

Builder: Aalborg Industries

Shaft generator

1.100 kW

Generators

3x Daihatsu 6DC-32 main diesel generatorsets each 2.400 kW

Builder: Daihatsu Diesel Mfg. Co. Ltd Moriyama Factory

Steam turbine

Electric output 800 kW

Bow thruster

1x Transverse thrusters 2.200 kW

Number of car decks

9 (of which 3 are movable)

Car capacity

6000

RT 43 units (one RT43 gross unit ≈ 8.40 m²)

Total deck capacity

50.344 m²

Stern ramp

Width: 12,00 m

Height: 7,10 m

Capacity: 505 t

Tank capacities

Ballast: 16.082,8 m³

Anchor

Length: 687,50 m

Diameter: 87 mm

Crew

25

Commerical manager

Wallenius Marine Singapore Pte Ltd.

20-01, Fragrance Empire Building, 456, Alexandra Road,

Singapore 119962

Republic of Singapore

ISM manager

Wallenius Marine AB

Registered owner

WWL Shipowning Singapore Pte. Ltd.

Care of Wallenius Marine Singapore Pte Ltd.

20-01, Fragrance Empire Building, 456, Alexandra Road,

Singapore 119962

Republic of Singapore

Latest data adjustment

03 May 2022
