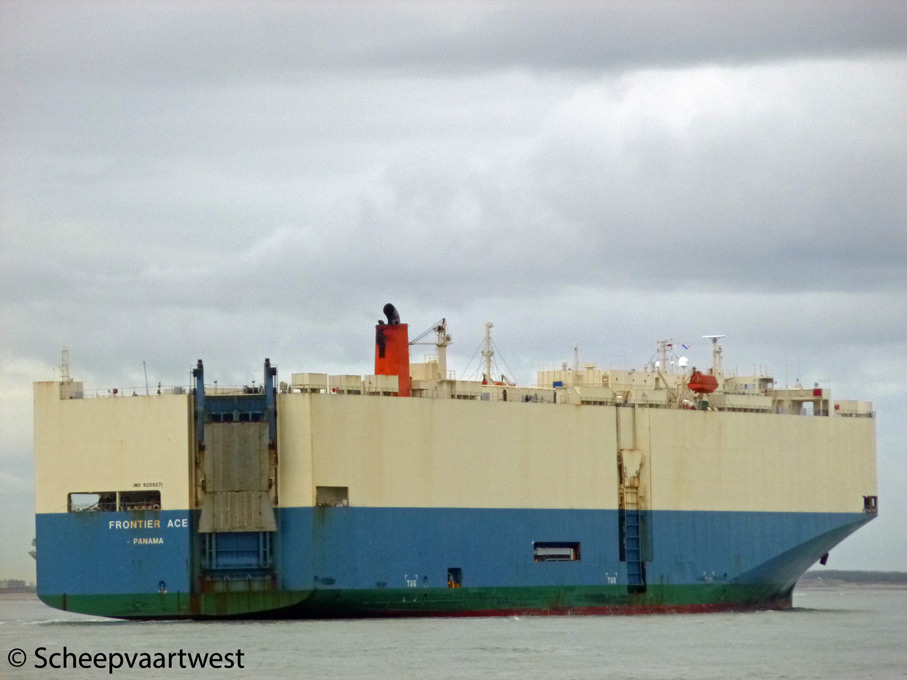

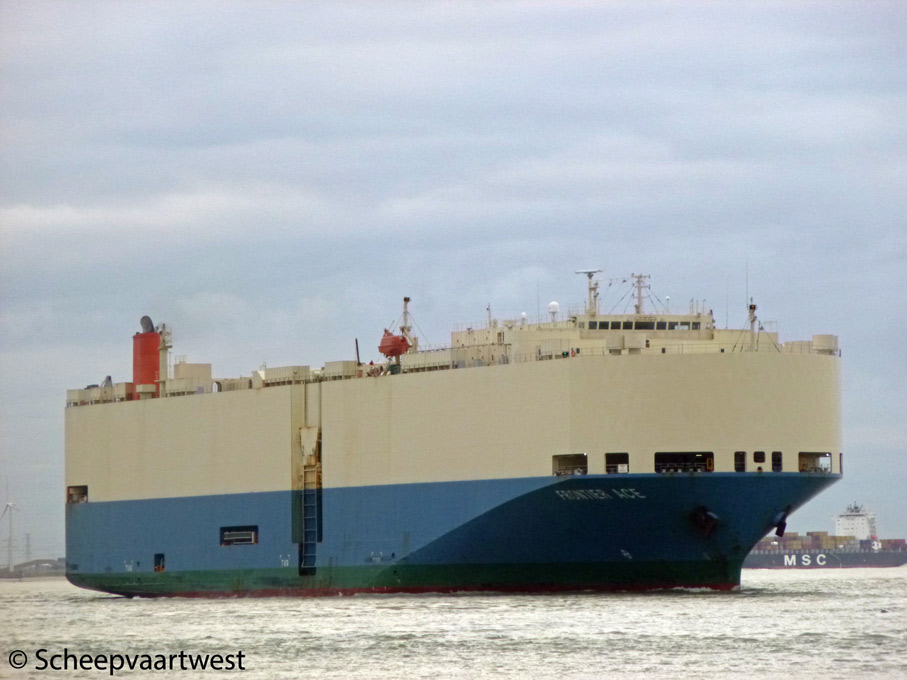

| Westerschelde 24 November 2013 |
 |
 |
|

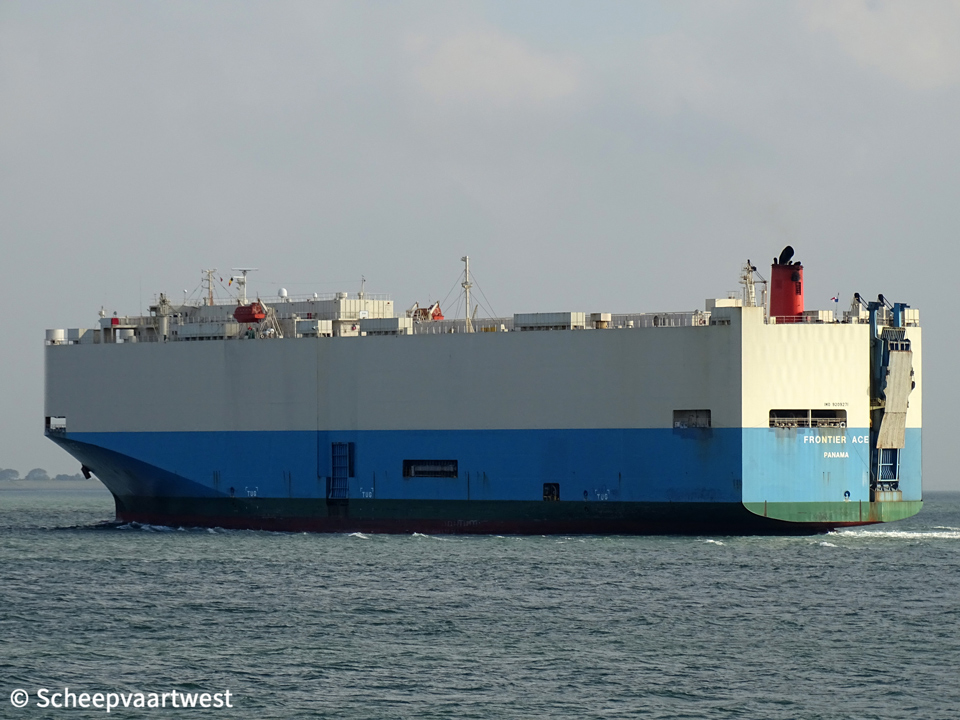

| Westerschelde 24/11/13 | Westerschelde 2710/16 | |
|
Name |
FRONTIER ACE |
|
Type |
Roll-On / Roll-Off vehicles carrier |
|
IMO-number |
9209271 |
|
Call sign |
7KSG |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
Previous flag |
Republic of Panama, Panama City - Call sign: H3CM |
|
GT |
52.308 |
|
DWT |
Summer: 17.693 t |
|
NT |
15.692 |
|
Length |
189,45 m overall |
|
Breadth |
32,20 m |
|
Draught |
Summer: 9,57 m |
|
Moulded L x B x D |
178,00 x 32,20 x 12,00 m |
|
Registered L x B x D |
181,80 x 32,20 x 21,25 m |
|
Freeboard |
Summer: 2.457 mm |
|
Depth |
12,00 m moulded |
|
Speed |
21,8 knots |
|
Built |
2000 |
|
Keel laid |
19/08/1999 |
|
Launch date |
22/01/2000 |
|
Date of completion |
27/03/2000 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
659 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Mitsui - 2 stroke single acting 7 cylinder 600 x 2.400 combustion engine 14.636 kW / 19.900 hp at 105,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 610 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,83 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets total 3.475 kVA |
|
Bow thruster |
1.040 kW |
|
Number of cars |
4.518 |
|
Tank capacities |
Fuel oil: 3.319 m³ Fresh water: 406 m³ Water ballast: 7.994 m³ |
|
Crew |
23 |
|
Commercial manager |
c/o Mitsui OSK Lines Ltd (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
ISM manager |
MOL Ship Management (Singapore) Pte. Ltd. 17-04, UIC Building, 5, Shenton Way, Singapore 068808 Republic of Panama |
|
Registered owner |
Aurora Car Maritime Transport S.A. c/o Mitsui OSK Lines Ltd (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
Latest data adjustment |
21 April 2025 |
