Friedrich Russ 05

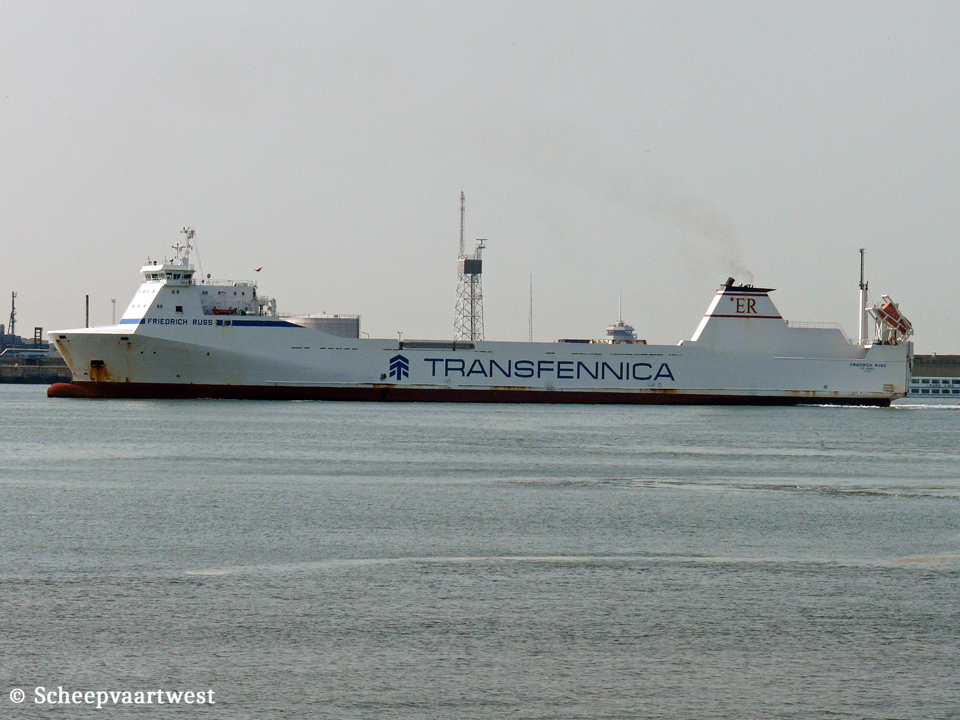

Zeebrugge 04 May 2008



Friedrich Russ 09   Friedrich Russ 10   Friedrich Russ 03   Friedrich Russ 13

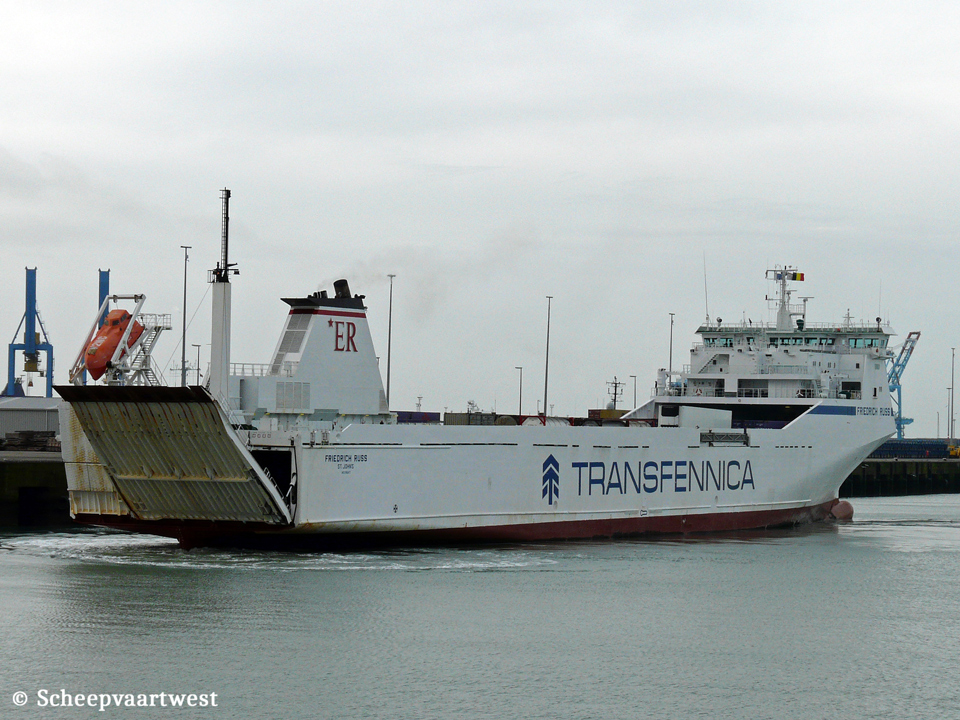

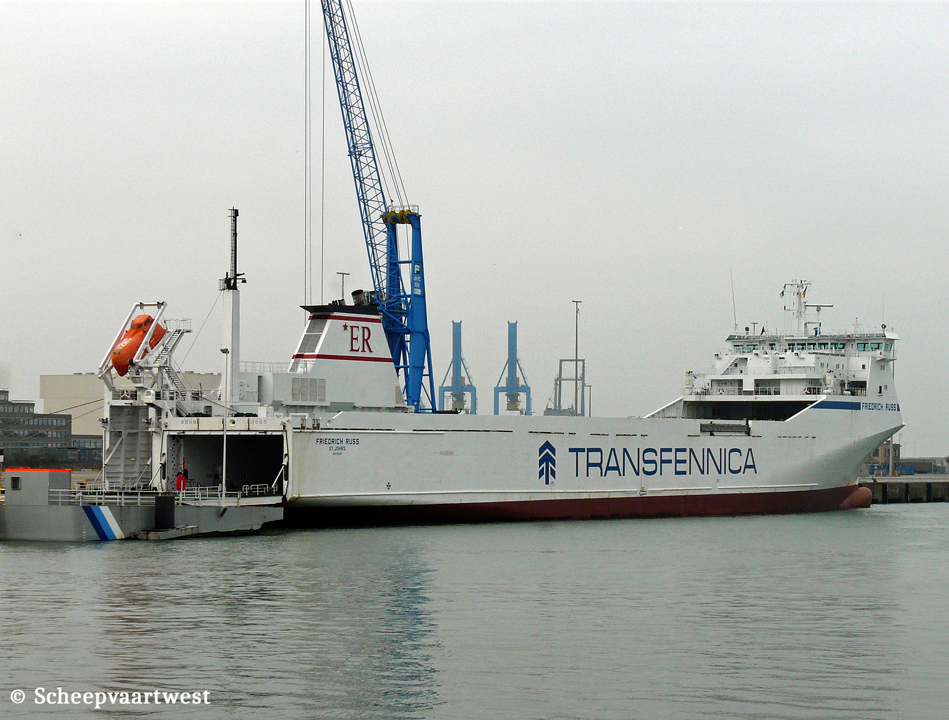

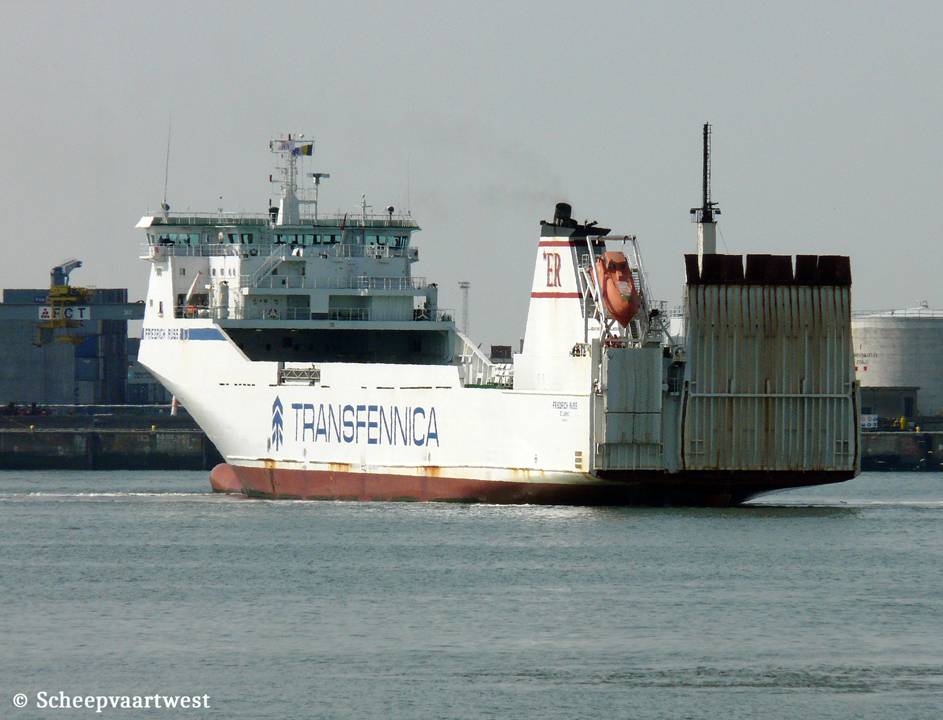

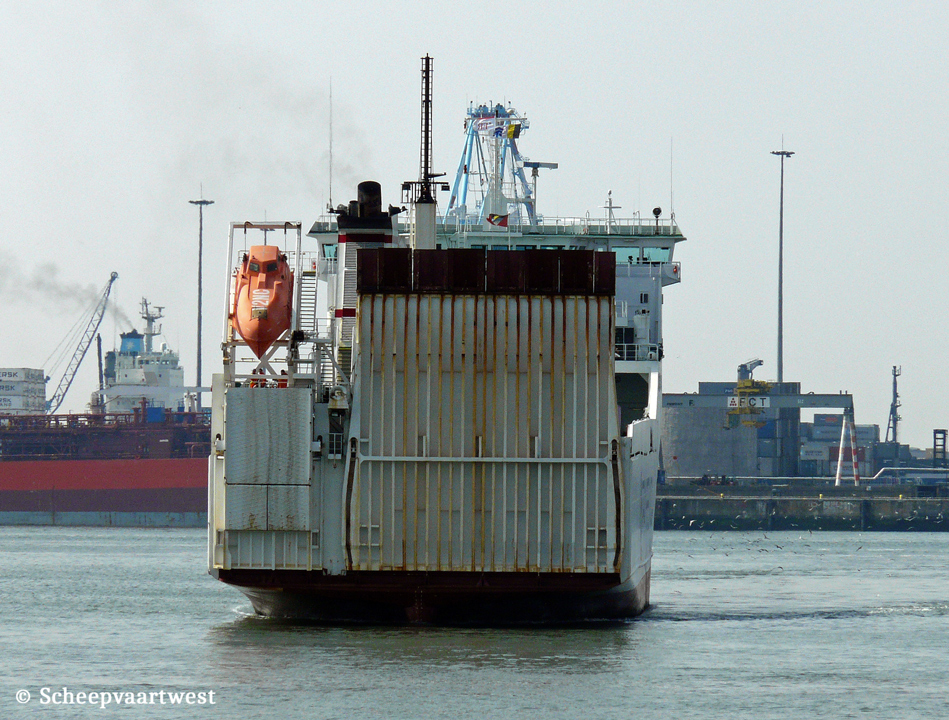

Zeebrugge 04/05/08 Zeebrugge 04/05/08 Zeebrugge 26/10/07 Zeebrugge 09/11/08



Name

FRIEDRICH RUSS

Location

Zeebrugge 04 May 2008 at entering the port direction quay 705 Sea-Ro Terminal/CdMC - Zweedse kaai

IMO-number

9186417

Official number

2316

Call sign

V2NC

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

10.471 t

DWT summer

7.291 t

NT

3.141 t

Number of 20ft containers

303

Nom. Feu cont. intake

141 Feu + 21 Teu

Number of reefer plugs

50

Length

153,40 m overall
142,10 m between perpendiculars

146,20 m registered

Breadth

20,60 m over all

Draught

Summer: 6,92 m

Lane metres

1.624

Forecastle

28,59 m

Freeboard

1.810 mm

Depth

8,42 m

Speed

20,0 knots

Built

1999

Keel laid

18.12.1997

Launch date

15.02.1999

Date of completed

01.03.1999

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1185

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Wärtsilä 16V46C - 4 stroke single acting 12 cylinder 460 x 580 mm engine - 14.995 hp / 12.600 kW

Built: 1998

Builder: Wärtsilä Diesel Oy, Staalarminkatu 45 20810 Turku - Finland

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 Bar

Year of manufacture: 1998

Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Heating surface: 58,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Year of manufacture: 1998

Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Heating surface: 146,0 m²

Electric installations

1x 380/220 V - 1.200 kVA

1x 380 V - 1.000 kVA

1x 380 V - 400 kVA

Shaft generator

1x 1000 kVA

Generators

2x Main diesel generatorsets each 600 kVA

Emergency generator

1x Diesel generatorset 400 kVA

Compressed air Receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 750 litres - 11,0 bar

Stern thruster

1x Fixed pitch propeller Kamewa - 495 kW aft

Bow thruster

1x Fixed pitch propeller Kamewa - 800 kW forward

Number of decks

2 decks
2 fixed stern ramps

Deck heights

Ro-Ro: 5,00 m
Lower deck: 4,60 m

Cargo capacity

Bale: 14.599 m³

Tank capacities

Ballast: 3.963 m³

Bunker: 798 t

Fuel oil: 840 m³

Anchor equipment

3x Anchors weight each 4.590 kg

Chain length: 550,00 m

Number of trailers

120

Drivers accommodation

12 drivers (6x2)

Manager

Ernst Russ GmbH & Co. KG
Alsterufer 10
20354 Hamburg
Federal Republic of Germany

Operator

OY Transfennica AB
12 Etelaranta
Helsinki
Finland

Reg. owner

MS Friedrich Russ Shipping Co Ltd (Antigua)

Owner

MS "FRIEDRICH RUSS" Schiffahrtsges. mbH & Co. KG
Alsterufer 10
20354 Hamburg
Federal Republic of Germany
