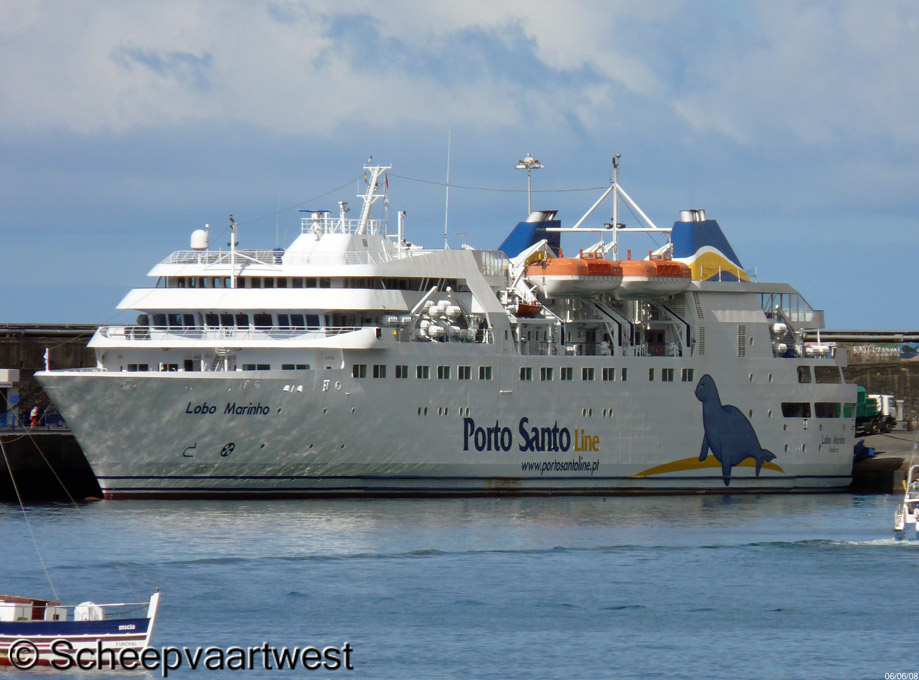

| Funchal, Madeira 06 June 2008 |
|
Name |
LOBO MARINHO |
|
Type |
Roll-On/Roll-Off Passenger ship - Ferry |
|
IMO number |
9267390 |
|
Call sign |
CQTW |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
8.072 |
|
DWT |
1.589 t |
|
NT |
2.421 |
|
Length |
111,70 m overall 98,15 m between perpendiculars |
|
Breadth |
19,98 m moulded 20,04 m extreme |
|
Draught |
5,00 m |
|
Lanemetres |
101 m |
|
Freeboard |
2.016 mm |
|
Depth |
7,00 m to main deck 12,00 m moulded |
|
Speed |
Max: 21,43 knots |
|
Route |
Funchal - Porto Santo |
|
Built |
2003 |
|
Keel laid |
28/01/2002 |
|
Launch date |
13/12/2002 |
|
Delivery date |
26/05/2003 |
|
Builder casco |
Baltiyskiy Zavod Shipyard St Petersburg Russia |
|
Outfitting yard |
ENVC - Estaleiros Navais de Viana do Castelo Viana do Castelo Portugal |
|
Yard number |
C237 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
12x Watertight longitudinal Schoenrock Hydraulik |
|
Number of decks |
8 |
|
Main engine |
2x MaK 16M32C- 4 stroke 16 cylinder 320 x 420 mm combustion engines each 8 000 kW / 10.727 bhp at 750 rpm Total 16.000 kW / 21.744 bhp Build: 2002 Builder: Caterpillar Motoren Gmnh & Co. KG Kiel Germany |
|
Number of screws |
2x Controllable pitch propeller - aft at 246 rpm Diameter: 3.300 mm |
|
Boilers |
2x CHO KV Independent auxiliary boiler - 3,6 bar |
|
Electrical installation |
Power voltage: 380 VAC 50 Hz Lighting voltage: 220 VAC 50 Hz Safety: 24 VDC |
|
Generators |
3x Volvo Penta main diesel generatorsets each 1.170 kVA - 936 kW - 1.508 hp 1x Diesel generatorset 415 kVA - 332 kW - 516 hp |
|
Bow thruster |
Lips 500 kW |
|
Number of cars |
145 cars or 100 cars & 14 lorries |
|
Stern door |
10,00 x 5,00 m |
|
Passenger capacity |
1.153 Passengers |
|
Tank capacities |
Ballast: 1.002,6 m³ Diesel oil: 277 m³ Lub oil: 41 m³ Fresh water: 280 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 46 mm |
|
ISM & commercial manager |
Steer Mar - Shipmanagement Services Lda. 3rd Floor, Largo dos Varadouros 4 9000-503 Funchal Madeira |
|
Registered owner |
Porto Santo Line Transportes Maritimos Lda. Rua da Praia 6 9000-503, Funchal Madeira |
|
Latest data adjustment |
11 June 2025 |
