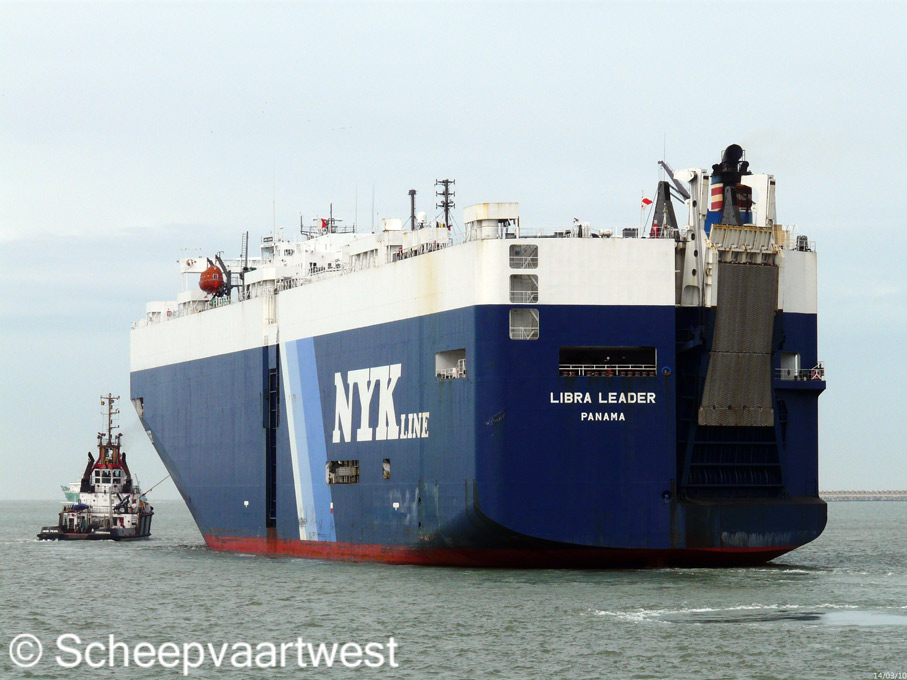

| Zeebrugge 28 June 2010 |
 |
 |
 |
 |
 |
||||
| Zeebrugge 28/06/10 | Zeebrugge 14/03/10 | Zeebrugge 13/03/10 | Westerschelde 13/08/14 | Westerschelde 26/04/17 | ||||
|
Name |
LIBRA LEADER |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9174490 |
|
Call sign |
5LKH4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
1998 - 2016 Republic of Panama, Panama City - Call sign: 3FZZ8 2016 - 05/2023 Japan, Tokyo - Call sign: 7JWQ |
|
GT |
57.674 |
|
DWT |
22.734 t |
|
NT |
17.474 |
|
Length |
199,99 m overall |
|
Breadth |
32,29 m overall |
|
Moulded L x B x D |
190,00 x 32,26 x 15,27 m |
|
Registered L x B x D |
192,88 x 32,26 x 23,68 m |
|
Draught |
Summer: 10,02 m |
|
Freeboard |
Summer: 5.285 mm |
|
Depth |
15,27 m moulded |
|
Speed |
Service: 19,3 knots Trail: 20,8 knots |
|
Built |
1998 |
|
Keel laid |
12/05/1998 |
|
Launch date |
16/09/1998 |
|
Date of completion |
22/12/1998 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Onichi Japan |
|
Yard number |
2980 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60S - 2 stroke single acting 8 cylinder 600 x 2.200 mm combustion engine 14.121 kW / 19.200 hp at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 610 mm |
|
Propeller |
1x Fixed pitch propeller |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,27 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.425 kW |
|
Car capacity |
5.055 |
|
Ramps |
1x 150 t 3x 30 t |
|
Liftable decks |
5 |
|
Tank capacities |
Fuel oil: 3.484 m³ Fresh water: 456 m³ Water ballast: 9.302 m³ |
|
Crew |
21 |
|
ISM & commercial manager |
Hachiuma Steamship Co., Ltd. 7th Floor, Da Vinci Sannomiya Building, 74, Kyo-machi, Chuo-ku, Kobe-shi, Hyogo-ken, 650-0034 Japan |
|
Operator |
NYK line - Nippon Yusen Kaisha Line |
|
Registered owner |
Matsueri Maritima SA c/o Hachiuma Steamship Co Ltd (Hachiuma Kisen KK) 7th Floor, Da Vinci Sannomiya Building, 74, Kyo-machi, Chuo-ku, Kobe-shi Hyogo-ken, 650-0034 Japan |
|
Latest data adjustment |
11 June 2025 |
