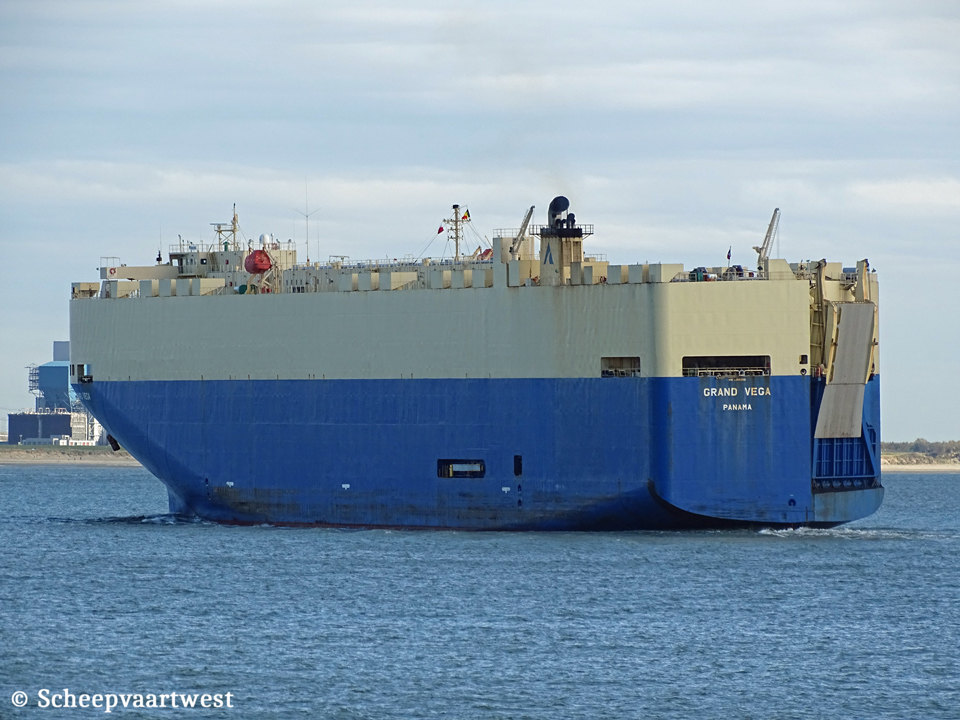

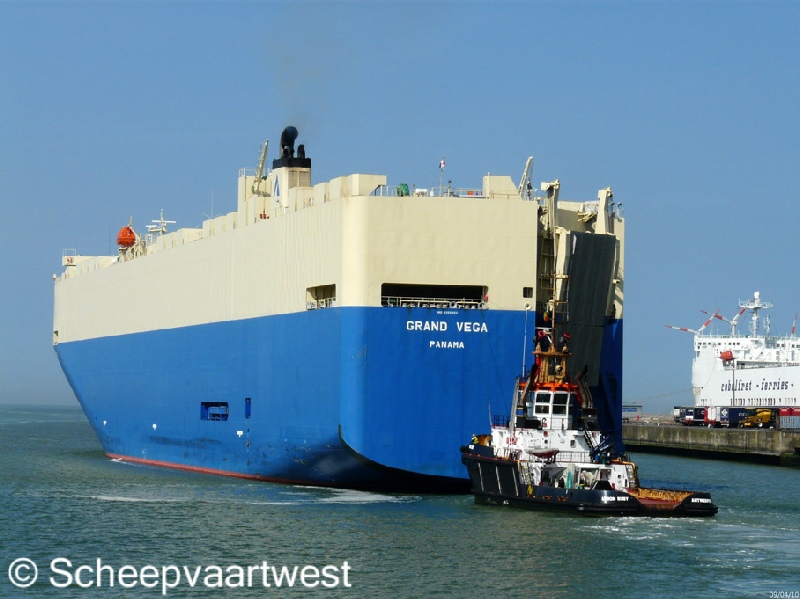

Grand Vega 03
Zeebrugge 09 April 2010

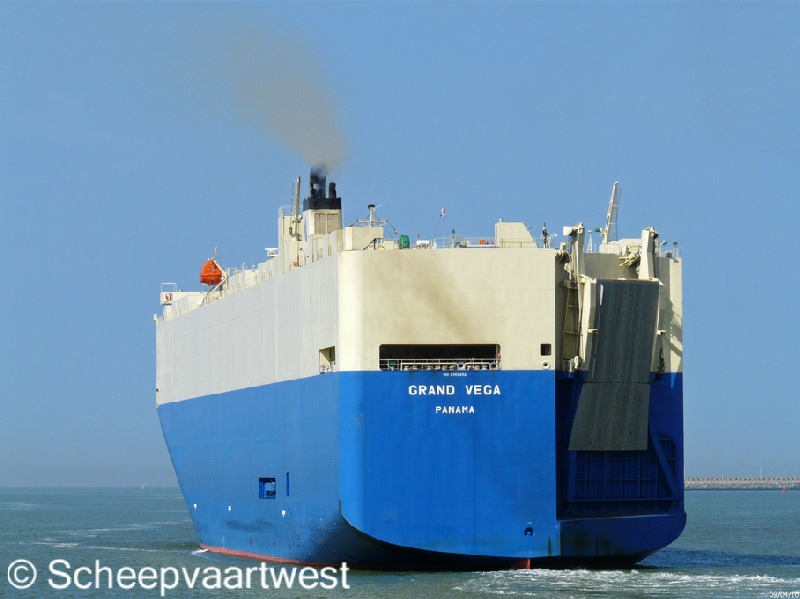

Grand Vega 05
09/04/10



Name

GRAND VEGA

Type

Vehicles carrier

PCC - Pure car carrier

IMO-number

9355252

Call sign

3FWB5

Flag

Republic of Panama

Port of registry

Panama City

GT

59.217 t

DWT

18.049 t

NT

17.766 t

Length

199,90 m overall

Breadth

32,26 m

Reg. Dimensions L x B x D

194,70 x 32,26 x 25,33 m

Rule Dimensions L x B x D

192,00 x 32,26 x 35,80 m

Draught

Summer: 9,625 m

Freeboard

Summer: 4.664 mm

Speed

20,6 knots

Built

2009

Keel laid

10.10.2008

Launch date

09.02.2009

Date of completion

25.05.2009

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.
Toyohashi
Japan

Yard number

3618

Transverse bulkheads

5x Watertight

Main engine

1x Mitsui - 2 stroke single acting 7 cylinder 600 x 2.292 mm engine - 14.280 kW at 105,0 rpm

Built: 2008

Builder: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works
Tamano
Japan

Boilers

1x Auxiliary Steam Tube Boiler - 6,9 bar

Heating surface:171,20 m²

Built: 2008

Builder:Tortoise Engineering Co., Ltd.
Ehime

Japan

Generators

4x Main diesel generatorsets each - 1.200 kVA 450 Volt

Number of decks

9

Tank capacities

Fuel oil: 3.132.70 m³

Fresh water: 466.00 m³

Water ballast: 10.155.20 m³

Crew

22

Manager

Cido Shipping(Korea) Co., Ltd.
1213-3 Choryang 1 - Dong
Dong-Ku

Busan
South Korea

Technical Manager

Cido Shipping(Korea) Co., Ltd. (Pusan Site)

Operator

NYK - Nippon Yusen Kaisha Line

Owner

Dynamic Athlete Shipping S.A.
