| Westerschelde 19 November 2019 |
|
Name |

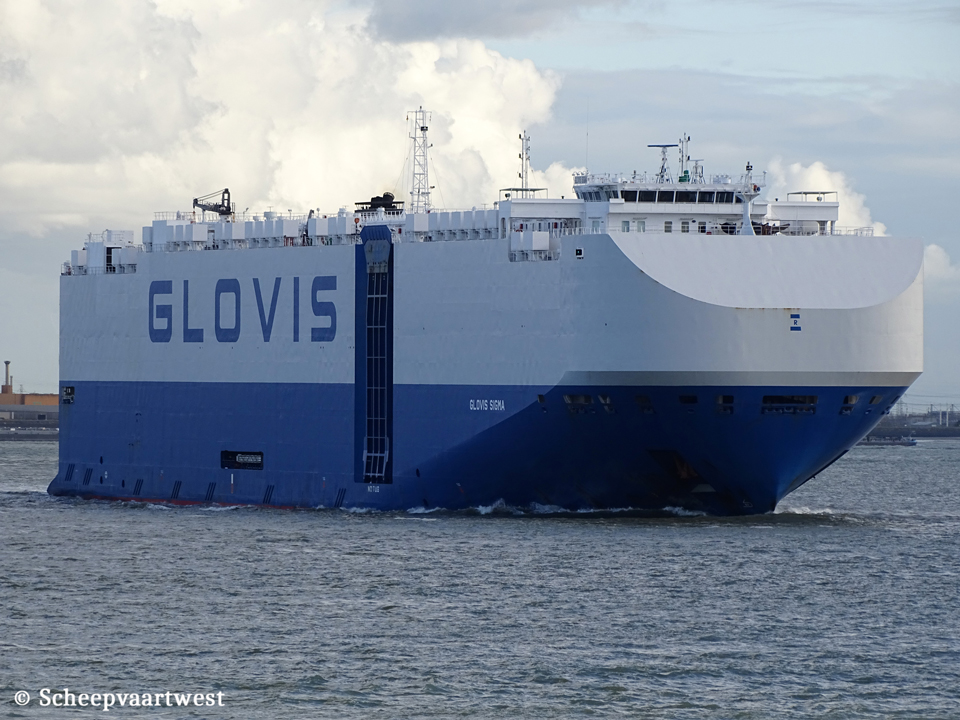

GLOVIS SIGMA |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9736810 |
|
Call sign |
C6CF6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
71.177 |
|
DWT |
20.900 t |
|
NT |
25.578 |
|
Length |
199,97 m overall 188,70 m between perpendiculars |
|
Breadth |
35,43 m extreme |
|
Draught |
Summer: 10,62 m |
|
Depth |
36,25 m |
|
Speed |
Max: 22,0 knots Service: 19,5 knots |
|
Built |
2016 |
|
Keel laid |
26/05/2014 |
|
Launch date |
19/02/2016 |
|
Date of completion |
28/07/2016 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. South Korea |
|
Yard number |
8150 |
|
Hull material |
Steel |
|
Main engine |
1x Hyundai/MAN-B&W 7G60ME-C9.2 - 2 stroke 7 cylinder 600 x 2.790 mm combustion engine 12.957 kW / 17.576 hp at 80,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
Auxiliary boiler, oil/gas fired Auxiliary boiler, exhaust gas heated |
|
Generators |
4x Hyundai/Himsen 7H25/33 main diesel generatorsets Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Thrusters |
1x 2.150 kW, forward 1x 1.250 kW, stern |
|
Number of ramps |
2 |
|
Car capacity |
7.700 |
|
Tank capacities |
Ballast: 9.841,7 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 87 mm |
|
Commercial manager |
Ray Shipping Ltd. 32, Hamasger Street 67211 Tel-Aviv Israel |
|
ISM manager |
Stamco Ship Management Co., Ltd. 21, Akti Miaouli 185 35, Piraeus Greece |
|
Registered owner |
Sigma Maritime Ltd. Care of Ray Shipping Ltd. 32, Hamasger Street 67211 Tel-Aviv Israel |
|
Latest data adjustment |
28 April 2025 |
