| Zeebrugge 06 May 2022 |
|
Name |

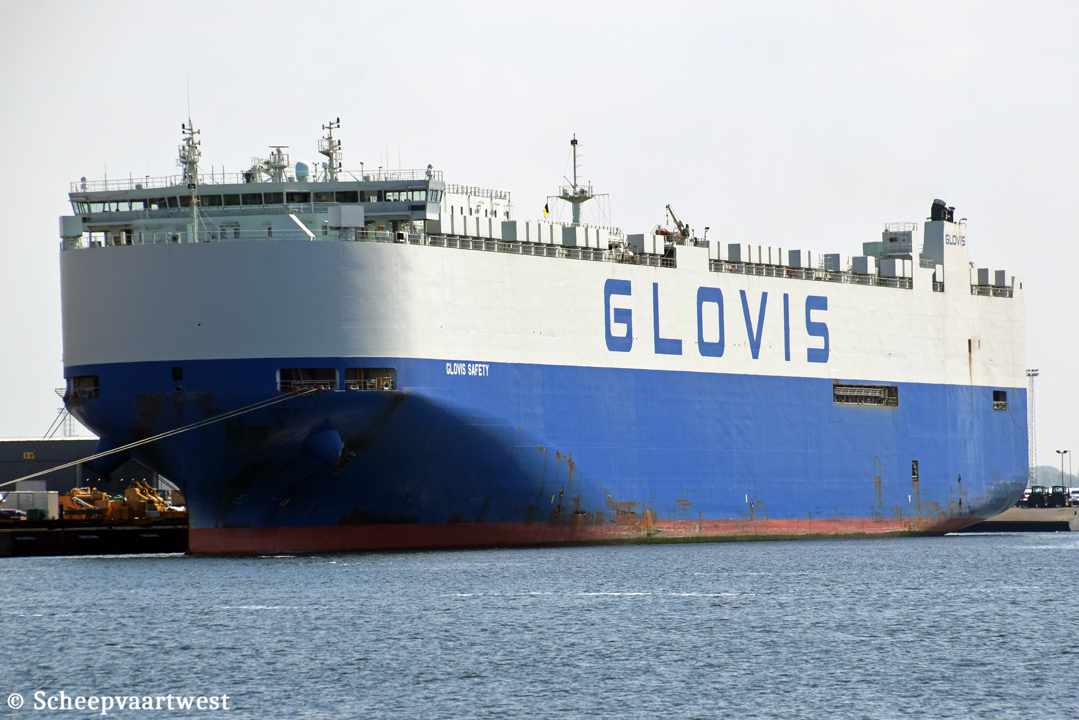

GLOVIS SAFETY |
|
Type |
Roll-On/Roll-Off car carrier moored at quay 530 |
|
IMO-number |
9798399 |
|
Call sign |
V7DS5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
72.376 |
|
DWT |
25.353 t |
|
NT |
23.403 |
|
Length |
229,97 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,27 m |
|
Reg. Dimensions L x B x D |
224,52 x 32,26 x 21,95 m |
|
Rule Dimensions L x B x D |
223,50 x 32,26 x 35,09 m |
|
Keel to mast end |
46,00 m |
|
Freeboard |
3.050 mm |
|
Depth |
35,09 m |
|
Speed |
Max: 20,0 knots |
|
Built |
2017 |
|
Date of completion |
29/06/2017 |
|
Keel laid |
23/12/2015 |
|
Launch date |
01/04/2017 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Yeongam South Korea Build: 01/12/2016 Builder:Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Yard number |
S888 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.780 kW / 18.735 hp at 102,0 rpm Build: 03/01/2017 Builder: HD Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Boiler WTB - 8,8 kg/cm² Heating surface: 31,8 m² 1x Economizer EGE - 12,7 kg/cm² Heating surface: 482,2 m² |
|
Generators |
3x Main diesel generatorsets each 1.663 kVA - 450 Volt |
|
Number of cars |
7.409 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 3.211,1 m³ Fresh water: 342,6 m³ Water ballast: 8.804,7 m³ |
|
Crew |
24 |
|
Commercial manager |
Hyundai Glovis Co., Ltd. 83-21, Wangsimni-ro, Seongdong-gu Seoul South Korea |
|
ISM managers |
G-Marine Service Co., Ltd. 331, Jungang-daero, Dong-gu Busan, 48792 South Korea |
|
Registered owners |
GL NV21 Shipping Inc. Care of Hyundai Glovis Co Ltd. 83-21, Wangsimni-ro, Seongdong-gu Seoul South Korea |
|
Latest data adjustment |
28 April 2025 |
