Olympian Highway IMO 9757993 01
Zeebrugge 14 May 2022

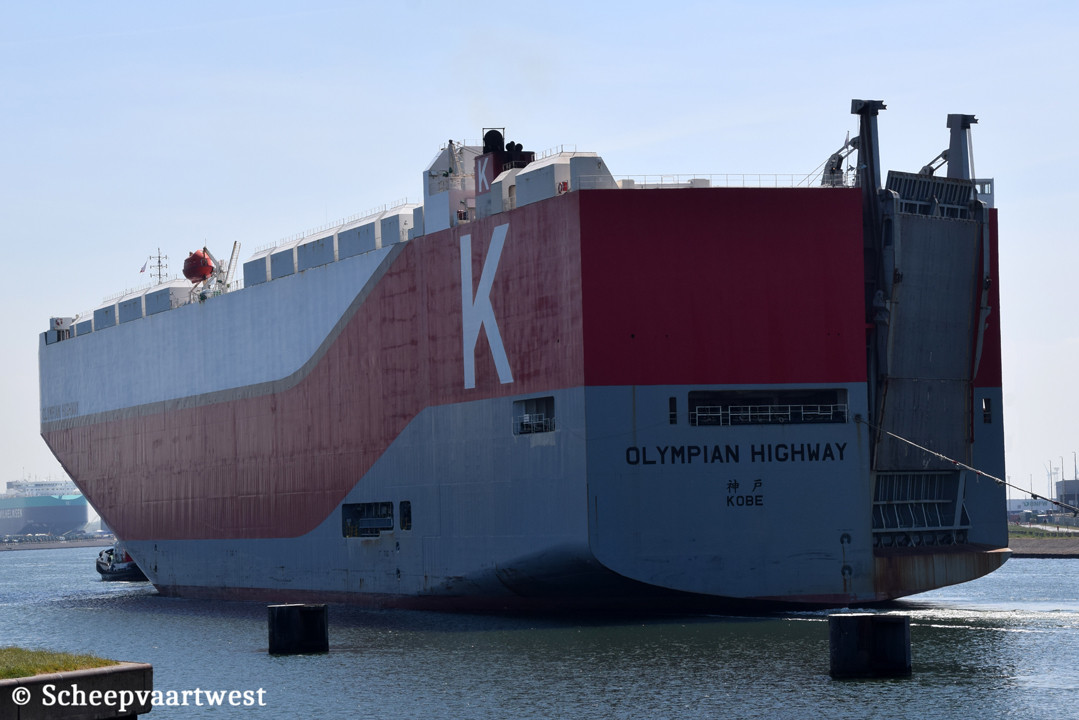

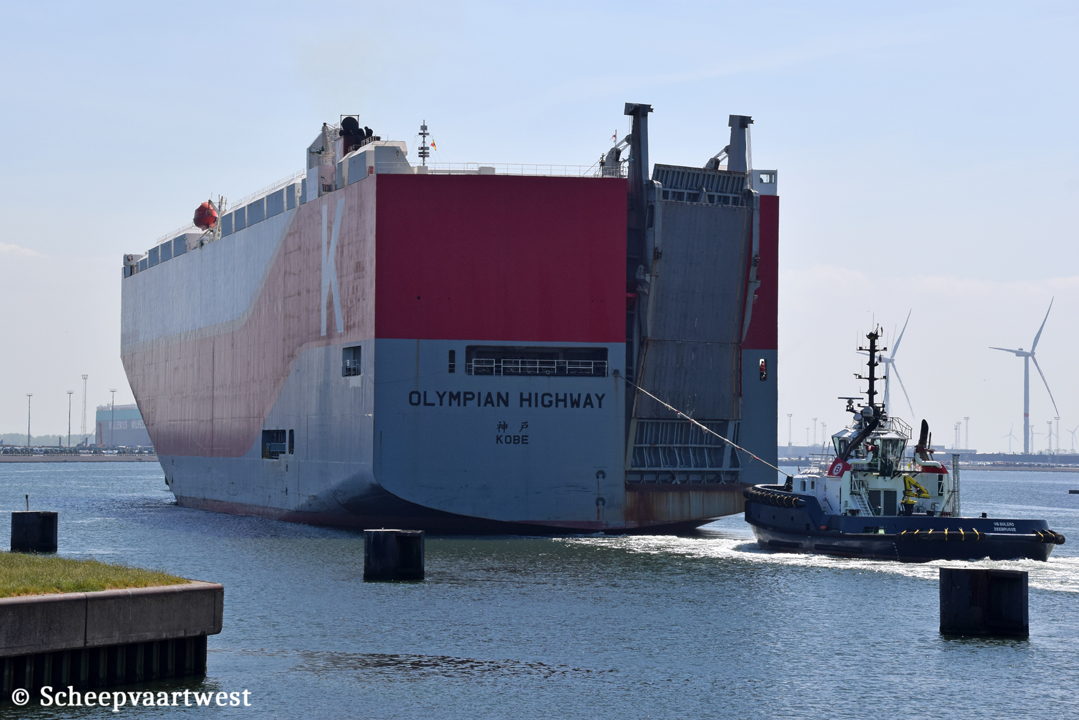

Olympian Highway IMO 9757993 03   Olympian Highway IMO 9757993 04
Zeebrugge 14/05/22   Zeebrugge 14/05/22













Name

OLYMPIAN HIGHWAY

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9757993

Call sign

7KAS

Flag

Japan

Port of registry

Kobe

GT

75.185 t

DWT

20.445 t

NT

23.934 t

Length

199,36 m

Breadth

38,00 m moulded

Draught

Summer: 10,23 m

Moulded L x B x D

196,00 x 38,00 x 14,65 m

Registered L x B x D

196,00 x 38,00 x 21,92 m

Freeboard

Summer: 4.465 mm

Depth

14,65 m moulded

21,90 m registered

Speed

Max: 21,4 knots

Built

2017

Keel laid

01/12/2015

Launch date

12/05/2017

Date of completion

21/09/2017

Builder

Shin Kurushima Dockyard Co., Ltd.

Japan

Yard number

5918

Hull material

Steel

Main engine

1x Mitsubishi 7UEC60LSE-Eco-A2 - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 13.200 kW / 17.947 hp at 104,0 rpm

Manufacturer: Kobe Diesel Co., Ltd - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 640 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler (Composite) - 0,79 MPa

Evaporation: 4,43 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 4.750 kVA

Number of cars

7.539

Number of ramps

2

Tank capacities

Fuel oil: 3.042,72 m³

Fresh water: 806,58 m³

Crew

25

Commercial manager

Kawasaki Kisen Kaisha Ltd.

Iino Building, 1-1, Uchisaiwai-cho 2-chome, Chiyoda-ku

Tokyo, 100-8540

Japan

ISM manager

"K" Line RoRo Bulk Ship Management Co., Ltd.

2-3, Kaigan-dori 2-chome, Chuo-ku, Kobe-shi, Hyogo-ken, 650-0024

Japan

Registered owner

Atlantic Lease Co Ltd. - Japan

Care of Kawasaki Kisen Kaisha Ltd (Kawasaki Kisen KK) ('K' Line)

Iino Building, 1-1, Uchisaiwai-cho 2-chome, Chiyoda-ku

Tokyo, 100-8540

Japan

Latest data adjustment

17 June 2022
