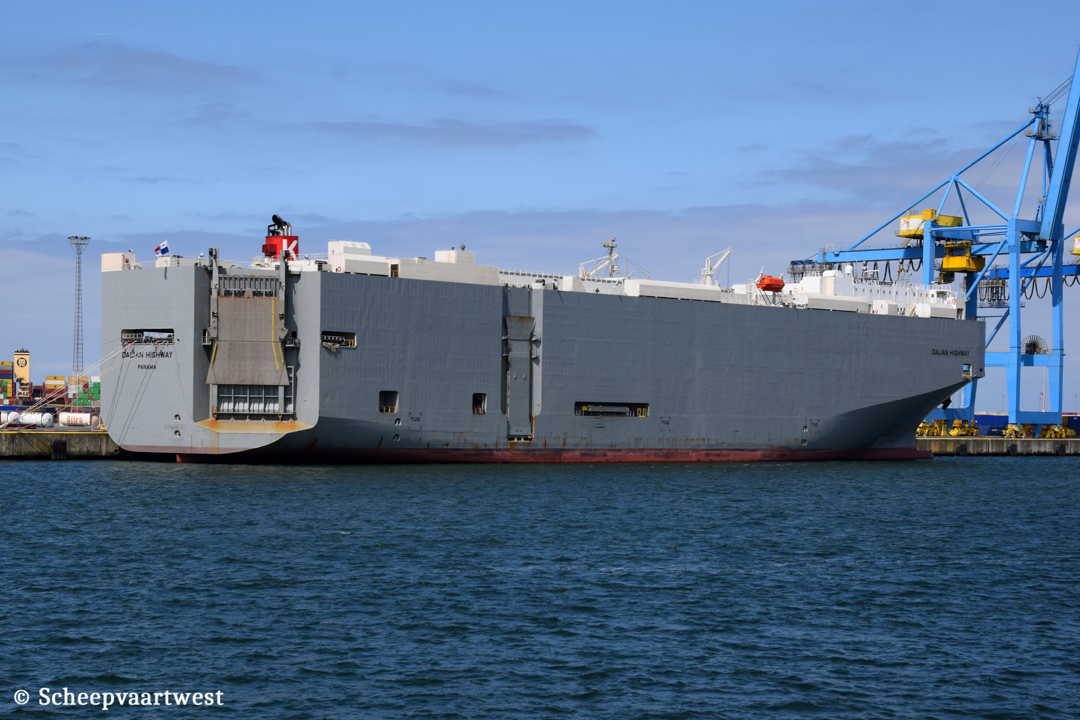

Dalian Highway IMO 9565590 02
Zeebrugge 27 April 2022

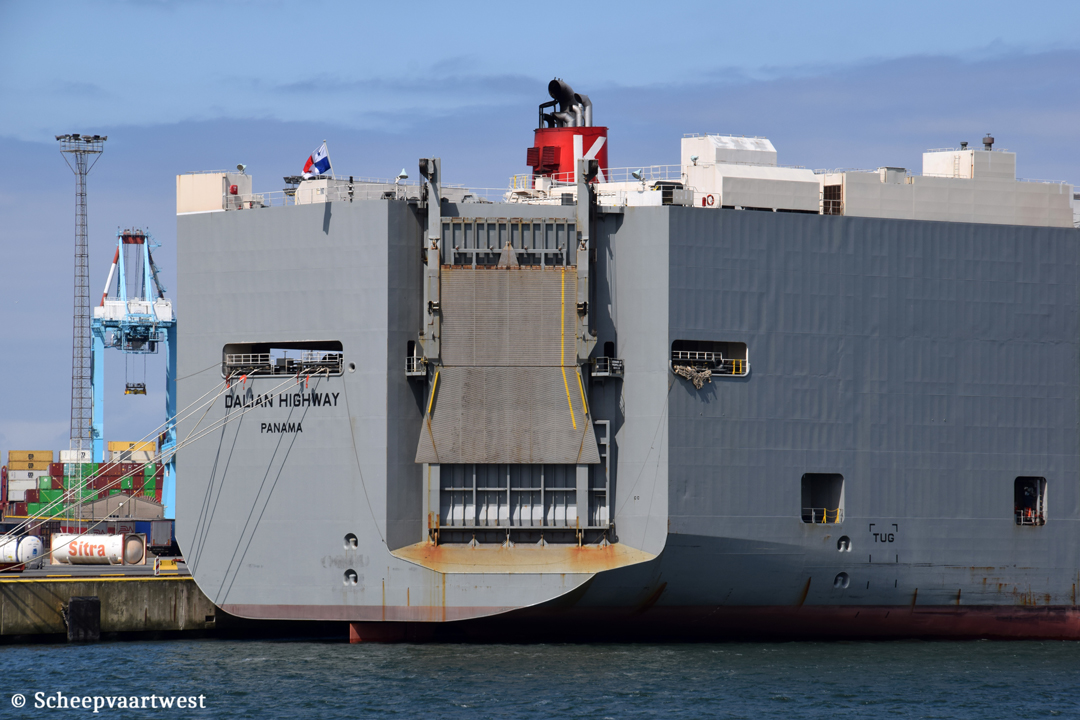

Dalian Highway IMO 9565590 04
Zeebrugge 27/04/22













Name

DALIAN HIGHWAY

Type

Roll-On/Roll-Off carrier - Vehicles carrier

PCC - Pure Car carrier

IMO-number

9565560

Call sign

3FYE5

Flag

Republic of Panama

Port of registry

Panama City

GRT

58.535 t

DWT

21.616 t

NRT

17.561 t

Length

199,94 m overall

Breadth

32,26 m moulded

Draught

Summer: 10,02 m

Moulded L x B x D

190,00 x 32,26 x 15,00 m

Registered L x B x D

193,11 x 32,26 x 23,75 m

Freeboard

Summer: 5.014 mm

Depth

15,00 m moulded

Speed

Max: 22,0 knots

Built

2011

Keel laid

22/06/2010

Launch date

27/12/2010

Date of completion

28/04/2011

Builder casco

Nantong Cosco KHI

Nantong

China

Builder completion

Kawasaki Heavy Industries, Ltd.

Japan

Yard number

NE079

Hull material

Steel

Main engine

1x 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.200 kW / 17.950 bhp at 89,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 630 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 0,80 MPa

Evaporation: 4,45 t/h

Manufacturer: Aalborg Industries Limited

Generators

4x Generatorsets total 5.065 kVA

Number of cars

6.200

Tank capacities

Fuel oil: 3.340 m³

Fresh water: 790 m³

Crew

24

Manager

"K" Line RoRo Bulk Ship Management Co., Ltd.

Registered owner

Rockfish Marine SA

Latest data adjustment

02 May 2022
