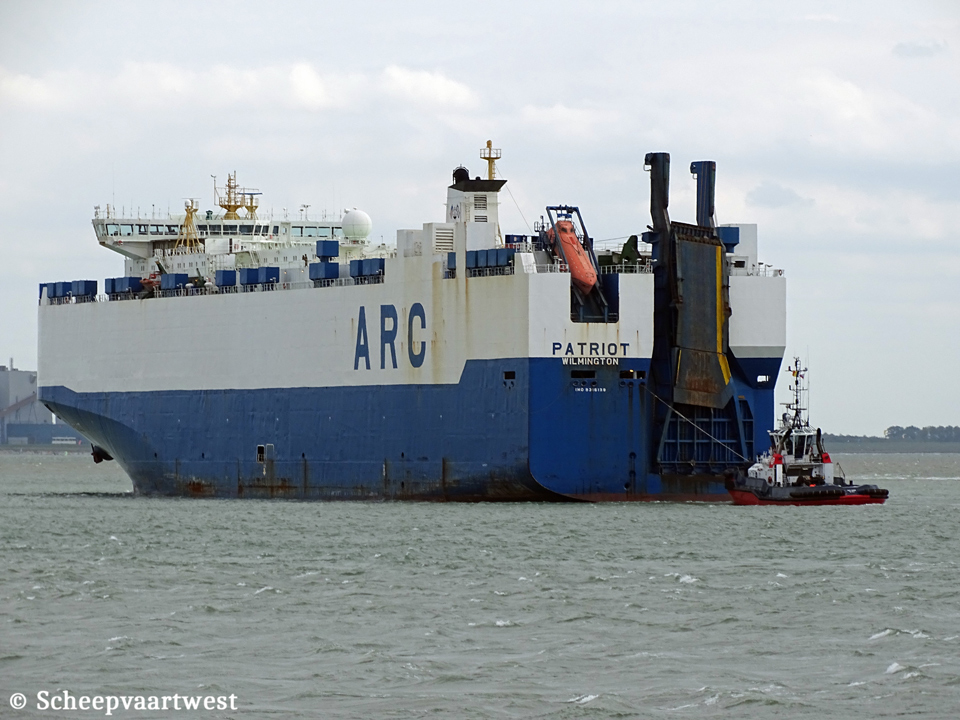

| Westerschelde 30 June 2019 |
 |
 |
|
| Westeschelde 13/10/19 | Westeschelde 13/10/19 | |
|
Name |
PATRIOT |
|
Previous names |
2006 - 08/2016 Aida |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure car and truck carrier |
|
IMO-number |
9316139 |
|
Call sign |
WAIU |
|
Flag |
United States of America (Alaska) |
|
Port of registry |
Wilmington |
|
Previous flags |
2006 - 2016 Sweden, Stockholm - Call sign SBLI |
|
GT |
60.942 t |
|
DWT |
22.467 t |
|
NT |
48.704 t |
|
Length |
199,00 m overall |
|
Breadth |
32,29 m overall 32,26 m moulded |
|
Draught |
11,30 m |
|
Air draft |
51,98 m |
|
Depth |
34,70 m to upper deck |
|
Speed |
20,4 knots |
|
Built |
2006 |
|
Date of completion |
26/05/2006 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Goeje South Korea |
|
Yard number |
4442 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 7S60MC-C- 7 cylinder combustion engine 21.490 bhp at 105,0 rpm |
|
Propellers |
1 |
|
Shaft generator |
1x 1.000 kW |
|
Generators |
2x STX/MAN-B&W SL21/31 main diesel engines connected with 2 generators each 1.400 kW / 3x450 Volt, 60 Hz |
|
Emergency generator |
1x Diesel generatorset 215 kW |
|
Capacity of car units |
6.700 |
|
Capacity of cars / buses |
3.000 / 400 |
|
Capacity deck area |
56.430 m² |
|
Number of car decks |
13 |
|
Hoistable decks |
5 |
|
Stern ramp |
Width: 7,00 m Height: 6,50 m Ramp capacity: 125 t |
|
Crew |
23 |
|
Manager |
American Roll-On Roll-Off Carrier, LLC 816 A1A N., Suite 101, Ponte Vedra Beach, FL 32082 USA |
|
Latest data adjustment |
23 January 2022 |
