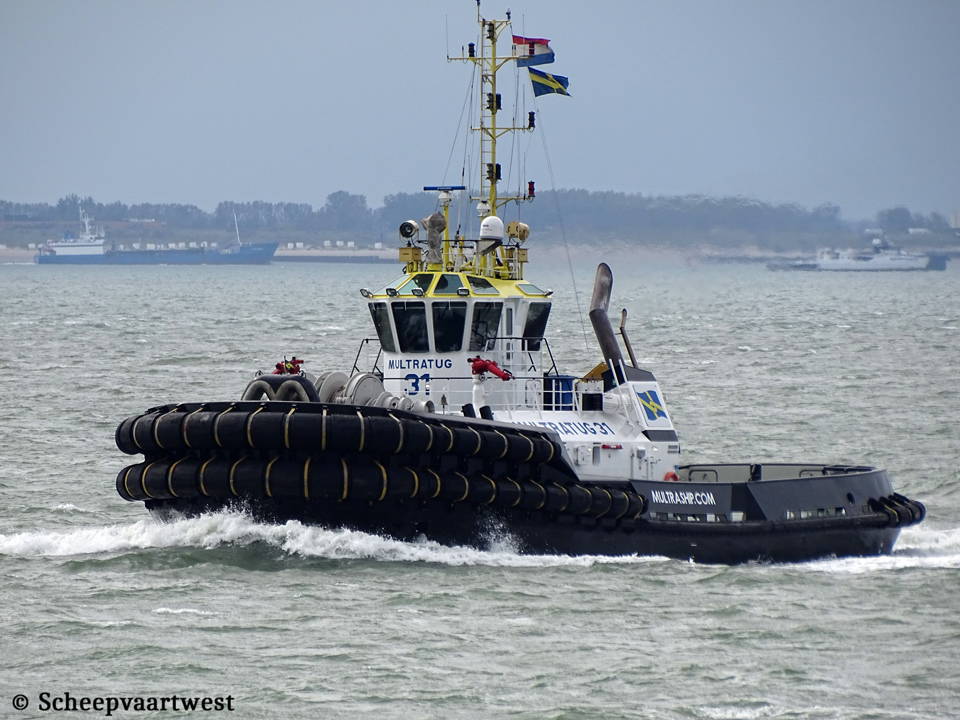

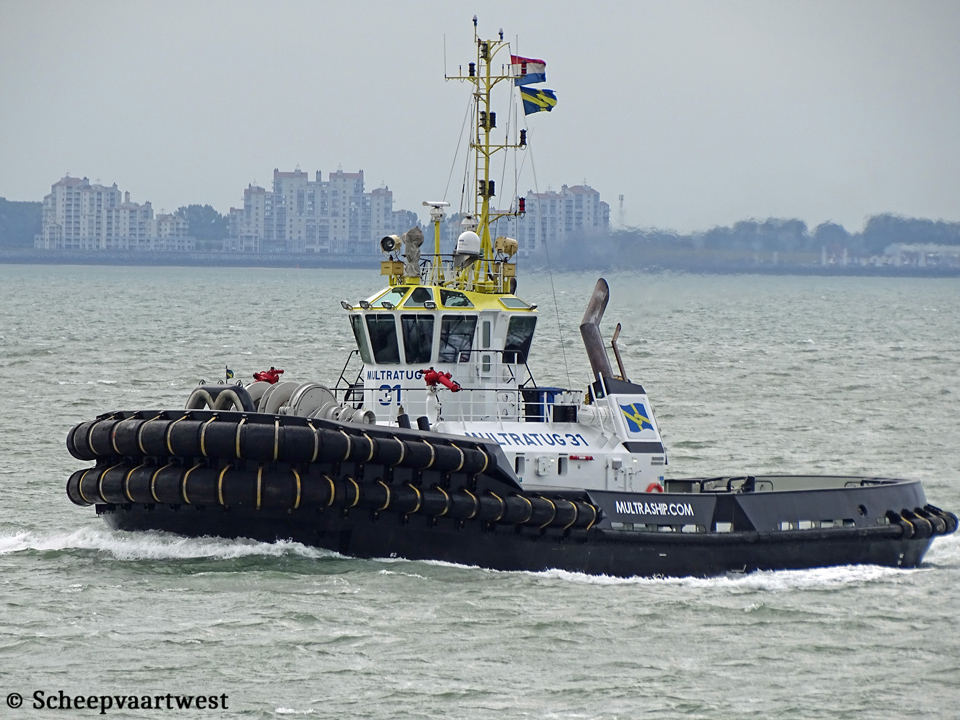

Westerschelde 23 September 2020 |
 |
 |
 |
 |
 |
||||

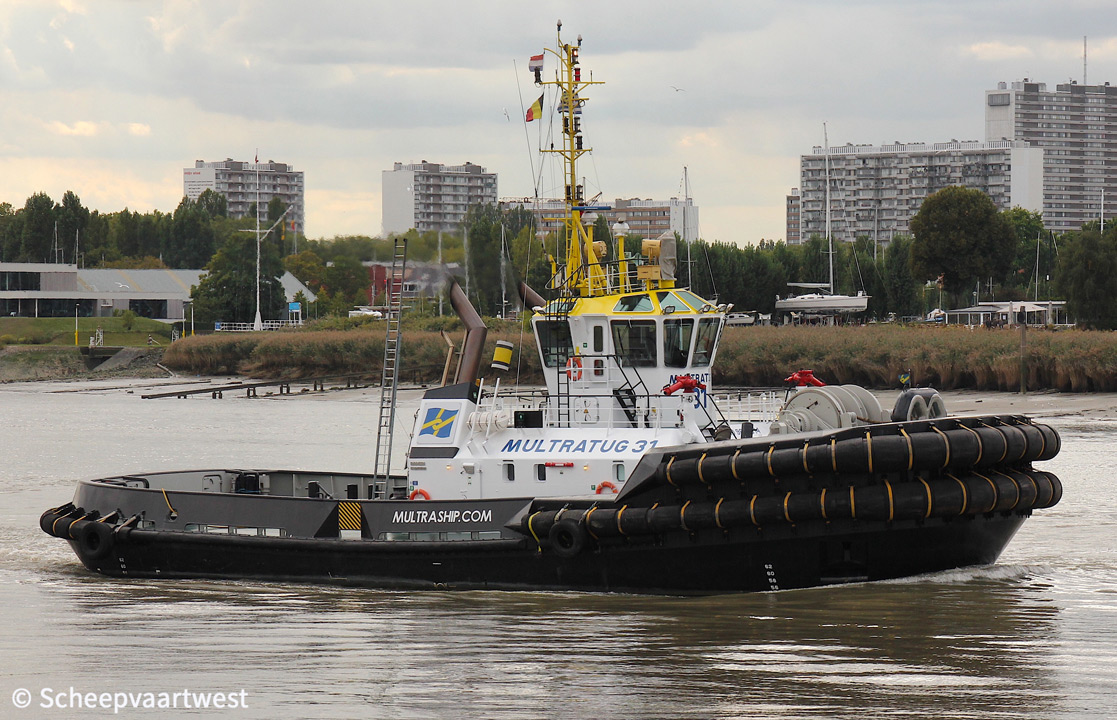

| Westerschelde 23/09/20 | Antwerpen 19/09/19 | Antwerpen 19/09/19 | Zeebrugge 02/09/22 | Zee 02/09/22 | ||||
|
Name |
MULTRATUG 31 |
|
Type |
Escort tug - Fire fighting ship |
|
IMO-number |
9695614 |
|
Call sign |
PDDV |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
GT |
453 t |
|
DWT |
169 t |
|
NT |
135 t |
|
Length |
32,70 m overall 28,84 m between perpendiculars |
|
Breadth |
12,82 m extreme |
|
Draught |
Max: 4,10 m |
|
Freeboard |
723 mm |
|
Depth |
5,35 m |
|
Speed |
Max: 13,4 knots |
|
Built |
2015 |
|
Date of completion |
09/02/2016 |
|
Builder casco |
Song Cam Damen Shipyards Ltd. Hai Phong Vietnam |
|
Builder completion |
Damen Shipyards Group NV Gorinchem The Netherlands |
|
Yard number |
512542 |
|
Hull material |
Steel |
|
Watertight compartments |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516C HD TA/D - 4 stroke 16 cylinder 170 x 190 mm combustion engines total 5.050 kW / 6.772 bhp at 1.800 rpm |
|
Propelling system |
2x Azimuth thruster controllable pitch Diameter: 2.800 mm |
|
Generators |
2x Caterpillar C6.6TA main diesel generatorsets each 125 kVA - 100 kW - 157 hp - 230 / 400 Volt, 50 Hz |
|
Bollard pull |
Max: 83,2 t |
|
Deck lay-out |
Anchor/towing winch: Hydraulically driven escort winch with double drum Type: DMS T320 –HH 2 –M2 – 22 DAM Capacity: 2x 200 m, diameter 60 mm Brake capacity: 200 ton 2nd layer Anchor: 2x 495 kg Chain: 302,50 m diameter 22 mm Towing winch aft: DMS T320 – HHT – ESD Brake capacity: 200 ton 2nd layer Capacity: 750 m, diameter 54 mm Towing hook aft: 100 ton Capstan: 5 ton Deck crane: 2.200 kg at 8,60 m |
|
FIFI 1 System |
Type: Main engine driven pumps, capacity 2x 1.450 m³/h FiFi monitor: 2x 1.200 m³/h - water / foam |
|
Tank capacities |
Fuel oil: 131,2 m³ Fresh water: 15,2 m³ Lubrication oil: 8,1 m³ Foam: 12,5 m³ Dirty oil: 4,2 m³ Bilgewater: 6,7 m³ Sludge: 2,5 m³ Hydraulic oil: 2,8 m³ Sewage: 8,9 m³ |
|
Accommodation |
1-man cabin: 2 2-men cabin: 4 Mess room: 1 Galley: 1 |
|
Navigation & communications |
2x Furuno FAR-2117 Radar 1x Kotter Magnetic Compass 1x Anschütz Standard 22 Compact Gyro Compass 1x Robertson AP-50 Autopilot 1x Furuno GP-150 GPS 1x Furuno FE-800 Echo Sounder 3x Sailor 6222 VHF 2x Handheld VHF 1x Furuno NX-700A Navtex 1x Furuno FA-150 AIS 1x Furuno FS-1575 SSB Radio 1x Jotron TRON-40S EPIRB 1x Jotron TRONSART-20 SART 2x Furuno Felcom-18 Inmarsat-C |
|
Operator |
Multraship Towage & Salvage Schuttershofweg 1 4530 AB Terneuzen The Netherlands |
|
Owner |
Multratug 31 B.V. |
|
Registered owner |
Global Ship Leasing 38 BV Gorinchem The Netherlands |
|
Latest data adjustment |
16 February 2020 |
