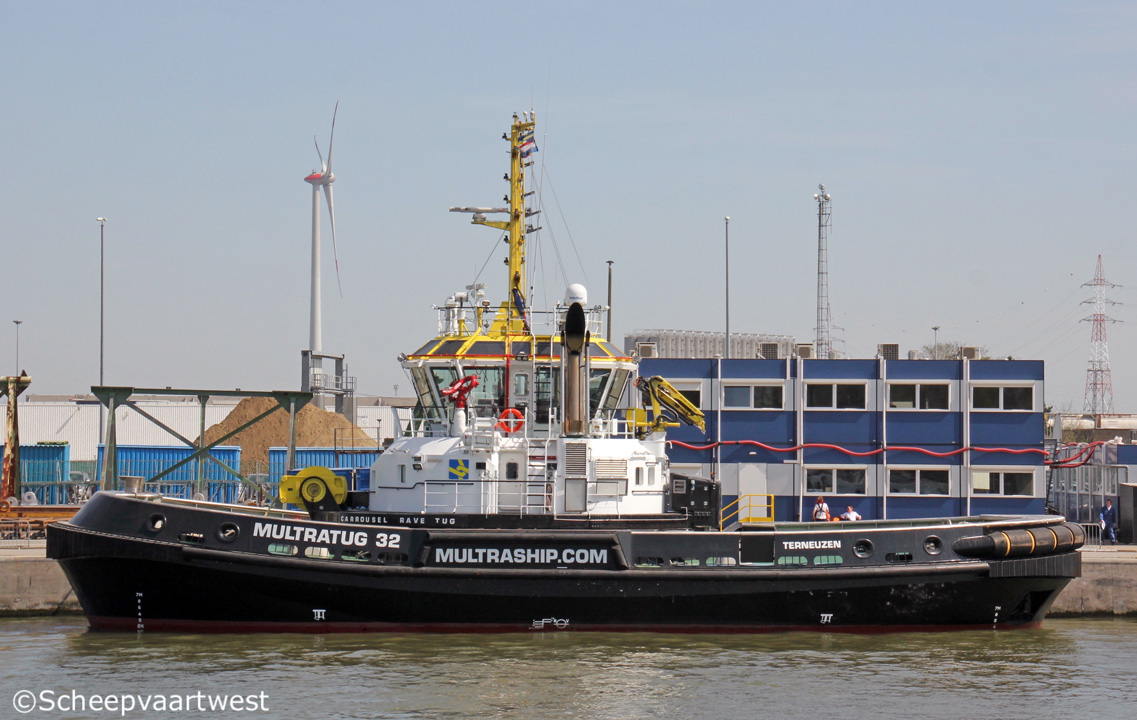

Multratug 32 01

Antwerpen 19 April 2018



Name

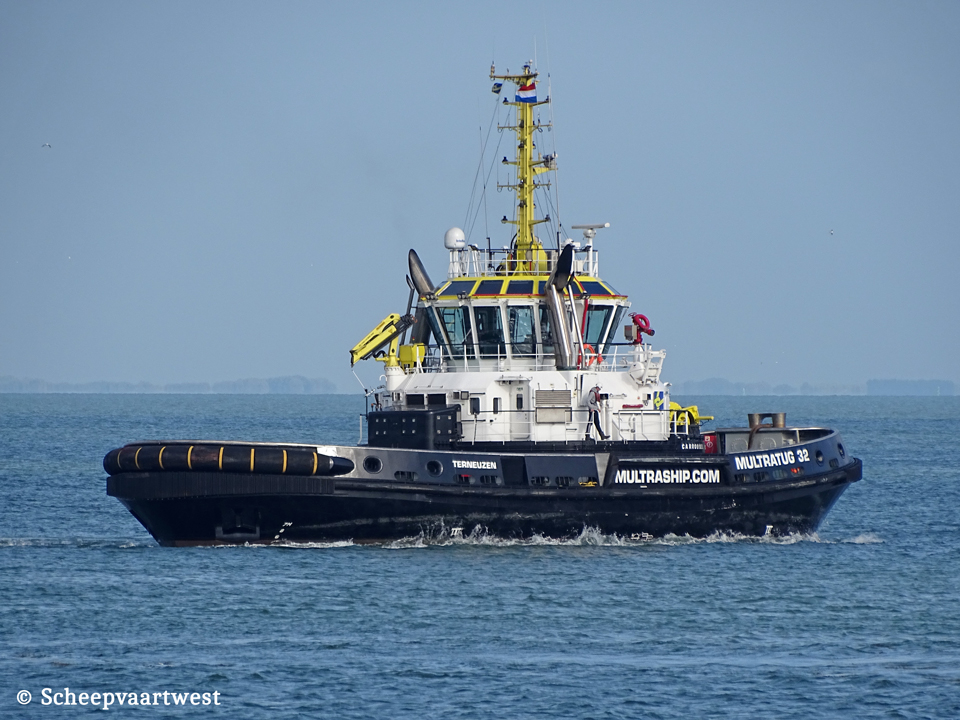

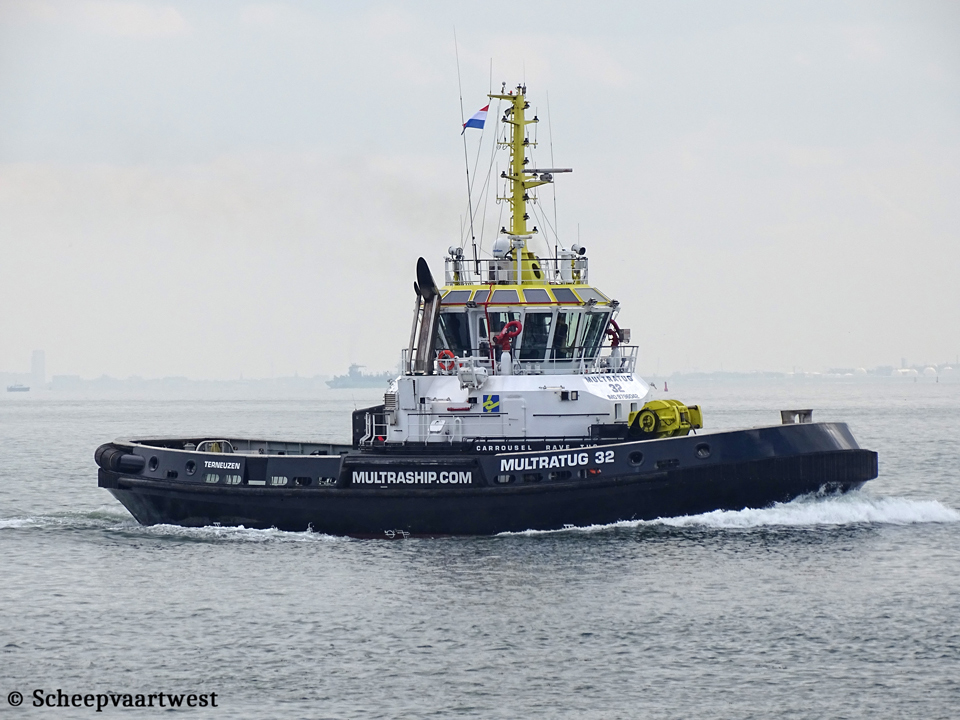

MULTRATUG 32

Type

Caroussel rave tug - Fire-fighting vessel - Water spraying

IMO-number

9796042

Call sign

PBQM

Flag

The Netherlands

Port of registry

Terneuzen

GT

494 t

DWT

168 t

NT

148 t

Length

31,90 m overall

29,89 m between perpendiculars

Breadth

13,20 m overall

Draught

Max: 6,30 m

Air draft

16,60 m

Freeboard

1.708 mm

Depth

5,40 m

Speed

14,1 knots

Built

2018

Keel laid

19/08/2016

Launch date

26/04/2017

Date of completion

24/01/2018

Builder casco

Theodor Buschmann G.m.b.H. & Co. K.G, (Schiffswerft Stahl- und Metallbau)
Hamburg
Germany

Yard number: 288

Builder completion

Maaskant Shipyards
Stellendam
The Netherlands

Yard number: 621

Hull material

Steel

Continuous decks

1

Main engine

2x ABC 12VDZC-1000-166 - 4 stroke single acting 12 cylinder 256 x 310 mm combustion engines total 5.304 kW / 7.206 hp at 1.000 rpm

Start type: Compressed air

Built: 05/12/2016

Manufacturer: Anglo Belgian Corporation NV., Gent - Belgium

Propelling system

2x Voith Schneider propeller Controllable pitch (VSP) 32R5EC/250-2 at 180 rpm

Diameter: 3.200 mm

5 blades

Generators

3x Volvo D5A-T - 4 cylinder 108 x 130 mm diesel generatorsets each 77 kW at 1.500 rpm coupled with Stamford UCM274D1

87,5 kVA

3x400 Volt / 50 Hz

Built: 2017

Bollard pull

70 t

Deck lay-out

Deck space: 170 m²

Carrousel towing system: CTS-250

Towing winch: 1x Hydraulically driven double drum two speed pull

Type: CRT 200 Hydraulic winch

Capacity: Pull 20 t at 10,00 m/min

Brake capacity: 200 t

Towing hook aft: Straatman GSH-65 / 65 t

Capstan: DMT - AMC-E22 K2

Deck crane: Palfinger PK4501M 1.000 kg/ 4,50 m

Fire-fighting

2x Main engine driven pump total capacity 2.700 m³/h

Fifi monitors:

2x 1.200 m³/h – water/foam

1x 300 m³/h waterspray

Tank capacities

Fuel oil : 144 m³

Fresh water : 14,4 m³

Lubrication oil : 5,4 m³

Foam : 20,2 m³

Dirty oil/sludge : 5,8 m³

Bilgewater : 5,8 m³

Grey water : 8,6 m³

Sewage : 8,6 m³

Anchor equipment

2x Each 495 kg

Accommodation

2x 1-man cabin

2x 2-men cabin

1x Mess room

1x Galley

Navigation & Communications

2x Radars
1x Gyro Compass
1x Cassens & Plath Kotter type Magnetic Compass
1x Autopilot
1x Anemometer
1x ECDIS System
1x Echo Sounder
1x GPS
1x AIS
2x Clinometers
1x Speedlog
1x Watch Alarm
1x EPIRB
1x SART
3x VHF
3x Handheld VHF
1x SSB Radio
1x Navtex
2 xInmarsat-C

Manager

Multraship Towage & Salvage
Terneuzen
Yhe Netherlands

Registered owner

Nova Patent B.V.
Terneuzen
The Netherlands

Latest data adjustment

15 May 2018
