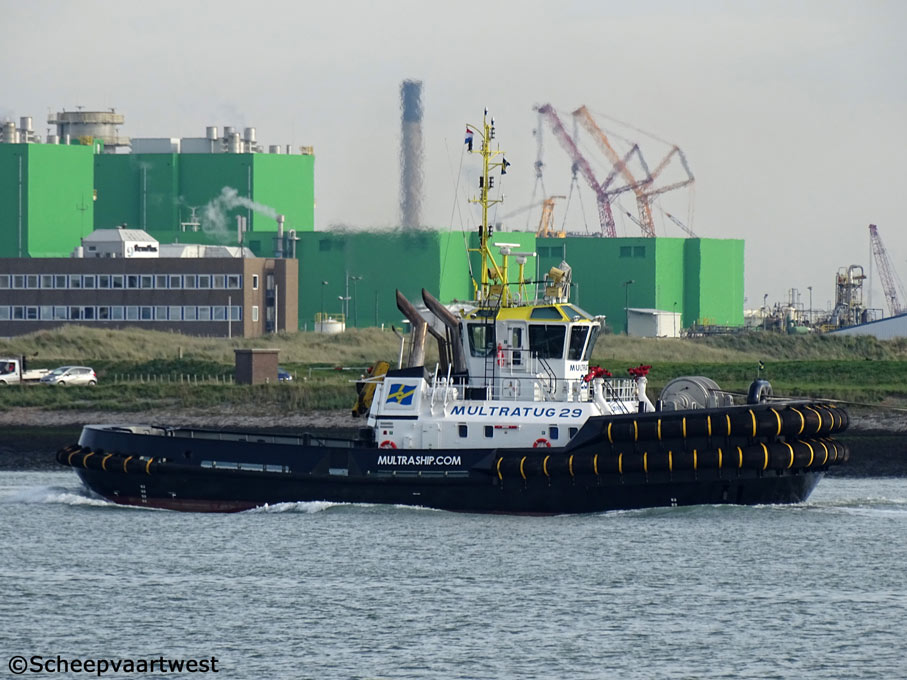

Multratug 29 01

Vlissingen, The Netherlands 30 October 2015



Name

MULTRATUG 29

Previous names

Built as: Mercurius

Type

Escort tug - Fire fighting ship 1

IMO-number

9695470

Call sign

PBVV

Flag

The Netherlands

Port of registry

Terneuzen

GT

453 t

NT

135 t

Length

32,70 m overall

28,84 m between perpendiculars

Breadth

12,82 m overall

Draught

Max.: 5,50 m

Freeboard

623 mm

Depth

5,35 m

Speed

Max.: 13,4 knots

Built

2015

Date of completion

12.05.2015

Builder casco

Song Cam Shipbuilding Joint Stock Company
Hai Phong City
Vietham

Yard number: 512528

Builder completion

Damen Shipyard Gorinchem
Gorinchem
The Netherlands

Hull material

Steel

Watertight compartments

3

Continuous decks

1

Main engine

2x Caterpillar 3516C HD TA/D - 4 stroke 12 cylinder 170 x 190 mm diesel engines 5.050 kW / 6.772 bhp at 1.800 rpm

Built: 11.02.2013

Builder: CATERPILLAR Inc., Lafayette - USA

Propulsion

2x Azimuth Thrusters Rolls Royce US 255 CP

Propeller type

2x Aquamaster Controllable pitch, 2.800 mm diameter at 1.800 rpm

Generators

2x Caterpillar C6.6TA main diesel generatorsets each 125 kVA -100 kW - 159 hp 230/400 Volt - 50 Hz

Bollard pull

Max.: 82,6 t

FIFI 1 system

Type: Main engine driven pumps, capacity 2x 1450 m³/h

FIFI monitors: 2x 1.200 m³/h - water / foam

Deck lay-out

Anchor/ towing winch: Hydraulically driven escort winch with double drum

Type: DMS T320-HH 2 - M2 - 22 DAM

Capacity: 2x 200 m, diameter 60 mm

Brake capacity: 200 t 2nd layer

Anchor: 2x 495 kg

Chain : 302,50 m diameter 22 mm

Towing winch aft: DMS T320 - HHT - ESD

Brake capacity: 200 t 2nd layer

Capacity : 750 m, diameter 54 mm

Towing hook aft: 100 t

Capstan: 5 t

Tank capacities

Fuel oil: 131,2 m³

Fresh water: 15,2 m³

Lubrication oil: 8,1 m³

Foam: 12,5 m³

Dirty oil: 4,2 m³

Bilgewater: 6,7 m³

Sludge: 2,5 m³

Hydraulic oil: 2,8 m³

Sewage: 8,9 m³

Lifting equipment

1x Deck crane: 2.200 kg at 8,60 m

Accommodation

2x 1-Man cabins

4x 2-Men cabins

1x Mess room

1x Galley

Manager

Multraship Towage & Salvage
Scheldekade 48
4530 AB Terneuzen
The Netherlands

Registered owner

Global Ship Leasing 29 B.V.

Renamed

2018 Tirrick

United Kingdom - Call sign: MBER9

Latest data adjustment

01 December 2015
