| Antwerpen 25 February 2009 |
|
Name |

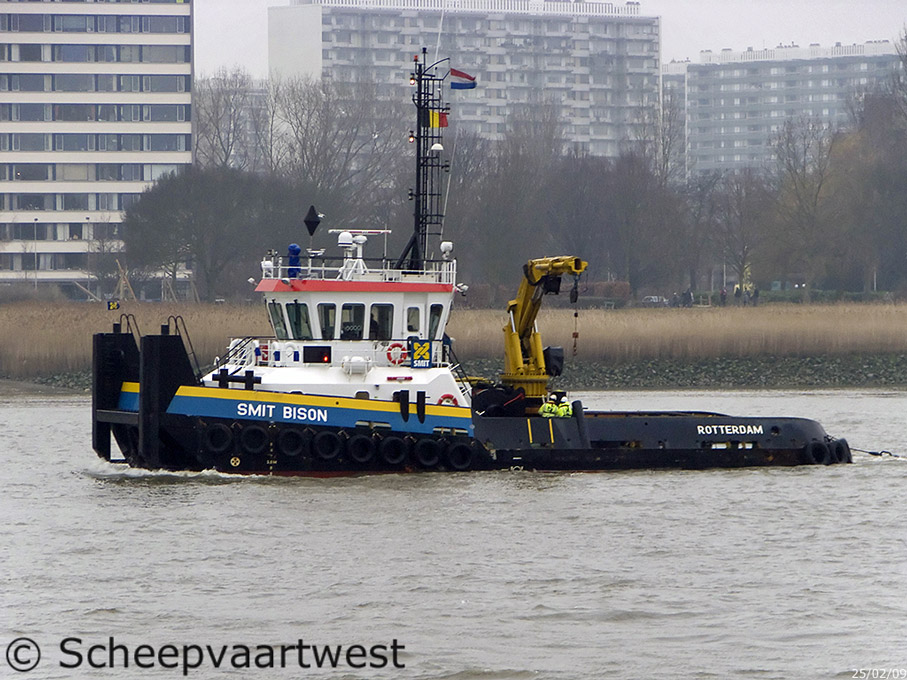

SMIT BISON |
|
Type |
Multi-purpose tug boat - Coastal waters |
|
IMO-number |
9345518 |
|
Call sign |
PHFX |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
230 t |
|
DWT |
Summer: 120 t |
|
NT |
69 t |
|
Displacement |
350 t |
|
Length |
25,40 m overall 23,66 m between perpendiculars |
|
Breadth |
10,00 m overall |
|
Draught |
2,70 m |
|
Max. /min. draft |
2,72 m / 2,50 m |
|
Air draft |
8,00 m |
|
Depth |
3,45 m |
|
Speed |
11,0 knots |
|
Built |
2006 |
|
Date of completion |
20.12.2006 |
|
Builder |
IHC Delta Holland (IHC Beaver Dredgers BV) The Netherlands |
|
Yard number |
11018 |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar diesel engines each 746 kW total 1.492 kW / 2.028 hp |
|
Propeller |
2x Screw propeller solid |
|
Generators |
2x Diesel generatorsets each 97,5 kVA - 220/380 V |
|
Bow thruster |
150 kW |
|
Auxiliary equipment |
Bilge pumps: 24,0 m³ Fuel supply pump: 12 m³/h Water supply pump: 12 m³/h Fuel separator: 600 l/h |
|
Bollard pull |
28 t |
|
Bunker capacity |
Fuel oil: 60 m³ Freshwater: 33 m³ |
|
Towing equipment |
Anchor handling winch 200 m, 44 mm( pull 50 t / holding 70 t) Hydraulic towing winch 700 m, 38 mm |
|
Deck equipment |
Hydraulic crane, 1.400 kNm (26,0 t at 5,65 m/10,0 ton at 12,25 m) Towing hook SWL - 35 t Stern roller SWL - 100 t |
|
Accommodation |
6 berths |
|
Owner |
Smit Transport Europe BV |
|
Owner as completed |
Smit Transport Europe B.V. The Netherlands |
|
Remarks |
Equipped with air-conditioning and waste water treatment plant Push fender |
|
Optional |
FiFi unit Mooring winch Pump unit for ballast / salvage purposes, diving / decompression unit Survey equipment Oil spill response unit |
