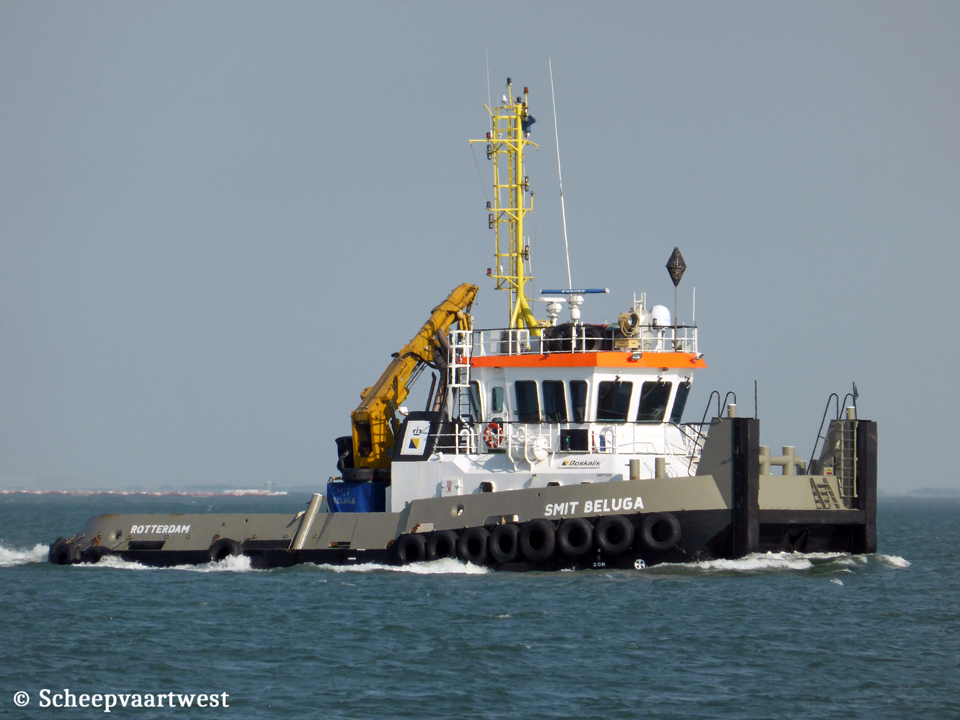

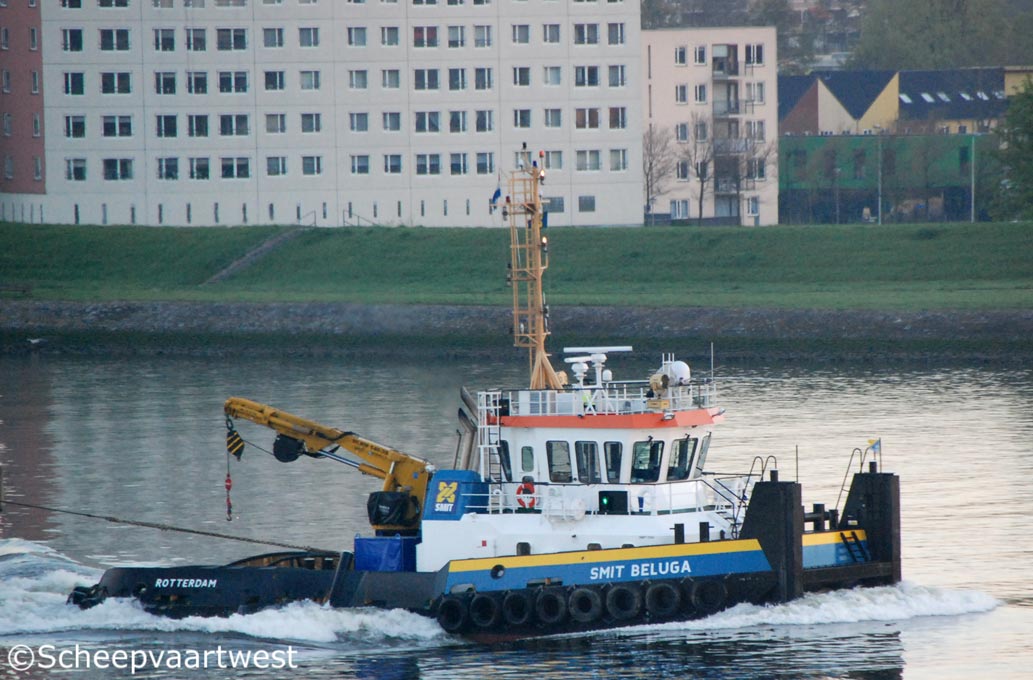

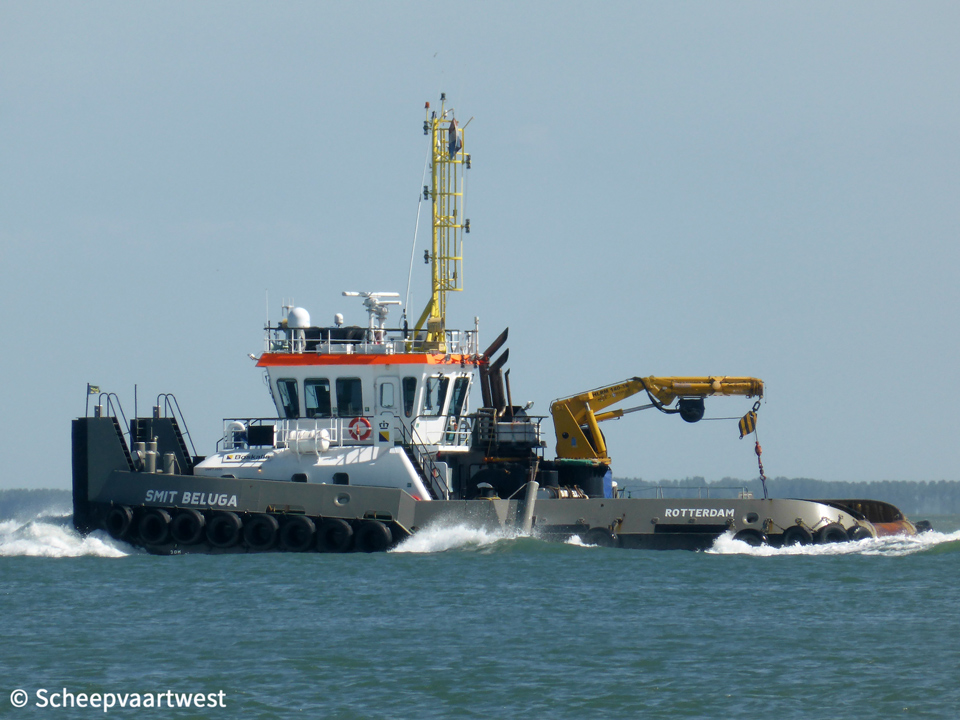

Smit Beluga - IMO 9528316

Westerschelde 11 June 2015

Name

SMIT BELUGA

Type

Tug/Pusher

IMO-number

9528316

Call sign

PCBJ

Flag

The Netherlands

Port of registry

Rotterdam

Previous flag

Bahamas, Nassau - Call sign: C6YH4

GT

230 t

DWT

350 t

NT

59 t

Length

25,80 m overall

Breadth

10,05 m overall

Draught

3,17 m

Air draft

8,75 m

Depth

3,45 m

Speed

Max.: 13,7 knots

Average: 10,5 knots

Built

2010

Launch date

26/02/2010

Date of completion

31/03/2010

Builder casco

Zylkowski Andrzej

Gdynia

Poland

Builder completion

Damen Shipyards BV

Hardinxveld

The Netherlands

Yard number

571613

Hull material

Steel

Watertight bulkheads

4

Continuous decks

1

Main engine

2x Caterpillar 3508B - 4 stroke single action 8 cylinder combustion engines each 746 kW total 1.492 KW at 1.600 rpm

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Gearbox

2x Reverse reduction gear Reintjes WAF-562L 5.424:1

Propellers

2x Solid propellers - aft at 295 rpm

4 blades diameter: 2.000 mm

Generators

2x Caterpillar C4.4 DI-TAA - 4 cylinder diesel engines each 75 kW at 1.500 rpm connected with Leroy Somer generators each 97,5 kVA

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Bow thruster

1x Veth Jet hydraulically driven thruster - 150 KW

Bollard pull

28 t

Deck equipment

• Towing anchor handling winch Kraaieveld, hydraulic driven

• Holding power: 70 t

• Pulling: 50 t

• Tow drum capacity 700 m - diameter 38 mm

• Anchor handling drum capacity 200 m- diameter 44 mm

• Towing hook Mampaey: 35 t SWL

• Stern roller: 100 tonnes SWL

• Anchor handling gear: towing pins and wire stopper

Pumps

Bilge pumps: 24 m³/h

Fuel supply pump: 12 m³/h

Water supply pump: 12 m³/h

Fuel oil separator

Westfalia 600 litres/h

Tank capacities

Fuel oil: 64 m³

Fresh water: 33 m³

Hydraulic power plant

1x Caterpillar C9 TA - 6 cylinder diesel engine 269 kW at 1.800 rpm

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Lifting equipment

1x Deck crane Heila type HLRM 140-3S, hydraulic driven

Capacity load: 26 t at 5,65 m

Capacity reach: 10 t at 12,25 m

Optional modular units

Fire-figthing (fifi) unit, double drum mooring winch, pump unit for ballast/salvage purposes, diving/decompression unit, survey equipment, oil spill response unit.

Navigational & communication

• 2x Furuno FAR-2117 Radars

• 1x Obsermet OMC-115 Ultra Sonic Meteo System

• 1x Cassens & Plath Reflecta 1 Magnetic Compass

• 1x Anschutz Standard 22 Gyro Compass

• 1x Furuno FA 150 AIS1x Radio Zeeland Seapilot 75 Autopilot

• 1x Radio Zeeland Sigma 300 Rate of Turn Indicator

• 1x Furuno FE-700 Echo Sounder

• 1x Furuno GP-150D DGPS

• 3x Sailor RT-5022 VHF

• 1x Sailor RT-2048 VHF

• 2x Jotron Tron TR-20 Handheld VHF

• 1x Furuno FS-1570 SSB Radio

• 1x Furuno NX-700 Navtex

• 1x Jotron Tron-40S EPIRB

• 1x Jotron Tronsart SART

• 1x Trane & Trane Fleetbroadband 250 Fleet System

• 1x Transas ECS-3000 Electronic Chart System

• 1x Marble Marble-421 Watch Alarm

• 2x Furuno Felcom-15 Inmarsat-C

• 1x Furuno DS-80 Speedlog

Accommodation

Accommodation for 6 people, fully air-conditioned, sewage treatment unit

Manager

Smit Vessel Management Service BV

Rotterdam

The Netherlands

Owner

Smit Transport Europe

Rotterdam

The Netherlands

Renamed

2015 Sea Beluga

The Netherlands, Vlissingen - Call sign: PCBJ

Owner: Seacontractors, Middelburg - The Netherlands

Latest data adjustment

15 May 2020
