Name |

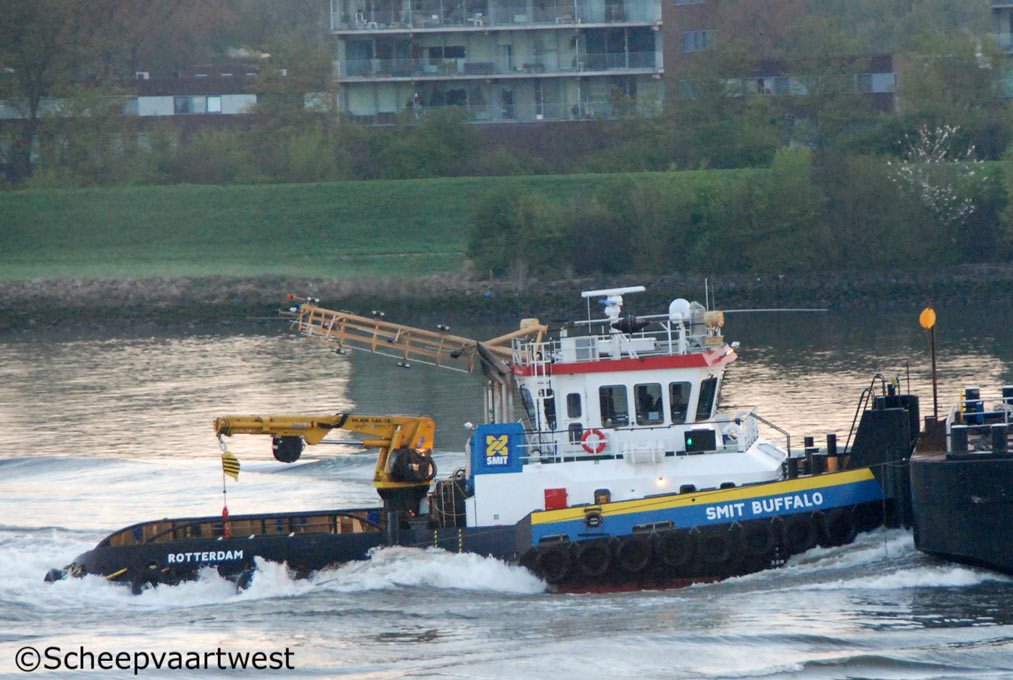

SMIT BUFFALO |
|
Type |
Tug |
|
IMO-number |
9538304 |
|
Call sign |
PBME |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
230 t |
|
Length |
25,80 m overall |
|
Breadth |
10,05 m overall |
|
Draught |
3,17 m |
|
Air draft |
8,75 m |
|
Speed |
11,0 knots |
|
Built |
2009 |
|
Builder |
Damen Shipyards |
|
Main engine |
2x Caterpillar 3508B diesel engines each 746 kW |
|
Propulsion |
Twin screw |
|
Generators |
2x Caterpillar 3056T diesel generatorsets each 97,5 kVA |
|
Bow thruster |
1x Veth jet - 150 kW |
|
Bollard pull |
28 t |
|
Deck equipment |
Towing anchor handling winch Kraaieveld, hydraulic driven Holding power 70 tonnes Pulling 50 tonnes Tow drum capacity 700 m, diameter 38 mm Anchor handling drum capacity 200 m, diameter 44 mm Towing hook 35,0 t SWL Stern roller 100,0 t SWL Anchor handling gear Towing pins and wire stopper |
|
Lifting equipment |
1x Deck crane Heila type HLRM 140-3S hydraulic driven Capacity load 26,0 t at 5,65 m Capacity reach 10,0 t at 12,25 m |
|
Bilge pumps |
24 m³/h |
|
Fuel supply pump |
12 m³/h |
|
Water supply pump |
12 m³/h |
|
Fuel oil separator |
600 litres/h |
|
Tank capacities |
Fuel oil: 64 m³ Fresh water: 33 m³ |
|
Accommodation |
Accommodation for 6 people, fully air-conditioned, sewage treatment unit. |
|
Owner |
SMIT Transport Europe Waalhaven O.z. 85 |
