| Westerschelde 20 November 2012 |
 |
 |
 |
 |
 |
 |
|||||

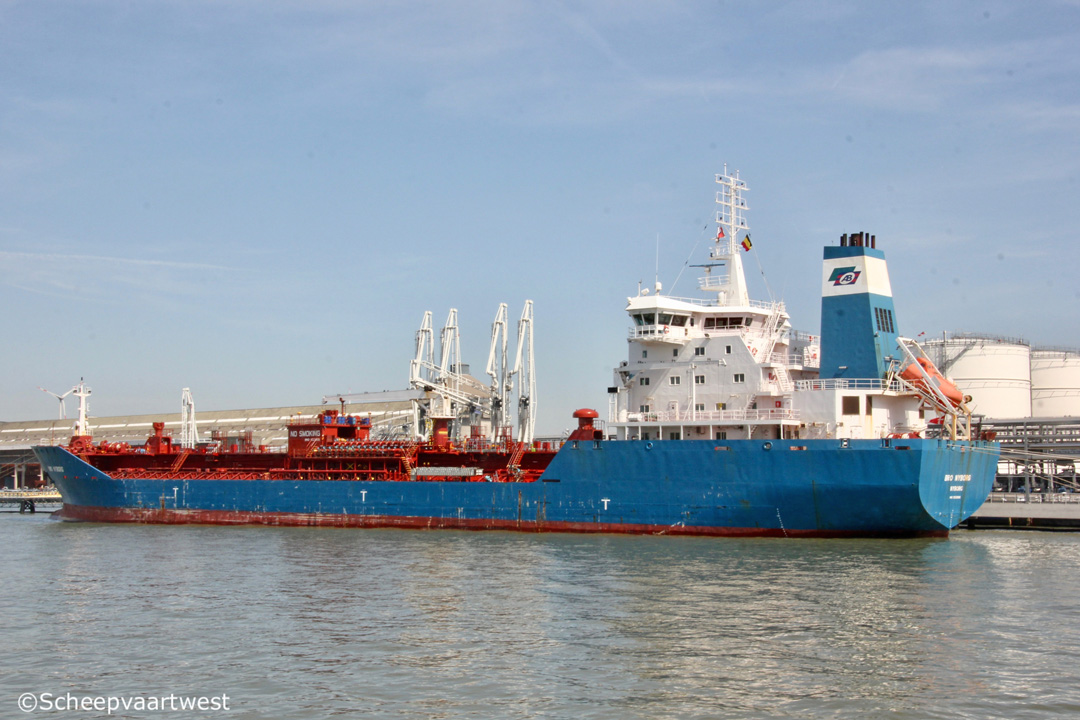

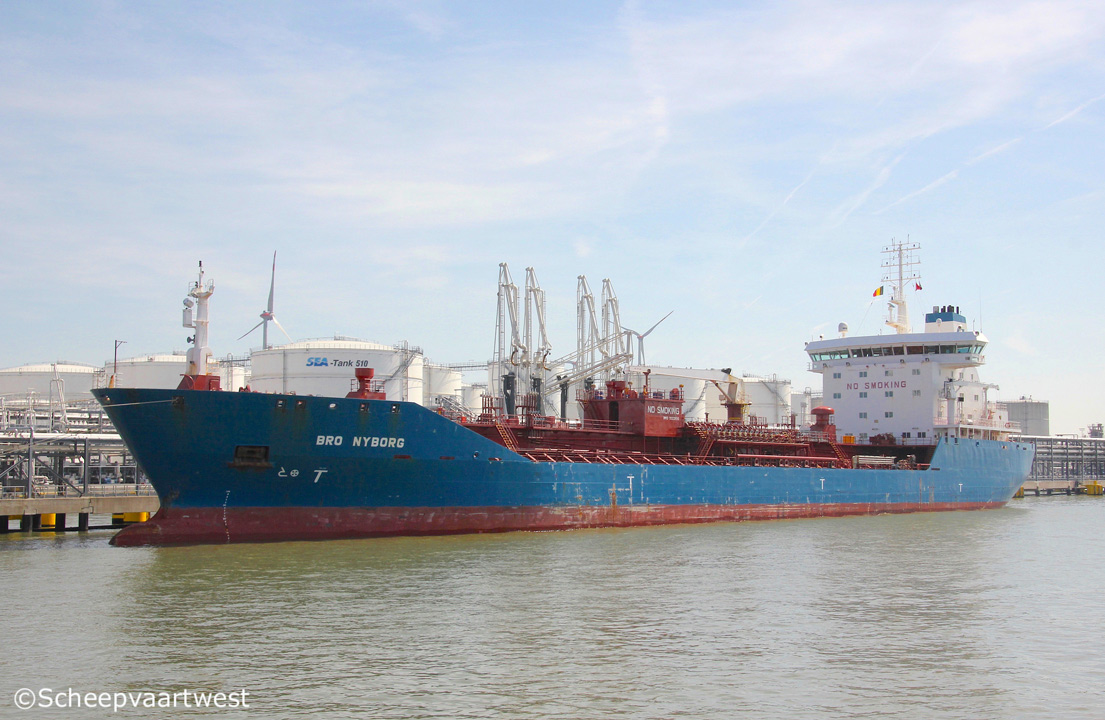

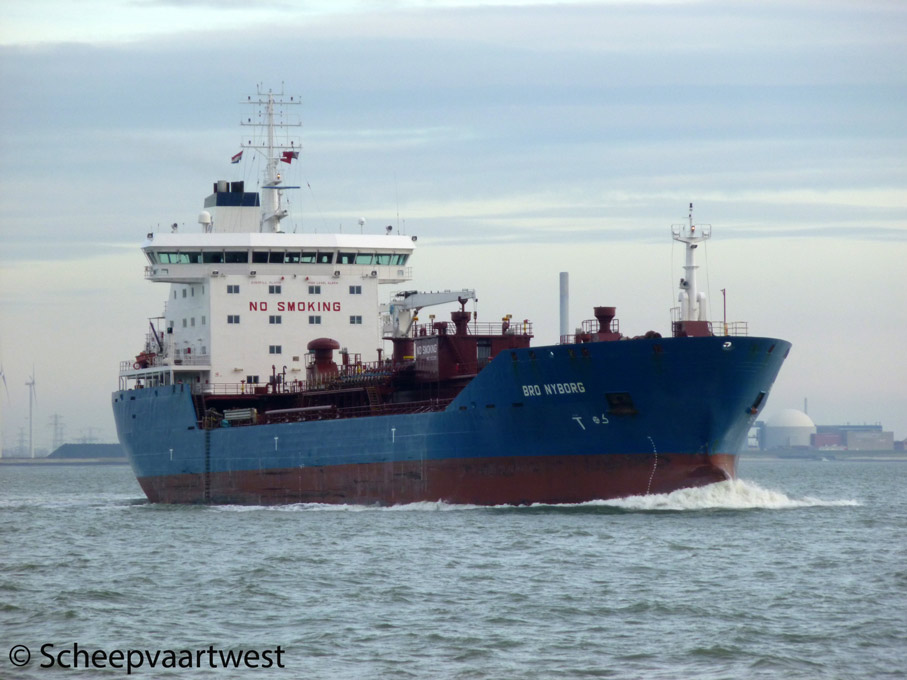

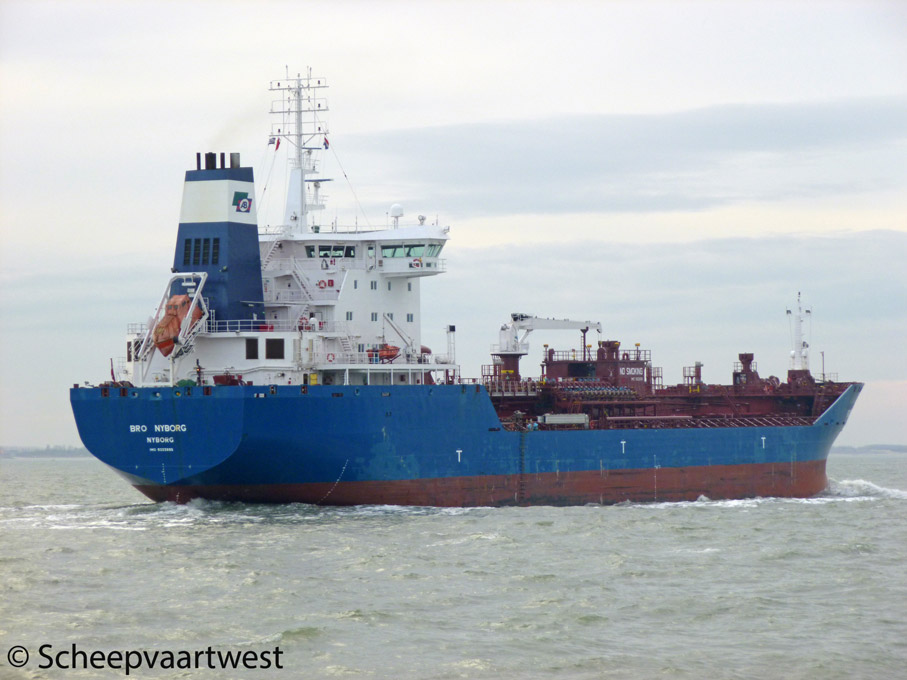

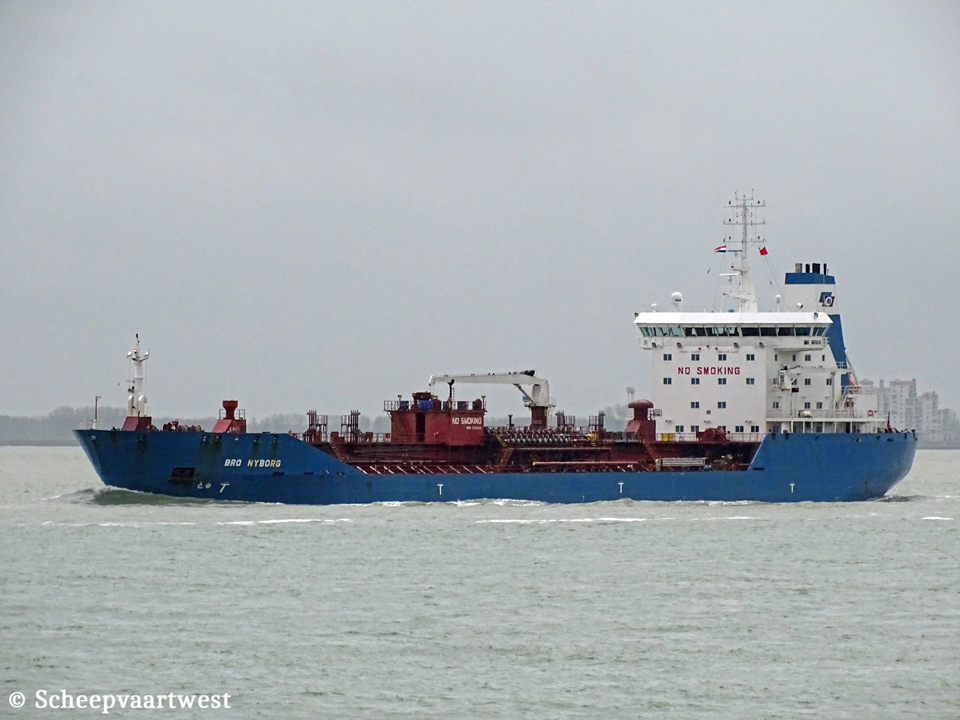

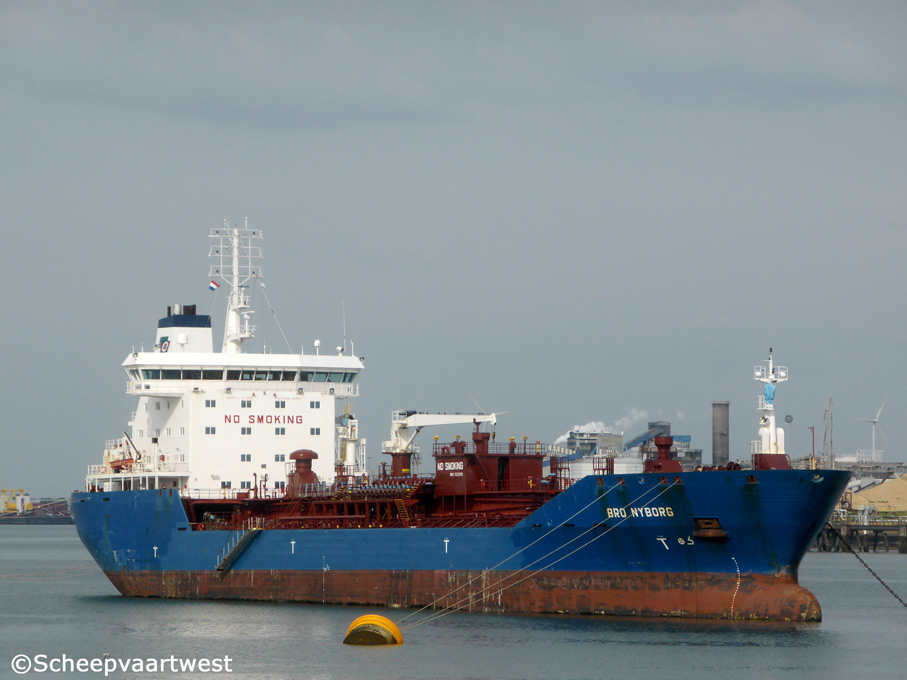

| Westerschelde 20/11/12 | Vlissingen 26/05/14 | Antwerpen 19/04/18 | Antwerpen 19/04/18 | Westerschelde 08/01/20 | Westerschelde 08/01/20 | |||||
|
Name |
BRO NYBORG |
|
Previous names |
2007 - 09/2013 Nyborg Mærsk |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9322695 |
|
Call sign |
OVXR2 |
|
Flag |
Denmark |
|
Port of registry |
Nyborg |
|
GT |
12.105 t |
|
DWT |
16.564,7 t |
|
NT |
5.043 t |
|
Displacement |
22.579,9 t |
|
Length |
144,10 m overall 133,76 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
8,90 m |
|
Freeboard |
3.524 mm |
|
Depth |
12,41 m moulded |
|
Speed |
Max: 14,8 knots Service: 14,0 knots |
|
Built |
2007 |
|
Keel laid |
26/09/2005 |
|
Launch date |
31/03/2006 |
|
Date of completion |
17/02/2007 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. No. 988, Chang Xing Jiang Nan Avenue, Changxing Island, Shanghai, 201913 China |
|
Yard number |
H2337 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 6.330 kW / 8.565 hp at 514 rpm Builder: Wärtsilä Italia Spa |
|
Propellers |
1x Controllable pitch propeller Builder: Wärtsilä Propulsion Norway AS |
|
Boilers |
Auxiliary boiler, vertical shell type AQ-9 - 10,0 MPa Auxiliary boiler, composite AQ-16 - 10,0 MPa Builder: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x AVK 1.875 kW |
|
Generators |
2x Wärtsilä 4L20 - 4 stroke 4 cylinder 200 x 280 mm diesel engines each 650 kW connected with generators 1x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm diesel engine each 1.200 kW connected with generator Manufacturer: Wärtsilä Finland Oy |
|
Bow thruster |
1x Tunnel thruster 750 kW / 1.020 bhp, forward |
|
Tank capacity 98% |
Liquid: 18.106 m³ excl. slops 18.694 m³ incl. slop tanks |
|
Slop tanks capacity |
589 m³ |
|
Pumps |
12x cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast water:8.592,98 m³ Lube oil: 102,20 m³ Diesel oil: 56,20 m³ Fuel oil: 606,30 m³ Fresh water: 491,20 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 60 mm |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Provision crane port - SWL 3,0 t Manufacturer: Pellegrini 1x Engine Room Crane - SWL 1,6 t Manufacturer: Danish Crane Building |
|
Crew size |
13 |
|
Manager |
Maersk Tankers A/S |
|
Previous managers |
2007 - 2008 A.P. Møller - Mærsk A/S, DK-1263 København K - Denmark 2008 - 2011 Maersk Tankers A/S, 1098 København K - Denmark 2011 - 2012 Broström Tankers AB, SE-412 63 Göteborg - Sweden 2012 Broström AB, 412 63 Göteborg - Sweden |
|
Operator |
Maersk Tankers A/S |
|
Registered owner |
Maersk Product Tankers A/S Holmbladsgade 133 2300 København S Denmark |
|
Previous owners |
2007 - 2012 A.P. Møller - Mærsk A/S, DK-1263 København K - Denmark 2012 Maersk Tankers A/S, 1098 København K - Denmark |
|
Renamed |
06/2022 Sten Triton Denmark, Nyborg - Call sign: OVXR2 Owner: Eternal Nyborg Limited Manager: Synergy Denmark A/S |
|
Latest data adjustment |
16 September 2022 |
