Westerschelde 07 April 2020 |
 |
| Westerschelde 30/03/19 |
|
Name |

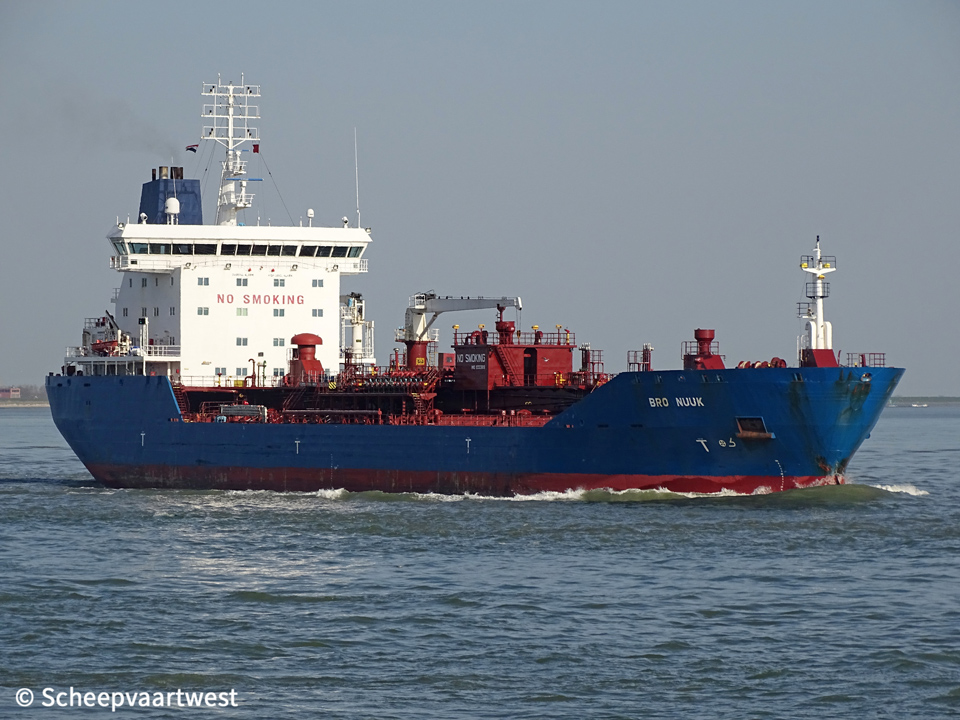

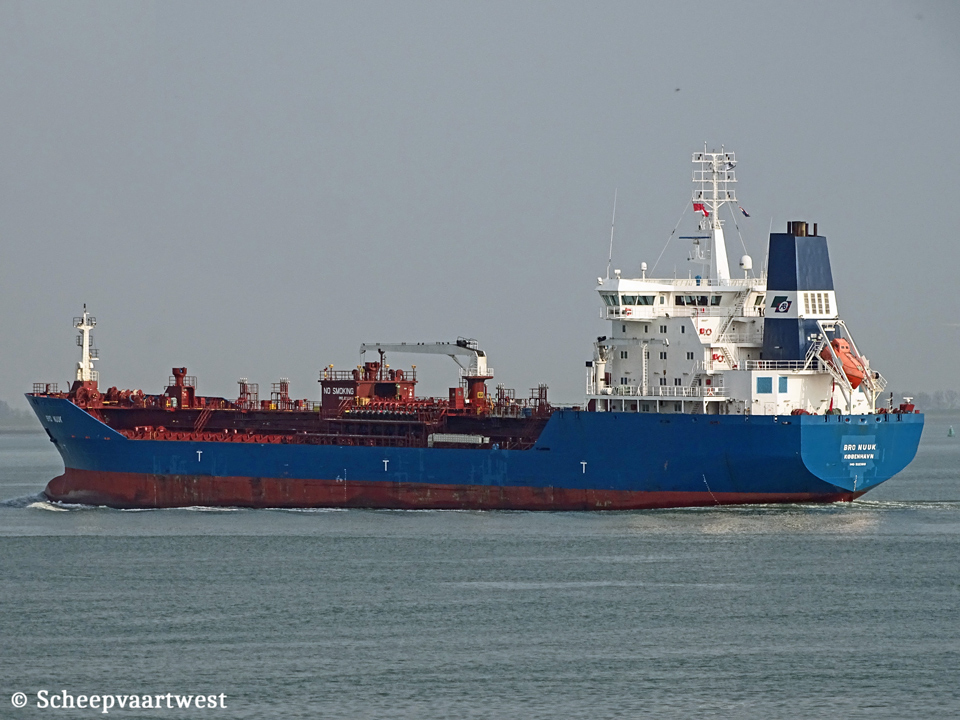

BRO NUUK |
|
Previous names |
2008 - 11/2012 Nuuk Maersk |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9323819 |
|
Call sign |
OXHP2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
12.105 t registered |
|
DWT |
Summer: 16.631,4 t |
|
NT |
5.056 t registered |
|
Displacement |
22.579,9 t |
|
Length |
144,18 m overall 133,76 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
8,40 m |
|
Freeboard |
3.508 mm |
|
Depth |
12,40 m moulded |
|
Speed |
Service: 14,8 knots |
|
Built |
2008 |
|
Keel laid |
29/12/2006 |
|
Launch date |
18/05/2007 |
|
Delivery date |
02/01/2008 |
|
Builder |
Jiangnan Shipyard Group Co., Ltd. No. 988, Chang Xing Jiang Nan Avenue, Changxing Island Shanghai, 201913 China |
|
Yard number |
H2341 |
|
Hull material |
Forged steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Bulkheads |
Water tight: 10 Gas tight: 1 Oil tight: 1 |
|
Main engine |
1x Wärtsilä W6L46 - 4 stroke single acting 6 cylinder 460 x 2.214 mm combustion engine 6.330 kW / 8.565 hp at 500 rpm Manufacturer: Wärtsilä Iberica SA |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Composite boiler AQ-16 - 10,0 MPa 1x Oil fired boiler AQ-9- 10,0 MPa Manufacturer: Alfa Laval Aalborg A/S |
|
Shat generator |
1x AVK 1.500 kW |
|
Generators |
2x Wärtsilä 4L20 - 2 stroke 4 cylinder 200 x 280 diesel engines each 800 kW connected with generators each 640 kW 1x Wärtsilä 6L20 - 2 stroke 6 cylinder 200 x 280 diesel engines 1.200 kW connected with generator 960 kW Builder: Wärtsilä Finland Oy |
|
Bow thruster |
1x Tunnel thruster 800 kW / 1.088 bhp, forward |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
Liquid: 18.106 m³ excl. slops 18.694 m³ incl. slop tanks |
|
Slop tanks capacity 98% |
588 m³ |
|
Pumps |
12x Cargo pumps each 300 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 9 Waste water: 4 Slop: 4 Fresh water: 4 Chain: 2 Diesel oil2 Sea water: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 56,2 m³ Freshwater: 491,2 m³ Fuel Oil: 606,3 m³ Lube Oil: 102,2 m³ Tank Ballast: 8.556,4 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Cargo hose handling crane Manufacture: Pellegrini 1x Engine room crane Manufacture: Danish crane building 1x Provision crane - SWL 3,0 t Manufacture: Pellegrini marine equipment |
|
Crew size |
14 |
|
Manager |
Maersk Tankers A/S Esplanaden 50 DK-1098 Copenhagen K Denmark |
|
Previous managers |
2008 - 2008 A.P. Moller - Maersk A/S 2008 - 2011 Maersk Tankers A/S 2011 - 2012 Broström Tankers AB 2012 - 2013 Bröstrom AB |
|
Registered owner |
Maersk Product Tankers A/S Holmbladsgade 133 2300 København S Denmark |
|
Previous owner |
2008 - 2012 A.P. Moller - Maersk A/S |
|
Latest data adjustment |
28 November 2021 |
