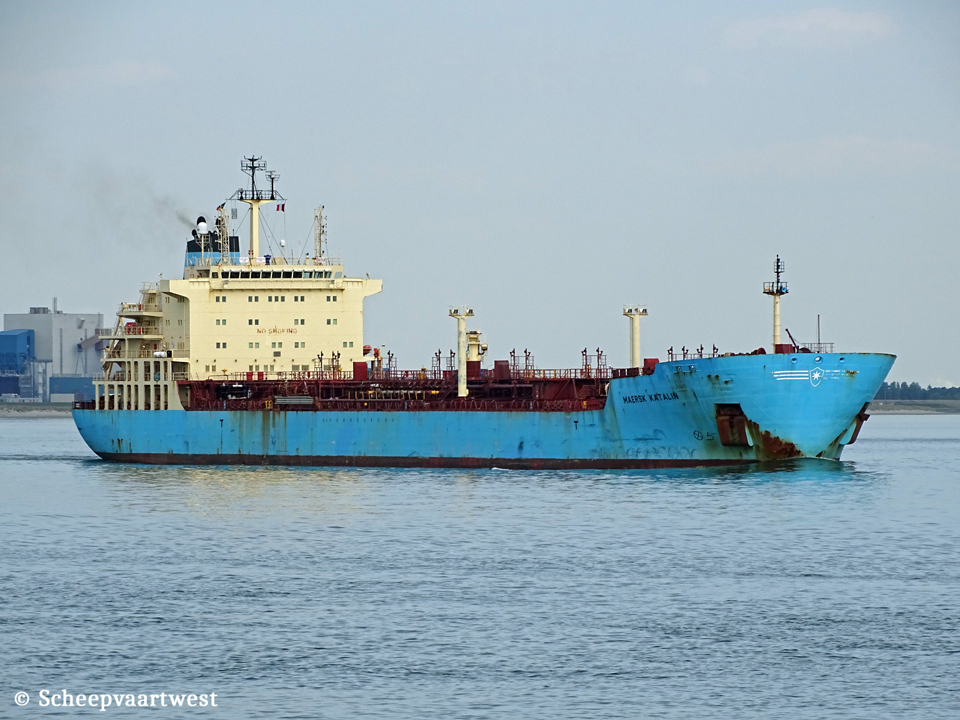

| Westerschelde 04 August 2020 |
|
Name |
MAERSK KATALIN |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9431317 |
|
Call sign |
9V8528 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
24.463 t Suez: 25.429,40 t |
|
DWT |
39.708,3 t |
|
NT |
11.668 t Suez: 21.791,48 t Panama: 20.378 t |
|
Displacement |
49.961,8 t |
|
Length |
183,20 m overall 176,00 m between perpendiculars |
|
Breadth |
27,43 m |
|
Draught |
Summer: 11,80 m |
|
Keel to mast end |
47,20 m |
|
Freeboard |
5.013 mm |
|
Depth |
16,80 m moulded |
|
Speed |
Max: 15,2 knots |
|
Built |
2012 |
|
Keel laid |
08/12/2010 |
|
Launch date |
16/09/2011 |
|
Delivery date |
19/01/2012 |
|
Builder |
CSSC Offshore And Marine Engineering (Group) Company Limited No. 40 Fang Cun Road, South Guangzhou Guangzhou, 510382 China |
|
Yard number |
06130030 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
MAN-B&W 6S50MC-C MK7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW / 12.889 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Yuanhang Propellers Manufacturing Co., Ltd. |
|
Boilers |
1x Fired b oiler - 9,0 MPa 1x Fired exhaust gas boiler - 9,0 MPa |
|
Generators |
3x Main diesel generatorsets each 910 kW |
|
Bow thruster |
1x 883 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 40.790,1 m³ |
|
Number of pumps |
12x Cargo pumps each 500 m³/h |
|
Tank capacities |
Diesel oil: 152,80 m³ Ballast: 18.560,00 m³ Fuel oil: 1.477,80 m³ Fresh water: 371,00 m³ Lub oil: 130,90 m³ |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Monorail stores crane - SWL 3,0 t Manufacturer: TTS Marine 1x Engine room crane - SWL 3,0 t Manufacturer: Danish Crane Building |
|
ISM manager |
Maersk Tankers A/S Holmbladsgade 133 2300 Copenhagen Denmark |
|
Registered owner |
Maersk Tankers Singapore Pte 15-01, Robinson Point, 39, Robinson Road Singapore 068911 Republic of Singapore |
|
Latest data adjustment |
07 October 2023 |
