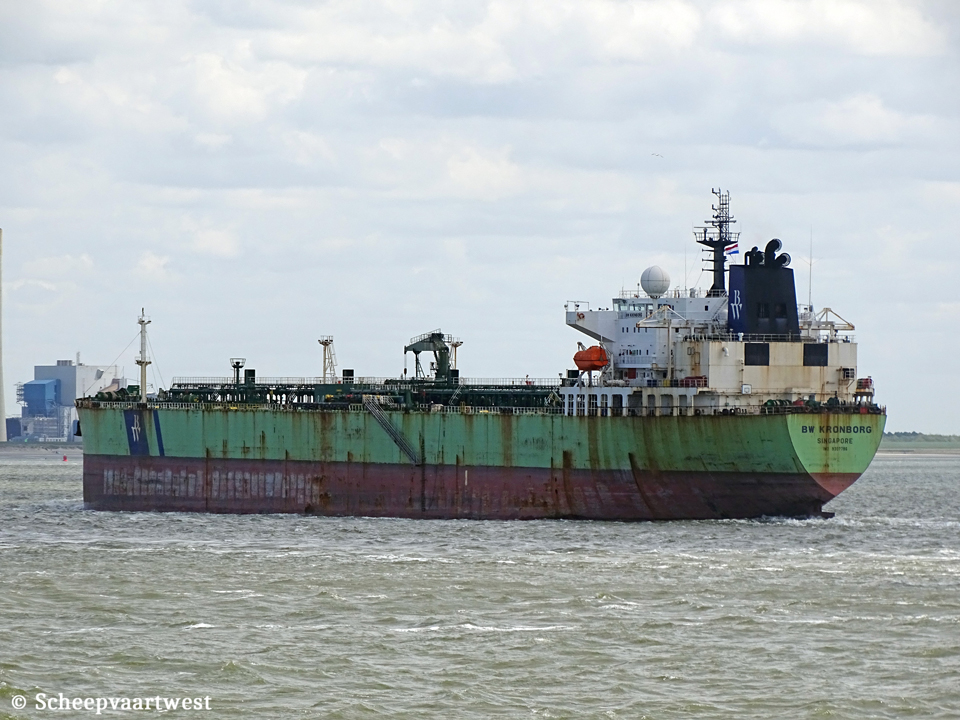

| Westerschelde 30April 2020 |
|
Name |
BW KRONBORG |
|
Previous names |
03/2007 - 06/2012 Torm Ugland |
|
Type |
Oil products tanker - Panamax |
|
IMO-number |
9307786 |
|
Call sign |
9V2882 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2007 - 2007 Norway - Call sign: LACL7 2007 - 2012 Hong Kong 2012 - 2014 Republic of Panama - Call sign: 3EUU7 |
|
GT |
42.048 t Suez: 44.162,54 t |
|
DWT |
Summer: 73.708,00 t Winter: 71.677,82 t |
|
NT |
22.309 t Suez: 39.772,24 t Panama: 34.736 t |
|
Displacement |
Summer: 89.380,89 t Winter: 87.350,71 t |
|
Length |
228,60 m overall 221,67 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 14,52 m Winter: 14,22 m |
|
Keel to mast end |
48,80 m |
|
Air draft |
Summer deadweight: 34,54 m Normal ballast: 41,87 m Lightship: 46,22 m |
|
Freeboard |
Summer: 6,21 m Winter: 6,42 m |
|
Depth |
20,80 m moulded |
|
Speed |
Ballast: 12,5 knots - Economic: 11,0 knot Laden: 12,5 knots - Economic: 11,0 knot |
|
Built |
2007 |
|
Keel laid |
30/03/2006 |
|
Launch date |
20/10/2006 |
|
Delivery date |
12/03/2007 |
|
Builder |
New Century Shipbuilding Co. Ltd. China |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 2 Oil tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 11.300 kW / 15.362 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 101,0 rpm Builder: Wartsila CME Zhenjiang |
|
Boilers |
1x Aalborg model Mission OC - 10,0 bar Heating surface: 548 m² 2x Aalborg oil fired boiler Mission OL 20T/H - 18,0 bar Heating surface: 110 m² |
|
Generators |
3x Yanmar 8N21L-EV diesel engines each 970 kW connected with Taiyo FE553B-10 generators each 900 kW |
|
Emergency generator |
1x Diesel generatorset 375 kVA - 300 kW - 408 hp |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
81.621 m³ |
|
Slop tank capacity |
2.833 m³ |
|
Number of pumps |
3x Cargo pumps each 2.300 m³/h |
|
Number of tanks |
Ballast: 14 Cargo oil: 13 Lubricating oil: 12 Fuel oil: 8 Sludge: 5 Fresh water: 5 Diesel oil: 3 Chain: 2 Cargo oil or ballast water: 2 |
|
Number of tank |
12 |
|
Cargo tank capacity 98% |
81.347,017 m³ |
|
Natural segregation 98% |
Seg#1 (1P, 1S, 4P, 4S & Slop S): 26.931,857 m³ Seg#2 (2P, 2S, 5P & 5S): 28.417,857 m³ Seg#3 (3P, 3S, 6P, 6S & Slop P): 28.813,174 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
2.815,871 m³ |
|
Number of pumps |
2x Centrifugal ballast pimps each 1.500 m³/h 3x Centrifugal cargo pumps each 2.300 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 76,70 m Bow to centre manifold: 111,60 m Stern to centre manifold: 117,00 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.000 mm Distance manifold to ships side: 4.720 mm Top of rail to centre of manifold: 787,5 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 26.739 m³ Fuel oil: 1.703,28 m³ Gas oil: 558,54 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t 1x Hose handling crane - SWL 15,0 t 2x Hose handling davits - SWL 1,0 t each 1x Provision crane - SWL 5,0 t |
|
Commercial manager |
Hafnia Pools Pte. Ltd. Republic of Singapore |
|
ISM manager |
V Ships Asia Group Pte Ltd. 21-03/06, The Concourse, 300, Beach Road Singapore 199555 Republic of Singapore |
|
Registered owner |
BW Aldrich Pte Ltd. Care of BW Group Ltd. Suite 412, Washington Mall - Phase II, 22, Church Street Hamilton HM 11, Bermuda |
|
Renamed |
03/2022 Hafnia Kronborg Republic of Singapore, Singapore City - Call sign: 9V2882 ISM Manager: V.Ships Asia Group Pte. Ltd., Republic of Singapore Commercial manager: Hafnia Pools Pte. Ltd. - republic of Singapore Owner: BW Aldrich Pte Ltd. - Care of BW Group Ltd., Hamilton - Bermuda |
|
Latest data adjustment |
19 August 2022 |
