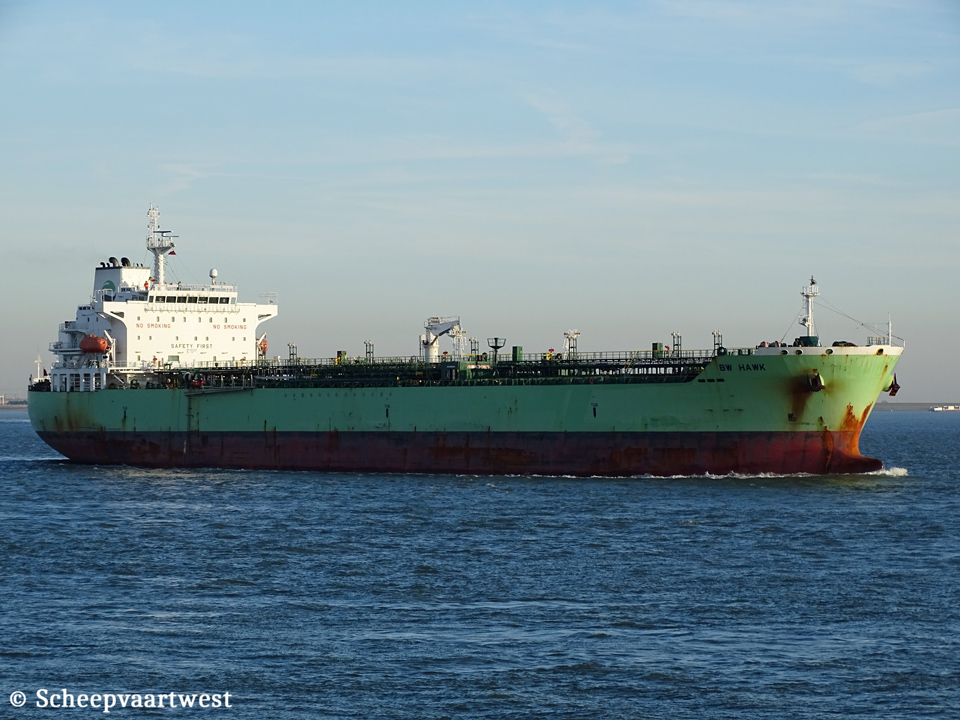

BW Hawk IMO 9607198 02

Westerschelde 06 January 2020

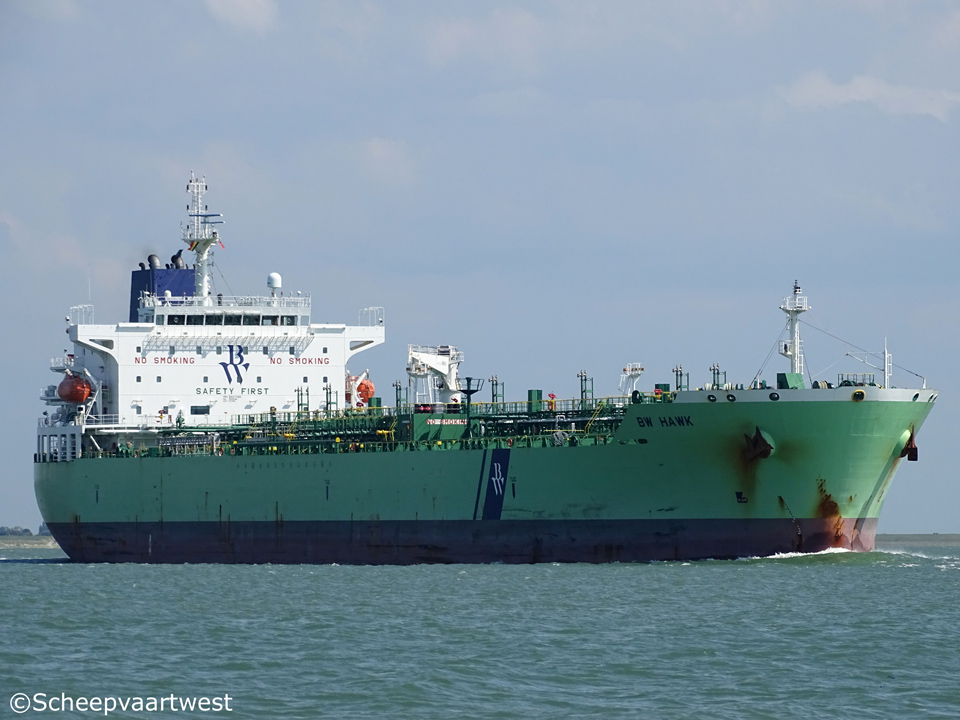

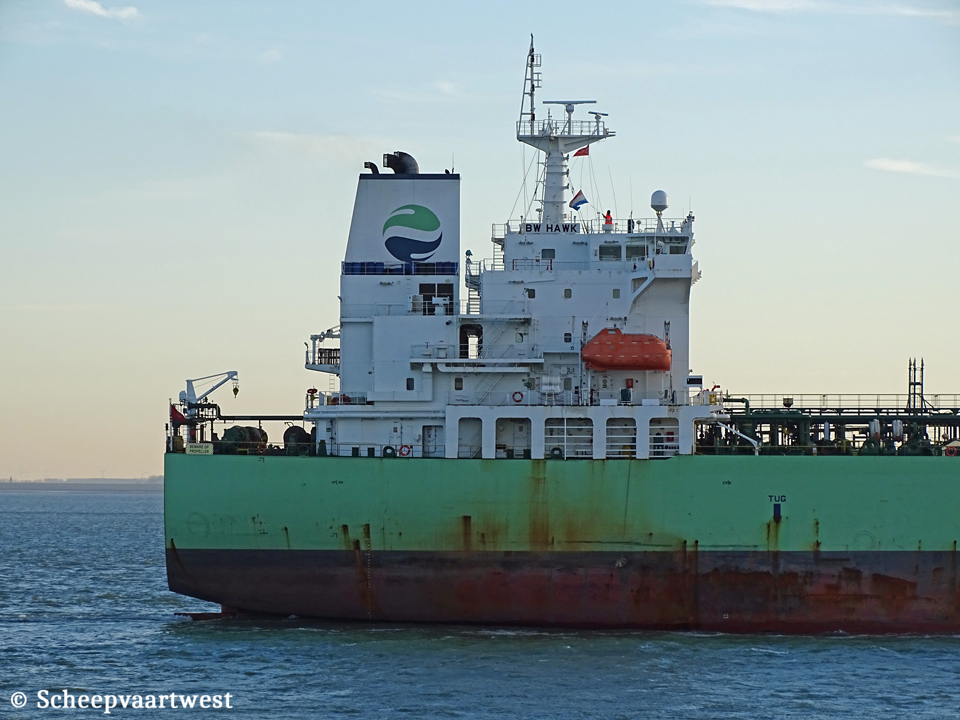

BW Hawk IMO 9607198 03   BW Hawk 01
Westerschelde 06/01/20 Westerschelde 06/08/17


Name

BW HAWK

Type

Chemical/Oil products tanker

IMO-number

9607198

Call sign

9V2920

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

Liberia, Monrovia

GT

29.783 t

Suez: 31.085,56 t

DWT

Summer: 49.999 t

Winter: 48.550 t

NT

13.756 t

Suez: 26.713,11 t

Panama: 24.722 t

Displacement

Summer: 60.837,5 t

Winter: 59.388,5 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 13,28 m

Winter: 13,01 m

Keel to masthead

48,60 m

Air draft

Summer deadweight: 32,32 m

Normal ballast: 41,35 m

Lightship: 45,75 m

Freeboard

Summer: 5.845 mm

Winter: 6.120 mm

Depth

19,10 m moulded

Speed

Ballast speed: Max: 12,5 knots - Economic: 11,0 knots

Laden speed: Max: 12,5 knots - Economic: 11,0 knots

Max.: 16,5 knots

Built

2015

Keel laid

19/12/2014

Launch date

15/03/2015

Date of completion

26/06/2015

Builder

SPP Shipbuilding Co., Ltd.

537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si,

Gyeongsangnam-Donam Do, 664-942

South Korea

Yard number

S5132

Hull material

Steel

Hull type

Double bottom with hopper

Double side with top wing

Main engine

1x Hyundai/MAN-B&W 6S50ME-B9.3 - 6 cylinder 500 x 2.214 mm combustion engine 7.660 kW at 99,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: Hye Yang Metal CP Ltd.

Boilers

1x Auxiliary boiler, exhaust gas heated - 9,0 MPa

1x Auxiliary boiler, composite - 9,0 MPa

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

3x Hyundai-Himsen 5H21/32 diesel generatorsets each 960 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorset

Number of cargo tanks

12

Cargo tank capacity

Seg#1: 6.149,4 m³ (1P&1S)

Seg#2: 9.070,0 m³ (2P&2S)

Seg#3: 9.440,1 m³ (3P&3S)

Seg#4: 9.437,6 m³ (4P&4S)

Seg#5: 9.385,4 m³ (5P&5S)

Seg#6: 8.245,2 m³ (6P&6S)

Number of slop tanks

2

Slop tank capacity 98%

1.192,4 m³

Total tank capacity 98%

51.727,7 m³

Pumps

12x Framo Submerged Centrifugal SD 200 cargo pumps each 600 m³/h

2x Framo Submerged Centrifugal SD 150 cargo pumps each 300 m³/h

2x Framo Submerged Centrifugal SB300 ballast pumps each 750 m³/h

Manifolds

Distance bridge front to center of manifold: 57,70 m

Bow to center manifold: 90,40 m

Stern to center manifold: 92,60 m

Distance between cargo manifold centers: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to center of manifold: 645 mm

Distance main deck to center of manifold: 2.100 mm

Spill tank grating to center of manifold: 900 mm

Tank capacities

Fuel oil: 1.237,20 m³

Ballast: 32.021,50 m³

Gas oil: 284,80 m³

Hydraulic oil: 19,80 m³

Lube oil: 101,20 m³

Fresh water: 325,70 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Engine room crane - SWL 4,5 t

1x Provision Crane - SWL 4,5 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Crew

26

Technical operator

BW Fleet Management Pte. Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City

Singapore 117438

Republic of Singapore

Commercial operator

Hafnia Pools Pte Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City

Singapore 117438

Republic of Singapore

Registered owner

BW Clearwater Pte Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City

Singapore 117438

Republic of Singapore

Disponent owner

Hafnia Pools Pte Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City

Singapore 117438

Republic of Singapore

Latest data adjustment

06 April 2021
