| Westerschelde 12 JUly 2020 |
|
Name |

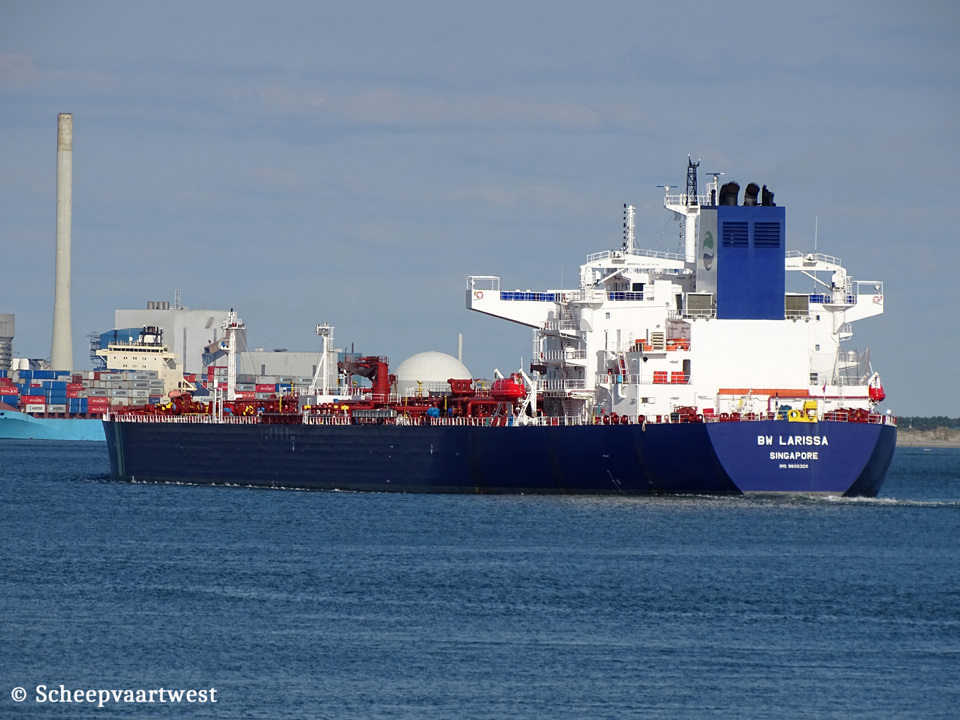

BW LARISSA |
|
Type |
Crude oil tanker- Aframax |
|
IMO-number |
9800300 |
|
Call sign |
9V9909 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
62.433 t Suez: 63.619,18 t |
|
DWT |
109.990 t |
|
NT |
33.289 t Suez: 57.403,37 t Panama: 61.296 t |
|
Displacement |
Summer: 119.289,80 t |
|
Length |
249,90 m overall 242,00 m between perpendiculars |
|
Breadth |
44,00 m extreme |
|
Draught |
Summer: 13,63 m |
|
Keel to masthead |
49,44 m |
|
Air draft |
Summer deadweight: 35,81 m Normal ballast: 40,66 m Lightship: 46,89 m |
|
Freeboard |
Summer: 7.616 mm |
|
Depth |
21,20m moulded |
|
Speed |
Ballast: Max: 12,5 knots - Economic: 11,0 knots Laden: 12,5 knots - Economic: 11,0 knots Max: 15,8 knots |
|
Built |
2019 |
|
Builder |
Daehan Shipbuilding Co Ltd. South Korea |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6G60ME-C9.5 - 6 cylinder combustion engine 13.450 kW / 18.292 bhp |
|
Propellers |
1x fixed propeller |
|
Generators |
3x STX/7L23/30H diesel generatorsets each 1.250 kW 1x STX/6L23/30H diesel generatorset 1.050 kW |
|
Number of tanks |
12 + 2 slop tanks P/S |
|
Cargo tank capacity 98% |
124.529,20 m3 - slop tanks |
|
Capacity of each natural segregation 98% |
Seg#1 (1P, 1S, 4P & 4S): 39.402,80 m³ Seg#2 (2P, 2S, 5P & 5S): 43.176,00 m³ Seg#3 (3P, 3S, 6P & 6S): 41.950,40 m³ Slops capacities not included |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
2.747,50 m³ |
|
Number of pumps |
3x Centrifugal cargo pumps each 3.000 m³/h 2x Centrifugal ballast pump each 1.800 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 79,10m Bow to centre manifold: 126,09 m Stern to centre manifold: 123,81 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 700 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 1.946,46 m³ Gas oil: 533,80 m³ |
|
Commercial manager |
CSSA Chartering And Shipping Services Sa World Trade Center 1 Po Box 170 1215 Geneva 15 Airport Switzerland Switzerland |
|
ISM manager |
BW Fleet Management Pte. Ltd. 10 Pasir Panjang Road, #18-01 Mapletree Business City Singapore 117438 Republic of Singapore |
|
Owner |
BW Aldrich Pte Ltd. 10 Pasir Panjang Road, #18-01 Mapletree Business City Singapore 117438 Republic of Singapore |
|
Disponent owner |
CSSA Chartering And Shipping Services Sa World Trade Center 1 Po Box 170 1215 Geneva 15 Airport Switzerland Switzerland |
|
Latest data adjustment |
10 December 2021 |
