Westerschelde 16 November 2015 |
|
Name |

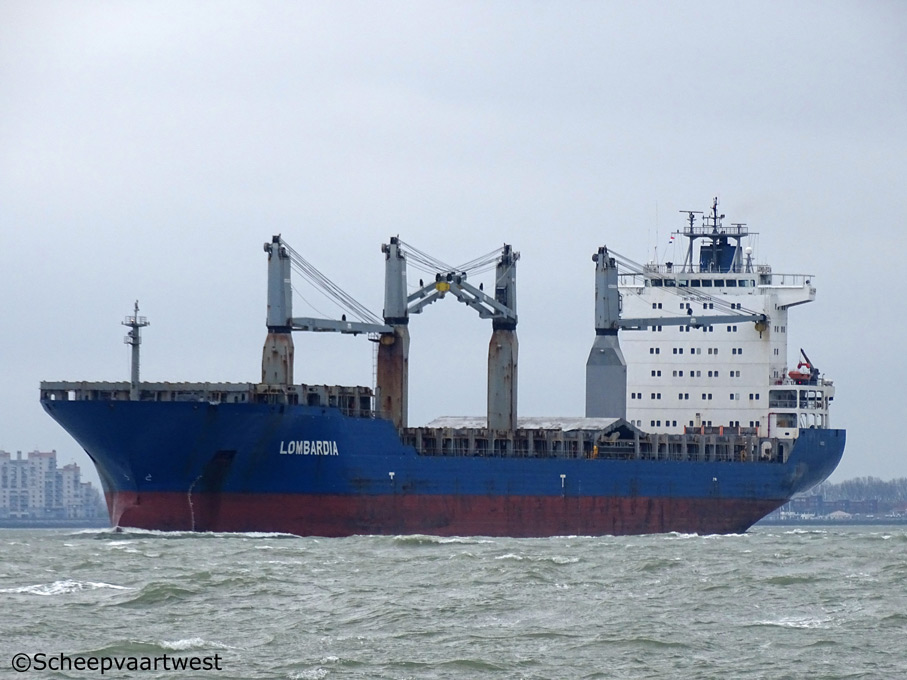

LOMBARDIA |
|
Type |
General cargo ship - Single deck - Strengthened for heavy cargo Open hatch box shaped |
|
IMO-number |
9309514 |
|
Call sign |
9HWT7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
24.960 t |
|
DWT |
Summer: 35.014 t |
|
NT |
12.313 t |
|
Number of 20ft containers |
1.866 |
|
Number of 40ft containers |
912 |
|
Reefer plug |
100 |
|
Length |
188,35 m overall 177,03 m between perpendiculars |
|
Breadth |
27,71 m extreme 27,67 m moulded |
|
Moulded L x B x D |
177,03 x 27,67 x 15,51 m |
|
Registered L x B x D |
178,32 x 27,68 x 15,51 m |
|
Draught |
Summer: 11,31 m |
|
Freeboard |
4.232 mm |
|
Depth |
15,51 m moulded |
|
Speed |
14,0 knots laden 14,5 knots ballast |
|
Built |
2005 |
|
Keel laid |
24.04.2004 |
|
Launch date |
13.12.2004 |
|
Date of completion |
30.03.2005 |
|
Builder |
Kouan Shipbuilding Industry Co. |
|
Yard number |
KA208 |
|
Hull material |
Steel |
|
Main engine |
1x Sulzer 6RTA48T-B - 2 stroke single acting 6 cylinder 480 x 2.000 mm diesel engine 8.730 kW at 127,0 rpm Manufacturer: Yichang Marine Diesel Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 480 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 2,70 t/h Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
4x generators - 2.406 kVA |
|
Number of holds |
9 Grain/ bale Hold 1: 13,60 x 20,00 x 16,00 m Hold 2: 13,60 x 23,00 x 16,00 m Hold 3: 16,00 x 23,00 x 16,00 m Hold 4: 13,60 x 23,00 x 16,00 m Hold 5: 16,00 x 23,00 x 16,00 m Hold 6: 13,60 x 23,00 x 16,00 m Hold 7: 16,00 x 23,00 x 16,00 m Hold 8: 13,60 x 23,00 x 16,00 m Hold 9: 13,60 x 23,00 x 16,00 m |
|
Hold capacity |
Grain/ bale Hold 1: 4.000 m³ Hold 2: 5.012 m³ Hold 3: 5.661 m³ Hold 4: 5.013 m³ Hold 5: 5.640 m³ Hold 6: 5.013 m³ Hold 7: 5.650 m³ Hold 8: 4.896m³ Hold 9: 3.788 m³ Grain/ bale: 44.673 m³ |
|
Number of hatches |
9 hatch 1: 12,80 x 20,00 m Hatch 2-9: 12,80 x 23,00 m |
|
Hatch type |
Mac Gregor hydraulic folding type closed construction with flush type grain feeder openings |
|
Permissible loads |
Cargo hold tank tops: Abt. 20,00 t/m² Main deck: Abt. 4,00 t/m² Hatch covers: Abt. 3,00 t/m² |
|
Tank capacities |
Heavy fuel oil tank: 1.950 m³ Diesel oil: 118 m³ Ballast water tank: 13.592 m³ Fresh water: 193 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Cargo gear |
4x Cranes - SWL 40,0 t each Working radius: Max. 26,00 m |
|
Manager |
F.H. Bertling Reederei GmbH |
|
Registered owner |
MS "LOMBARDIA" Schiffahrtsgesellschaft mbH & Co.KG |
|
Previous owners |
2005 - 2008 MS "LOMBARDIA" Schiffahrtsgesellschaft mbH & Co.KG 2008 - 2010 Lombard Corporate Finance (December 3) Limited |
|
Latest data adjustment |
20 December 2015 |
