Westerschelde 09 November 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 10/09/18 | Westerschelde | Westerschelde 30/04/20 | Westerschelde 30/04/20 | Westerschelde 15/01/20 | Westerschelde 23/04/18 | |||||
|
Name |

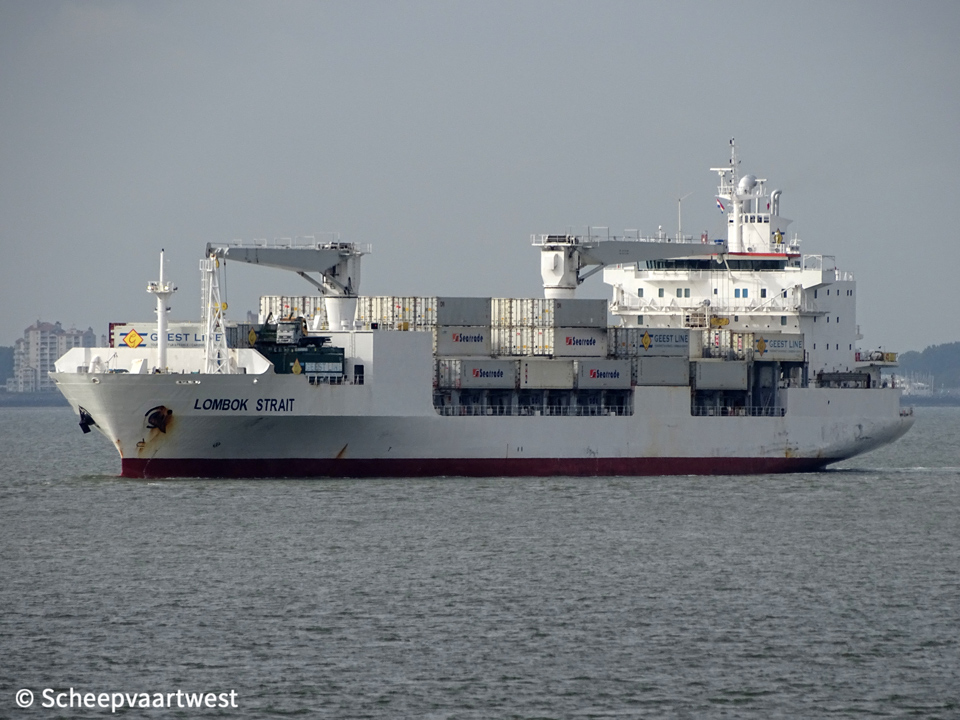

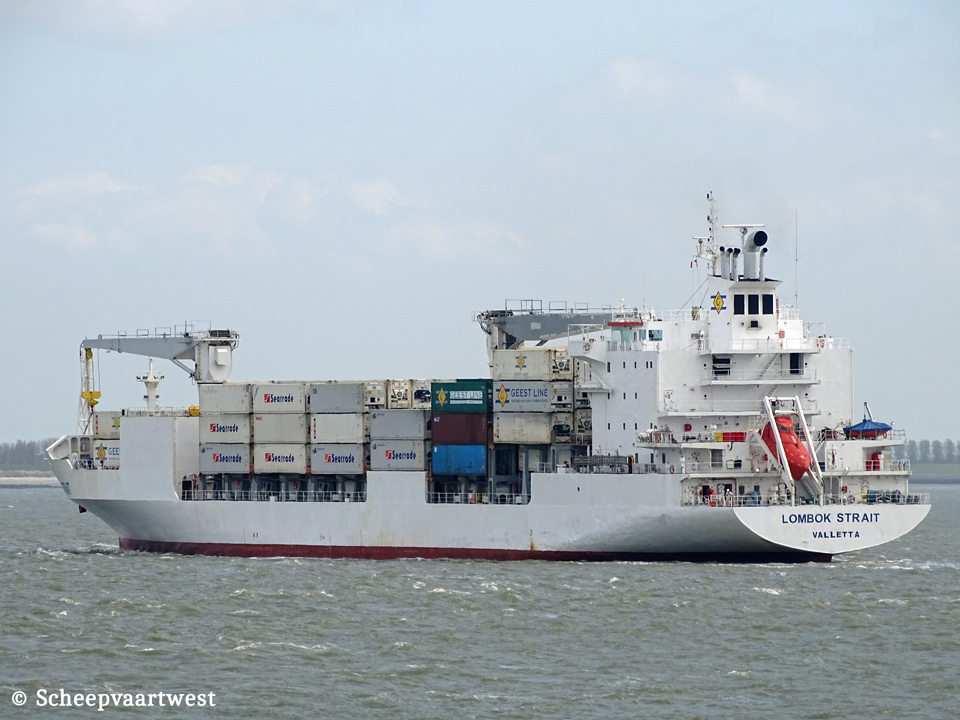

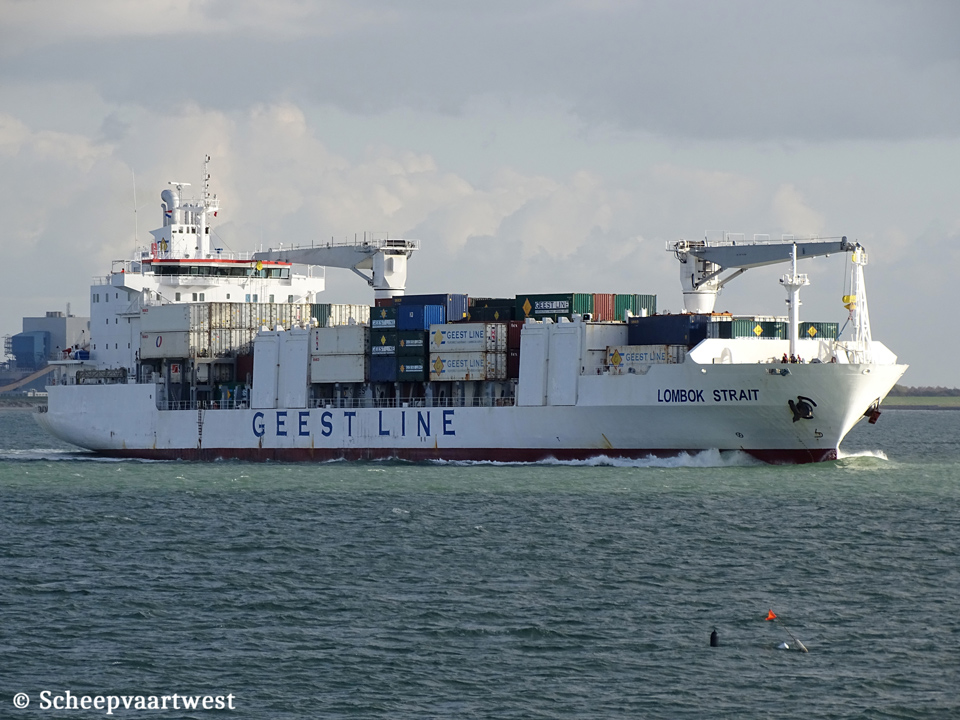

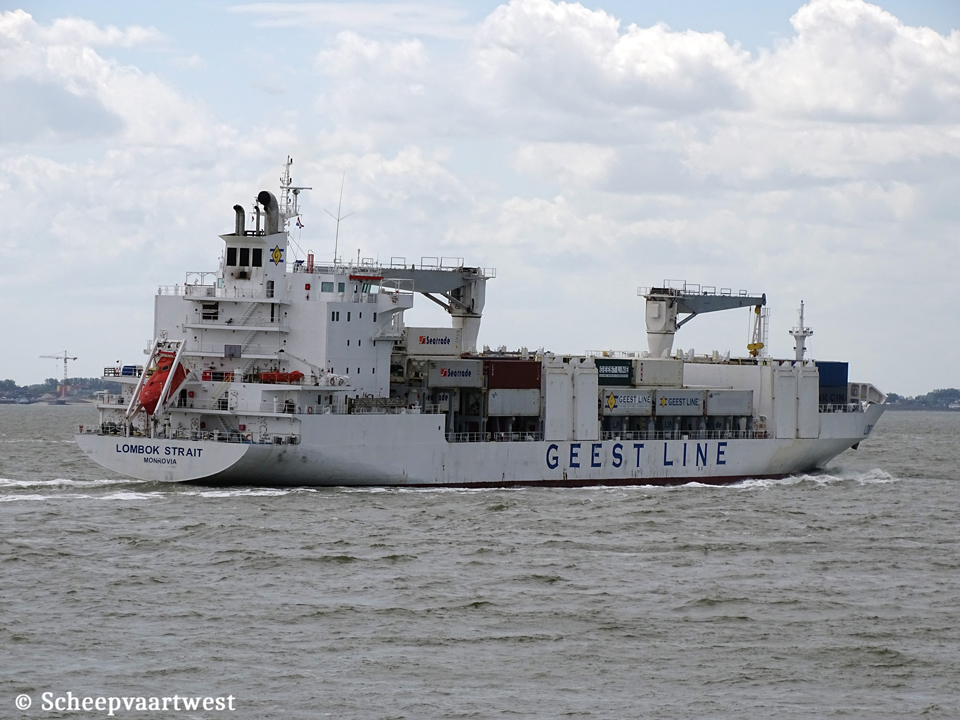

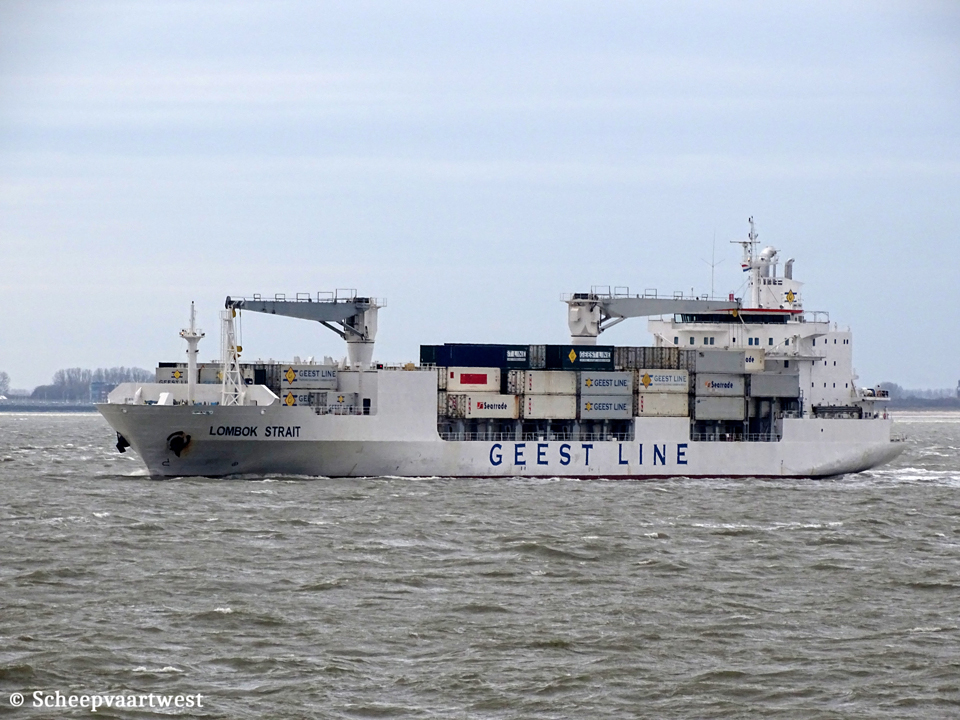

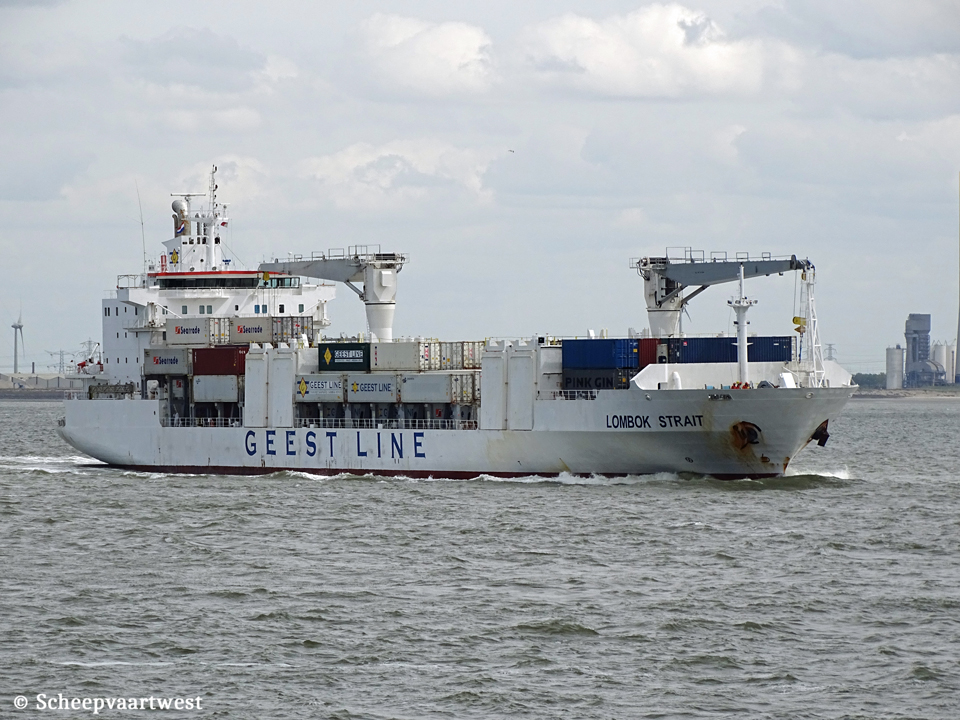

LOMBOK STRAIT |
|
Previous names |
2002 Launch as: Leopold Max |
|
Type |
Refrigerated cargo ship - Container ship |
|
IMO-number |
9204958 |
|
Call sign |
D5WC6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2002 - 2006 The Netherlands, Groningen - Call sign: PBHR 2006 - 2014 Liberia, Monrovia - Call sign: A8IO3 2014 - 2020 Malta, Valletta - Cal sign: 9HA3797 |
|
GT |
14.413 t |
|
DWT |
Summer: 13.512 t |
|
NT |
7.536 t Panama: 12.563 t Suez: 12.848 t |
|
Number of 20ft containers |
On deck: 440 |
|
Number of 40ft containers |
On deck: 200 |
|
Reefer capacity |
206 |
|
Length |
167,00 m overall 156,17 m between perpendiculars |
|
Breadth |
25,00 m |
|
Draught |
Max: 9,31 m |
|
Freeboard |
3.411 mm |
|
Depth |
13,40 m |
|
Speed |
Max: 21,0 knots |
|
Built |
2002 |
|
Keel laid |
06/03/2000 |
|
Launch date |
2002 |
|
Date of completion |
14/08/2002 |
|
Builder |
CSBC - China Shipbuilding Corporation Keelung Taiwan |
|
Yard number |
729 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
4 |
|
Main engine |
1x Hyundai/MAN-B&W-7S60MC - 2 stroke single acting 7 cylinder 600 x 2.290 mm combustion engine 15.785 kW / 21.447 hp at 105,0 rpm Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach Div., Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid aft at 105,0 rpm |
|
Boilers |
1x CHO Aalborg 235,60 m² - 7,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 110 V Frequency: 60 Hz |
|
Generators |
4x Main diesel generatorsets each 1.875 kVA - 1.500 kW - 2.198 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 148 hp |
|
Bow thruster |
1x 770 kW |
|
Number of holds |
4 |
|
Number of compartments |
15 |
|
Temperature zones |
8 |
|
Total hold capacity |
17.726,65 m³ / 626,011 ft³ |
|
Reefer cargo space |
7.340,55 m² |
|
Cargo hatchways |
4 6,20 x 3,90 m each |
|
Min deck height |
2,25 m |
|
Pallets |
9.681 |
|
Tank capacities 100% |
Fuel oil: 2.017 m³ MGO: 223 m³ |
|
Cargo gear |
2x Cranes - SWL 45,0 t each 4x Sideloaders - SWL 12,5 t each |
|
Commercial manager |
Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Previous managers |
07/2002 - 03/2006 Seatrade Groningen B.V., Groningen - The Netherlands 03/2006 - 01/2020 Triton Schiffahrts GmbH, 26789 Leer - Germany |
|
Operator |
Geest Line Limited Eaglepoint Little Park Farm Road Fareham PO15 5TD United kingdom |
|
Registered owner |
Verde Enterprises Inc., Monrovia - Liberia Care of Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Previous owners |
07/2002 - 03/2006 B.V. Shipping Company Lombok Strait, Groningen, The Netherlands 07/2002 - 01/2020 Lombok Strait Schifffahrtsgesellschaft mbH & Co. KG, Leer - Germany |
|
Latest data adjustment |
20 August 2022 |
