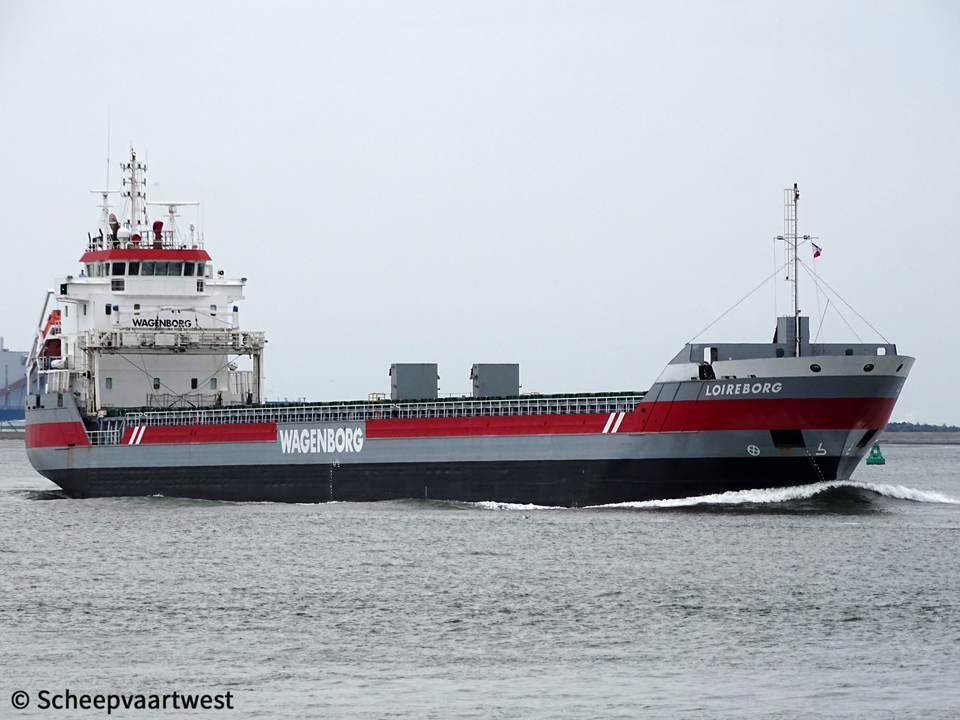

Loireborg 01

Westerschelde 20 July 2018



Name

LOIREBORG

Type

Multi-purpose dry cargo carrier

IMO-number

9399404

Call sign

PHPT

Flag

The Netherlands

Port of registry

Delfzijl

GT

4.695 t

DWT

Summer: 7.350 t

DWCC

Summer: 6.900 t

NT

2.558 t

Number of 20ft containers

304

Length

122,34 m overall

115,97 m between perpendiculars

Breadth

14,40 m

Draught

Summer: 6,50 m

Winter: 6,36 m

Air draft

32,40 m in ballast

Freeboard

1.613 mm

Depth

8,10 m moulded

Speed

13,0 knots

Built

2008

Keel laid

20/11/2006

Launch date

13/05/2008

Date of completion

04/07/2008

Builder

Royal Niestern Sander BV
Delfzijl
The Netherlands

Yard number

836

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm

Built: 2008

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1 Screw propeller controllable pitch - aft

Shaft generator

1x 344 kVA - 275 kW

Generators

1x Diesel generatorset 120 kVA - 96 kW - 272 hp

2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp

Bow thruster

350 kW, forward

Number of holds

2x Fully box and double skinned

Hold 1: 45,18 x 11,71 x 8,98 m

Hold 2: 44,48 x 11,71 x 8,98 m

Cargo hold capacity

Grain: 9.163 m³ / 323.779 ft³

Hold ventilation

15 air changes per hour basis empty holds

Both holds fitted with dehumidifier system

Number of hatches

2x Fully open hatches

Hatch 1: 45,18 x 11,71 m

Hatch 2: 44,48 x 11,71 m

Hatch type

Rodenstaal steel pontoon hatches

Tank capacities

HFO: 363 m³

MGO: 89 m³

Water ballast: 3.239 m³

Fresh water: 68 m³

Manager

Wagenborg Shipping BV
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Registered owner

Scheepvaartonderneming Loireborg BV
Delfzijl
The Netherlands

Previous owners

07/2008 - 03/2009 Wagenborg Capital B.V., Delfzijl - The Netherlands

Latest data adjustment

22 March 2019
