Westerschelde 12 June 2014 |
 |
| Westerschelde 18/10/14 |
|
Name |

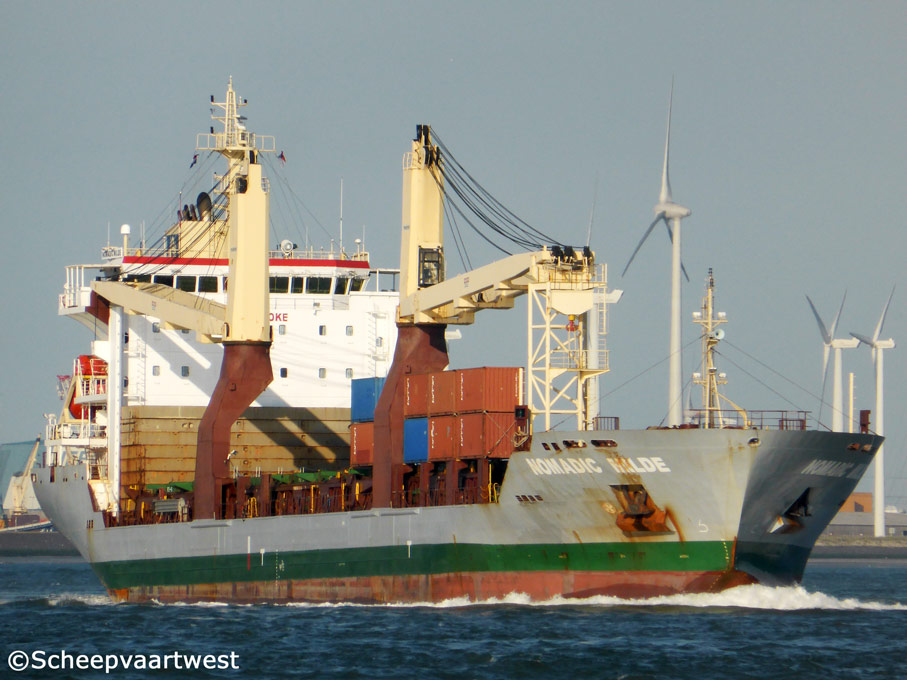

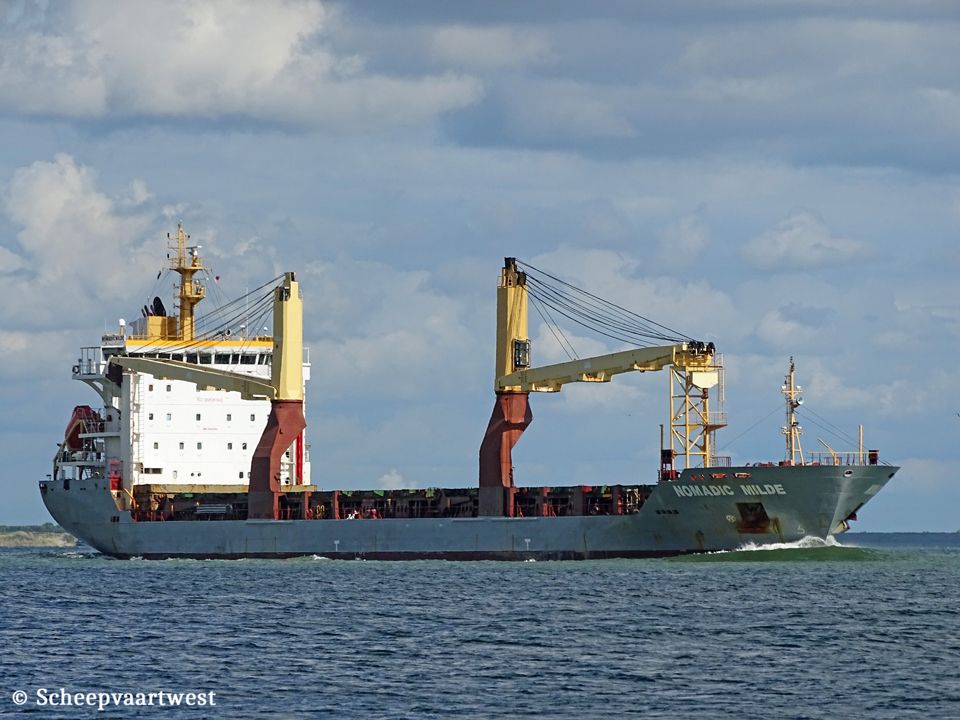

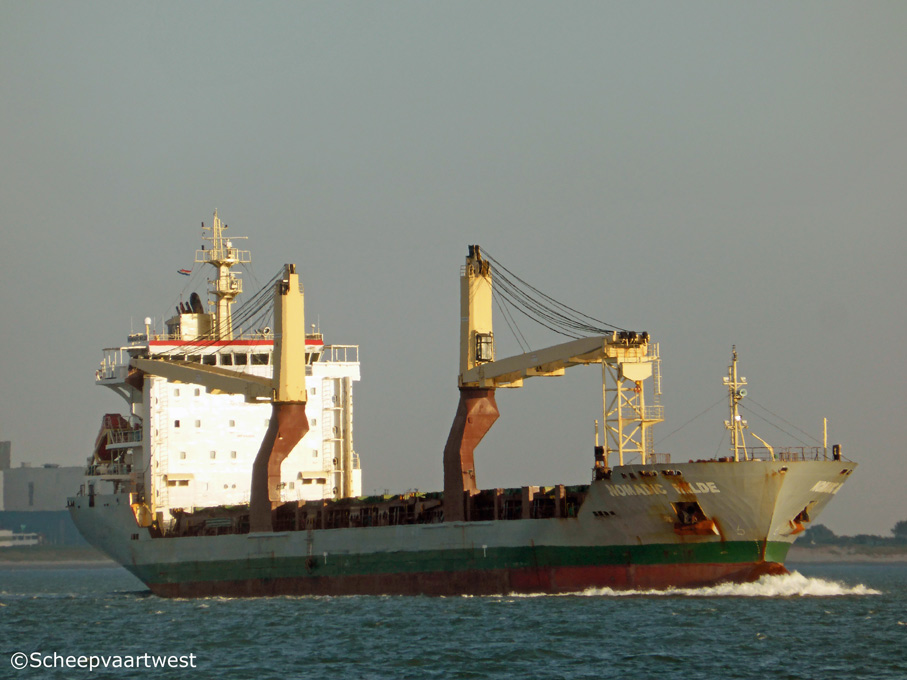

NOMADIC MILDE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Tween open-hatch box |
|
IMO-number |
9463554 |
|
Call sign |
2DPQ2 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
9.530 t |
|
DWT |
12.959 t |
|
NT |
4.398 t |
|
Number of 20ft containers |
In hold: 366 On deck: 405 Total: 771 |
|
Length |
138,06 m overall 130,71 m registered |
|
Breadth |
21,33 m |
|
Draught |
8,06 m |
|
Forecastle |
9,96 m |
|
Poop |
12,45 m |
|
Depth |
11,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2011 |
|
Keel laid |
15.11.2008 |
|
Launch date |
01.02.2010 |
|
Date of completion |
19.01.2011 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. |
|
Yard number |
YZJ2007-792 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm Year of manufacture: 2010 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 125,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10, bar Heating surface: 184,0 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39, m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg B.V. |
|
Electric installations |
3x Plants each 450 V - 562,5 kVA 1x Plant 450 V - 938 kVA 1x Plant 450 V - 313 kVA 1x Plant 24 V - 12 Ah 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Shaft generator |
1x 938 kVA |
|
Generators |
3x Yanmar 6N18L-SV main diesel generatorsets each 562,5 kVA |
|
Emergency generator |
1x Caterpillar 4XCAT43406 diesel generatorset 313 kVA |
|
Batteries |
1x Battery for other purpose 200 Ah 2x Batteries for start emergency engine each200 Ah 1x Battery for other purpose 150 Ah 1x Battery for other purpose 150 Ah 1x Battery for other purpose 12 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Number of holds |
2 Hold 1: 37,50 m x 17,50 m Hold 2: 50,25 m x 17,50 m |
|
Hold capacity |
Hold 1: 6.436 m³ |
|
Number of hatches |
2 Hatch 1: 37,50 m x 17,50 m Hatch 2: 50,25 m x 17,50 m |
|
Hatch type |
Macgregor folding type hatchcovers |
|
Max. permitted loads |
Tanktop strength: 16,0 t/m² |
|
Tank capacities |
Fuel oil: 900 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
2x Cranes - SWL 80,0 t each starboard side mounted cranes combinable SWL 160,0 Outreach cranes: 80 t on 19,00 m |
|
Crew size |
17 |
|
Manager |
Carisbrooke Shipping Ltd. |
|
Registered owner |
Nomadic Short Sea Shipping AS |
|
Latest data adjustment |
17 July 2014 |
