Westerschelde 25 November 2017 |
|
Name |

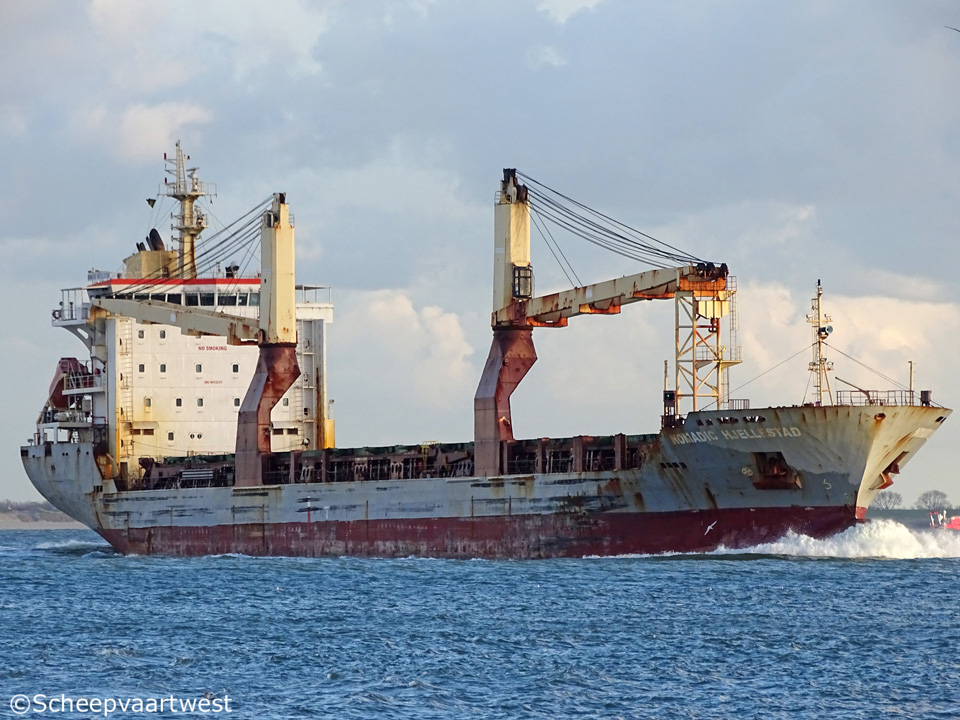

NOMADIC HJELLESTAD |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9452220 |
|
Call sign |
V7ZX6 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
Previous flags |
2010 - 2015 Isle of Man, Douglas |
|
GT |
9.530 t |
|
DWT |
12.940,9 t |
|
NT |
4.398 t |
|
Number of 20ft containers |
On deck: 366 Inhold: 405 Total: 771 |
|
Length |
138,06 m overall 130,00 m between perpendiculars |
|
Breadth |
21,33 m extreme 21,00 m moulded |
|
Draught |
8,05 m |
|
Depth |
11,00 m |
|
Speed |
15,0 knots |
|
Built |
2010 |
|
Keel laid |
15.10.2008 |
|
Launch date |
09.09.2009 |
|
Date of completion |
25.01.2010 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. China |
|
Yard number |
YZJ2007-774 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm diesel engine 5.400 kW / 7.337 hp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39,00 m² 1x Thermal oil heater, exhaust heated - 10,0 bar Heating surface: 184 m² |
|
Shaft generator |
1x Yanmar 6N18L-SV - 938 kVA /750 kW |
|
Generators |
1x Volvo Penta D16-MG main diesel generatorset each 625 kVA - 500 kW - 679 hp 2x Volvo Penta D16C-A main diesel generatorsets 625 kVA - 500 kW - 679 hp |
|
Emergency generator |
1x Volvo Penta D12D-E MG/RC diesel generatorset 346 kVA - 277 kW - 376 hp |
|
Bow thruster |
1x 550 kW |
|
Number of holds |
2 Hold 1: 37,50 m x 17,50 m (for 25,50 m) narrowing to 15,01 m width (for 6,00 m) and 10;05 m width (for 6,00 m) Hold 2: 50,25 m x 17.50 m narrowing to 14,00 m width (for 5,00 m) |
|
Hold capacity |
Hold 1: 6.436 m³ Hold 2: 9.894 m³ Total: 16.230 m³ |
|
Tweendeck |
Tweendecks arranged by means of moveable vertical/horizontal panels Total 16 panels: 7 in hold 1 + 9 in hold 2 Size of panels varies 4,20 m/6,6 m long x 10/17,38 m width Total weight 16 panels 416 t |
|
Tweendeck heights holds |
Hold 1: Height from tanktop to top of hatch coaming 10,65 m Tweendeck in hold 1 – 1 single height level: 3,85 m below tween / 6,00 m above tween Hold 2: Height from tanktop to top of hatch coaming 10,95 m Tweendeck in hold 2 – 2 different height levels: Pos 1 = 4,15 m below tween / 6,00 m above tween Pos 2 = 1,80 m below tween / 8,35 m above tween |
|
Number of hatches |
2 Hatch 1: 37,50 x 17,50 m Hatch 2: 50,25 x 17,50 m |
|
Hatch cover type |
Macgregor folding type |
|
Max? Permitted loads |
Tanktop: 16,0 t/m² Tweendeck: 4,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 900 m³ |
|
Anchor equipment |
Length: 545,30 m Diameter: 52 |
|
Cargo gear |
2x Cranes - SWL 80,0 t each Starboard side mounted cranes combinable - SWL 160 t |
|
Manager |
Intership Navigation Co. Ltd. |
|
Registered owner |
New Nomadic Short Sea Shipping AS |
|
Latest data adjustment |
08 January 2018 |
