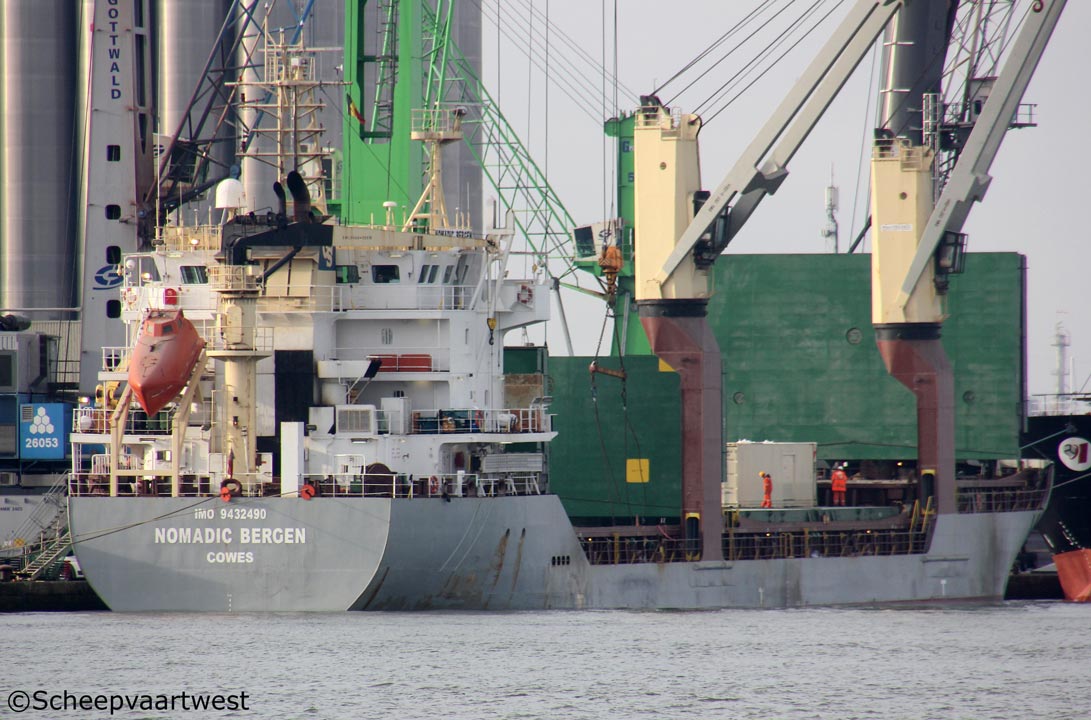

Nomandic Bergen - IMO 9432490

Antwerpen 23 December 2016

Name

NOMADIC BERGEN

Type

General cargo ship - heavycargo

IMO-number

9432490

Call sign

2BYA3

Flag

Isle of Wight - United Kingdom

Port of registry

Cowes

GT

5.629 t

DWT

Summer: 8.057 t

NT

2.877 t

Length

108,20 m overall

103,90 m between perpendiculars

Breadth

18,20 m

Draught

7,06 m

Freeboard

2.023 mm

Depth

9,00 m

Speed

12,4 knots

Built

2009

Date of completion

05.05.2009

Builder

Jiangsu Yangzijiang Shipbuilding Co.,Ltd.
China

Yard number

726

Hull material

Mild steel

Main engine

1x Mak-Caterpillar 6M32C - 4 stroke 6 cylinder diesel engine 2.999 kW / 4.075 hp at 600 rpm

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHM 18979 17,10 m² - 8,0 bar

Generators

2x Lindenberg D2876 main diesel generatorsets each 488 kVA - 390 kW - 530 hp

Emergency generator

1x Lindenberg D2866 diesel generatorset 391 kVA - 313 kW - 425 hpd

Bow thruster

1x 255 kW

Number of holds

3

Hold 1: 18,80 x 15,00 m - Height 11,00 m hold starts to gradually narrow about 2,20 m from the aft bulkhead to width of about 6,40 m at forepeak bulkhead
Hold 2: 29,00 x 15.,0 x 9.00 m (l/b/h) no narrowing
Hold 3: 28,00 x 15,00 - Height 9,00 m hold starts to narrow 17,00 m from forward bulkhead to a width of about 7,60 m at the aft bulkhead

Total capacity of holds

Grain:

Hold 1: 95.844 ft³
Hold 2: 137.837 ft³
Hold 3: 130.984 ft³

Total: 364.665 ft³ / 10.233 m³

Hold ventilation

Mechanical ventilation system - 6 changes per hour

Number of hatches

3

Hatch 1: 17,50 x 15,20 m
HA 2: 25,90 x 15,20 m
HA 3: 25,90 x 15,20 m

Hatch cover

Hydraulic folding type hatchcovers

Max.: permitted loads

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 526,3 m³

Cargo gear

2x MacGregor cranes - SWL 25,0 t each starboard side

Operator

Carisbrooke Shipping Limited
38 Medina Road
Cowes
Isle of Wight
United Kingdom

Registered owner

Nomadic Short Sea Shipping A.S.
Bergen
Norway

Latest data adjustment

04 January 2017
