| Westerschelde 05 July 2020 |
|
Name |

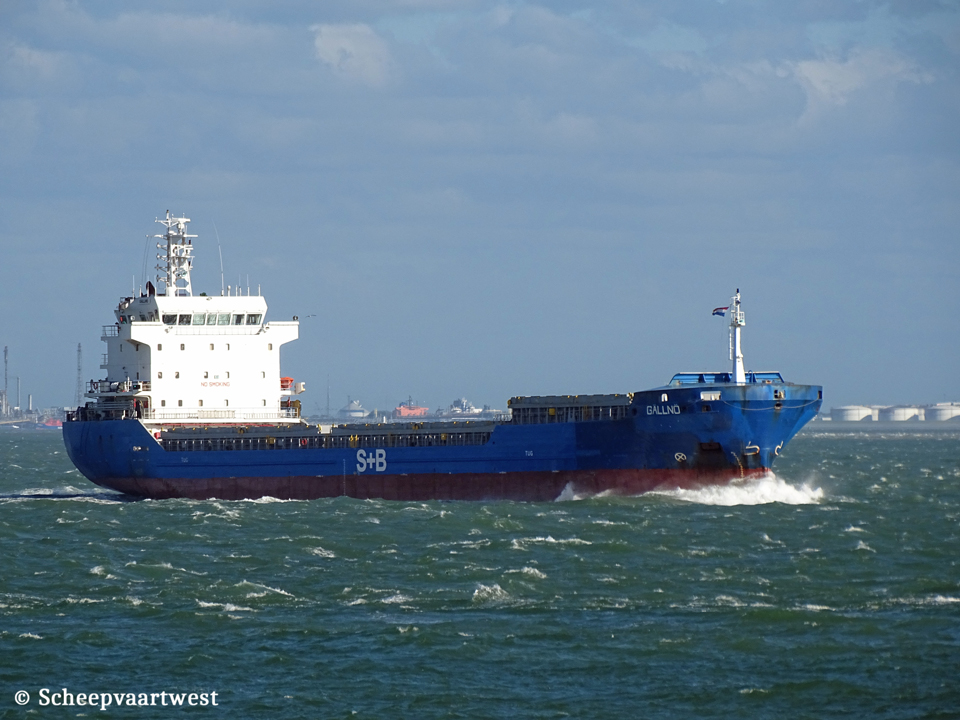

GALLNO (GÄLLNÖ) |
|
Previous names |
2007 - 2016 Laakdiep |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9408889 |
|
Call sign |
D5AI5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2007 - 2010 Portugal, Madeira - Call sign CQOE 2010 - 2013 Antigua & Barbuda - St. John’s - Call sign: V2FC8 |
|
GT |
5.598 t |
|
DWT |
Summer 7.777 t |
|
NT |
2.883 t |
|
Light displacement |
Light ship: 2.868 t Loaded: 10.980 t |
|
Length |
108,20 m overall 103,90 m between perpendiculars |
|
Breadth |
18,20 m |
|
Draught |
Summer: 6,82 m laden |
|
Air draft |
28,00m ballast |
|
Depth |
9,00 m moulded |
|
Speed |
Service: 11,5 knots |
|
Built |
2007 |
|
Keel laid |
15/03/2006 |
|
Launch date |
28/10/2006 |
|
Date of completion |
02/07/2007 |
|
Builder |
Nanjing Huatai Shipyard Co., Ltd. Nanjing China |
|
Yard number |
YT05-4-01 |
|
Hull material |
Ordinary steel |
|
Hull type |
Double side-skin |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 3.000 kW / 4.079 hp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Exhaust composite boiler Aalborg AQ-16 |
|
Generators |
2x MAN Lindenberg D2866 LXE main diesel generatorsets each 265 kW |
|
Emergency generator |
1x Diesel generatorset 265 kW |
|
Bow thruster |
1x 300 kW |
|
Number of holds |
3 Hold 1: 18,90 x 15,20 m / 6,10 x 11,20 m Hold 2: 29,40 x 15,20 x 9,10 m hold 3: 27,30 x 15,20 / 8,25 x 9,10 m |
|
Cargo hold capacity |
Hold 1: abt 97.100 ft³/ 2.772 m³ Hold 2: abt 136.000 ft³ / 3.903 m³ Hold 3: abt 127.000 ft³ / 3.616 m³ Total: 360,100 ft³ / 10.291 m³ |
|
Hold ventilation |
6x Air changes per hour, mechanical |
|
Number of hatches |
3 Hatch 1: 17,50 x 15,20 m Hatch 2: 25,90 x 15,20 m Hatch 3: 25,20x 15,20 m |
|
Hatch cover type |
TTS Transfolding hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch 1: 2,20 t/m² Hatches 2,3: 3,50 t/m² |
|
Tank capacities |
HFO: 392 m³ (98%) MGO: 69 m³ (98%) Fresh water: 100 m³ Water ballast: 2.200 m³ |
|
Crew |
15 |
|
Commercial manager |
Schulte & Bruns GmbH & Co KG Postfach 70 26871 Papenburg Germany |
|
ISM manager |
Hartmann Dry Cargo Germany Koenigstrasse 23 26789 Leer Germany |
|
Registered owner |
Vindo Schiffahrtsgesellshaft Care of Schulte & Bruns GmbH & Co KG Postfach 70 26871 Papenburg Germany |
|
Previous names & owners |
2007 - 2016 Laakdiep - Hesse SGmbH & Co. MS "Markasit" KG |
|
Renamed |
2002 - 2023 Manisa Mathilde Portugal, Madeira - Call sign: CQOE 09/2023 Kris Antigua & Barbuda, St. John’s - Call sign: V2RB8 Owner: Hansa Shipping Ou, Tallinn - Estonia Manager: Hansa Ship Management OU, Tallinn - Estonia |
|
Latest data adjustment |
29 March 2024 |
