| Westerschelde 19 April 2017 |
|
Name |

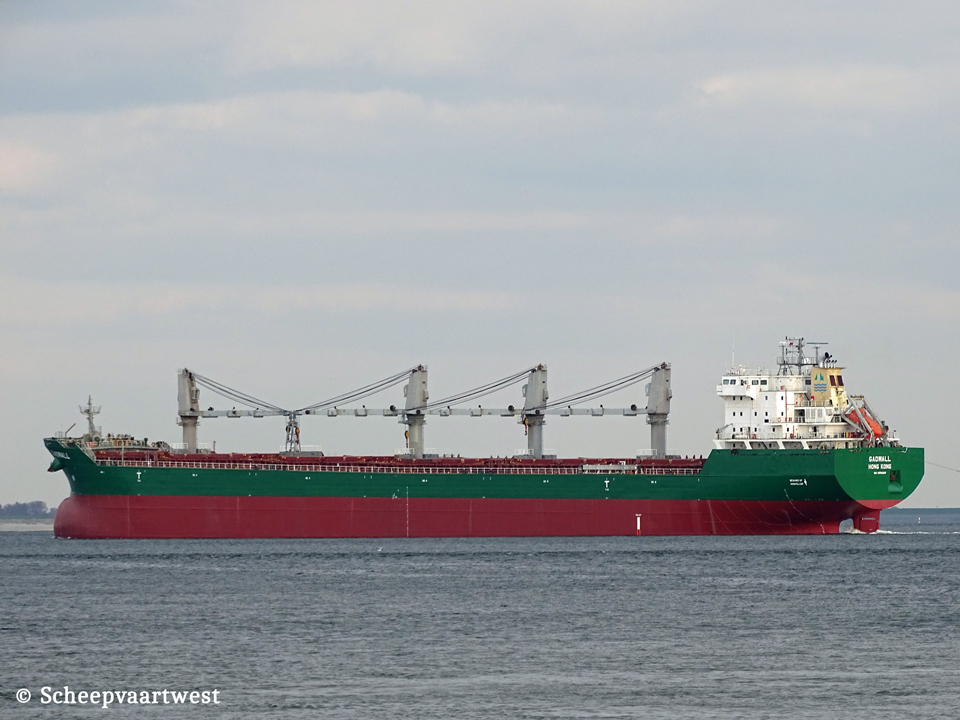

GADWALL |
|
Type |
Bulk carrier |
|
IMO-number |
9358369 |
|
Call sign |
VRCJ6 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
22.790 t |
|
DWT |
Summer: 37.249 t |
|
NT |
12.130 t |
|
Length |
199,90 m overall |
|
Breadth |
23,70 m moulded |
|
Draught |
Summer: 11,27 m |
|
Moulded L x B x D |
192,00 x 23,70 x 15,30 m |
|
Registered L x B x D |
192,71 x 23,70 x 15,30 m |
|
Keel to mast end |
40,90 m |
|
Freeboard |
Summer: 4.054 mm |
|
Depth |
15,30 m moulded |
|
Speed |
14,5 knots |
|
Built |
2007 |
|
Keel laid |
28/10/2004 |
|
Launch date |
12/12/2006 |
|
Date of completion |
20/03/2007 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. China |
|
Yard number |
SB348-1 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
18 |
|
Continuous decks |
1 |
|
Main engine |
1x Hudong/MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 7.860 kW/ 10.686 hp at 129,0 rpm Builder: Hudong Heavy Machinery Co. Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 525 mm |
|
Propellers |
1x Fixed pitch propeller Builder: Wuhan Heavy Industry Casting & Forging Co., Ltd. |
|
Boilers |
1x Composite exhaust gas - 9,0 bar 1x Fired boiler - 9,0 bar Builder: Allborg Industries Ltd. |
|
Generators |
3x Taiyo FE547B-8 main diesel generatorsets each 825 ekW Builder: Taiyo Electric Co.,Ltd. Gifu Factorydiesel generatorsets |
|
Bow thruster |
1x 900 kW |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain: 42.799 m³ Bale: 42.351 m³ |
|
Number of hatches |
6 |
|
Tank capacities |
Ballast: 8.025,9 m³ Diesel oil: 120,99 Freshwater: 487,03 m³ Fuel oil: 1.776,54 m³ Lube oil: 162,02 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 3,0 t builder: Jiangyin East China Marine Fitting Co. Ltd. 1x Provision crane - SWL 2,0 t Builder: Qingdao Beihai Shipbuilding Heavy Industry Co. Ltd. |
|
Cargo gear |
4x IHI cargo cranes - SWL 40,0 t each |
|
Crew size |
26 |
|
Manager |
Parakou Shipping Hong Kong China |
|
Registered owner |
Parakou Shipping Hong Kong China |
|
Renamed |
04/2017 Maria G Malta, Valletta - Call sign: 9HA4557 Owner: Broalam AB, 191 35 Sollentuna, Stockholm - Sweden Manager: FCN Management Inc., Athens - Greece |
|
Latest data adjustment |
01 May 2023 |
