| Westerschelde 18 April 2016 |
 |
 |
|
| Westerschelde 19/04/16 | Westerschelde 19/04/16 | |
|
Name |

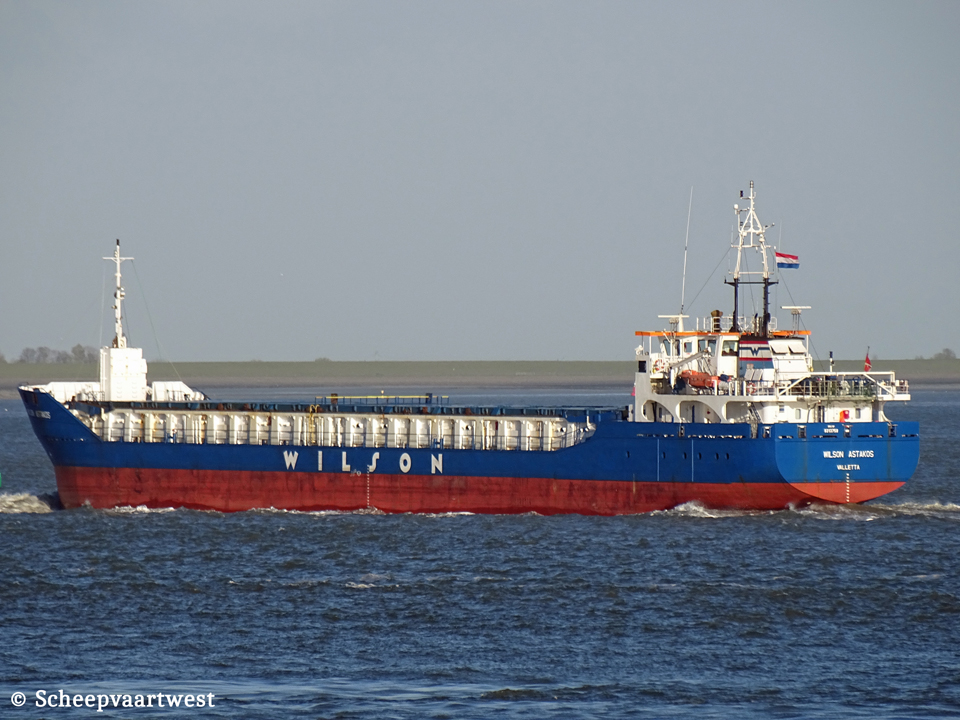

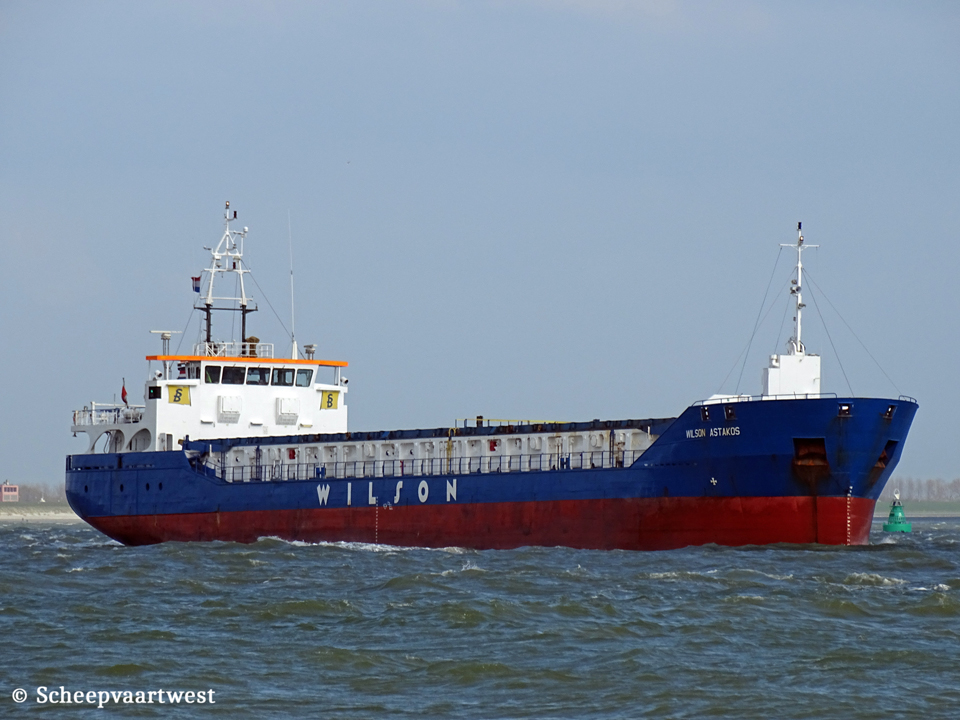

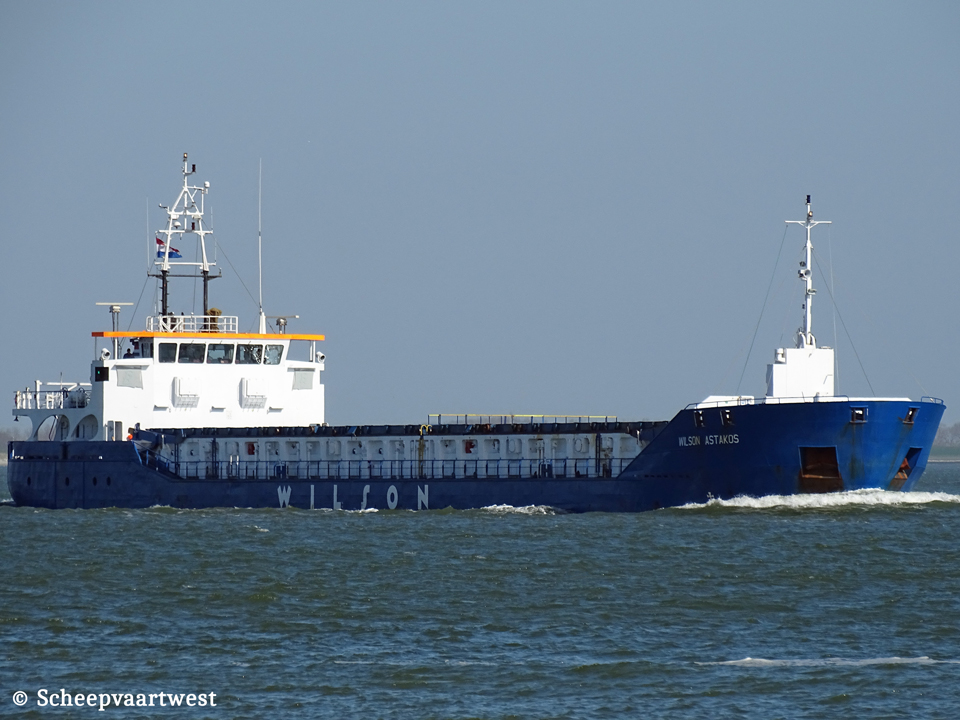

WILSON ASTAKOS |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9313759 |
|
Call sign |
LXWL |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flags |
2010 - 2019 Malta, Valletta - Call sign: 9HA2370 2019 - 2020 Germany - Call sign: DGLH2 |
|
GT |
2.451 t |
|
DWT |
Summer: 3.598 t Winter: 3.485 t |
|
NT |
1.325 t |
|
Number of 20ft containers |
20 on hatch no. 2 only |
|
Length |
88,26 m overall 84,58 m between perpendiculars |
|
Breadth |
12,50 m extreme 12,40 m moulded |
|
Draught |
Summer: 5,14 m Winter: 5.03 m |
|
Keel to top antenna |
20,80 m, forward 23,64 m, aft |
|
Depth |
6,70 m |
|
Speed |
Max: 10,5 knots |
|
Built |
2010 |
|
Keel laid |
27/08/2003 |
|
Launch date |
06/06/2010 |
|
Date of completion |
29/07/2010 |
|
Builder |
Slovenske Lodenice Komarno A.S. Komarno Slovakia |
|
Yard number |
2118 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads, 11 position |
|
Main engine |
1x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine 1.200 kW / 1.632 hp at 1.000 rpm |
|
Gearbox |
1x Reintjes WAF 843L K41 |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1(Hot water heater) |
|
Generators |
1x Sisu 49 CTAG diesel generatorset 1x Sisu 84 CTA diesel generatorset |
|
Emergency generator |
1x Sisu 49 DTG diesel generatorset |
|
Bow thruster |
1x Jastram BU 20 F - 130 kW |
|
Number of holds |
2x Box type Hold 1: 25,20 x 10,10 x 7,77 m Hold 2: 31,80 x 10,10 x 7,77 m |
|
Cargo hold capacity |
Grain/Bale: Hold 1: 1.951 m³/ 68.891 ft³ Hold 2: 2.478 m³ / 87.501 ft³ Total: 4.429 m³ / 156.392 ft³ |
|
Number of hatches |
2 Hatch 1: 25,20 x 10,10 m Hatch 2: 31,80 x 10,10 m |
|
Hatch type |
System TTS multifold crocodile |
|
Max permitted loads |
Deck/hatch-cover: 1,6 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.377,3 m³ MGO: 73 m³ IFO: 107 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 30 mm |
|
Crew size |
8 |
|
ISM manager & commercial |
Vertom Bereederungs GmbH & Co., KG Borgwardring 80 26802 Moormerland Germany |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "GATA NONEKA" GmbH & Co., KG Care of Kapitan Siegfried Bojen-Schiffahrtsbetrieb eK, Borgwardring 80 26802 Moormerland Germany |
|
Latest data adjustment |
01 July 2023 |
