Westerschelde 14 December 2018 |
 |
| Westerschelde 30/07/19 |
|
Name |

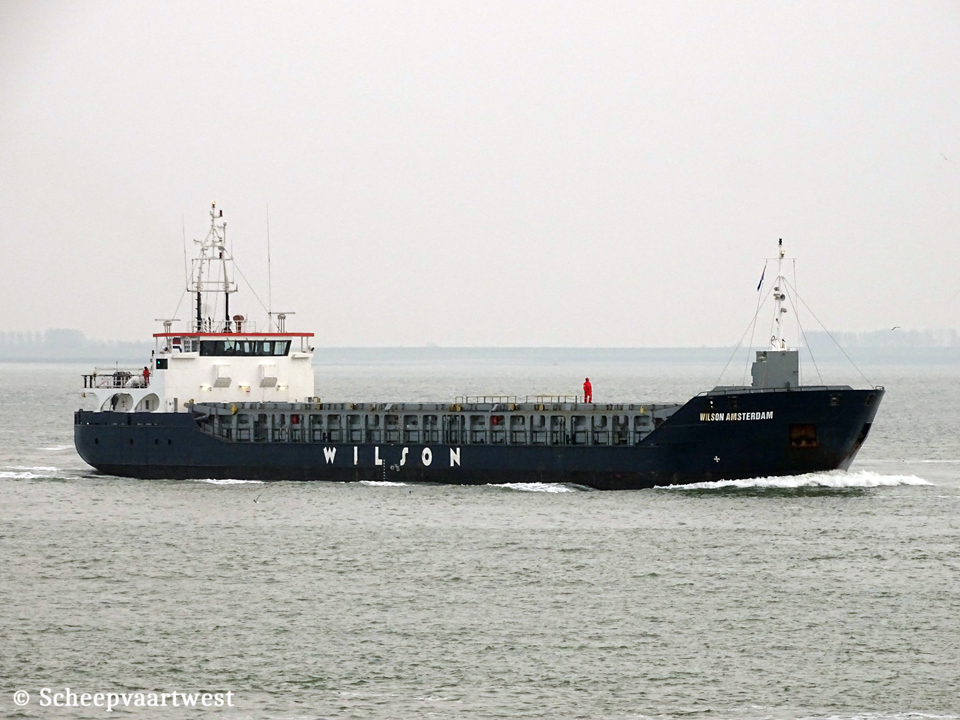

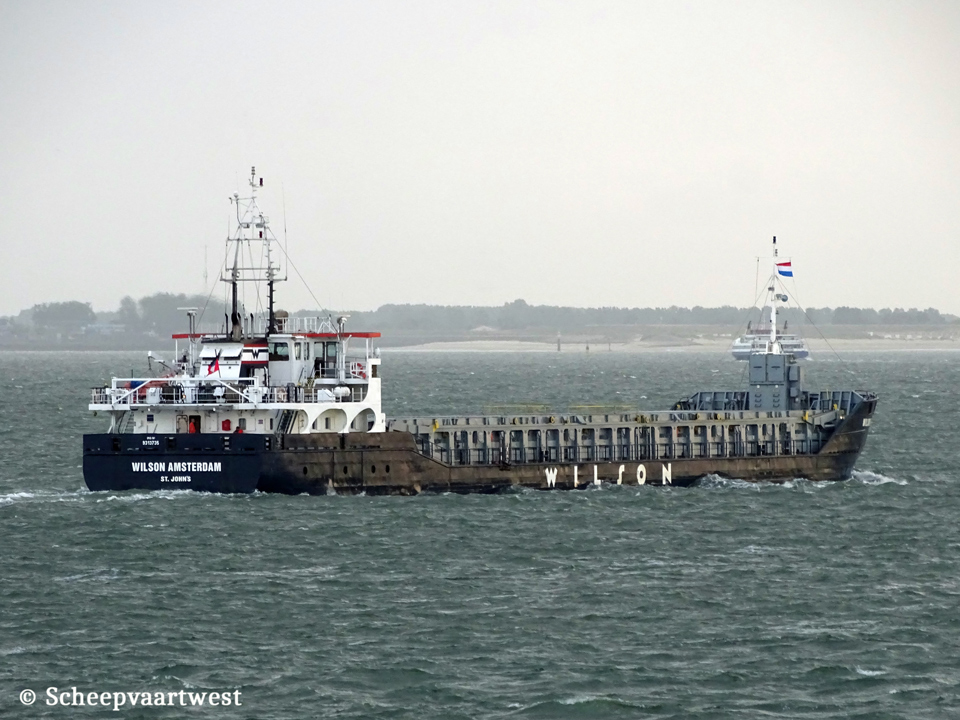

WILSON AMSTERDAM |
|
Previous names |
2009 Launch as: Tanne Kankena |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9313735 |
|
Call sign |
V2EO7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.451 t |
|
DWT |
Summer: 3.602,6 t Winter: 3.490 t |
|
NT |
1.325 t |
|
Number of 20ft containers |
On deck: 20 |
|
Length |
88,25 m overall 84,60 m between perpendiculars |
|
Breadth |
12,50 m extreme 12,40 m moulded |
|
Draught |
Summer: 5,14 m Winter: 5,04 m |
|
Keel top antenna |
Forward: 21,00 m - aft: 23,70 m Forward: 12,90 m - aft: 15,50 m, lowered mast |
|
Air draft |
19,20 m |
|
Depth |
7,76 m moulded |
|
Speed |
10,5 knots |
|
Built |
2009 |
|
Keel laid |
27/08/2003 |
|
Launch date |
22/04/2009 |
|
Date of completion |
14/11/2009 |
|
Builder |
Slovenske Lodenice Komarno A.S. Bratislava Slovakia |
|
Yard number |
2114 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkheads in 9 different positions making 4 different compartments |
|
Main engine |
1x Wärtsilä W6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine 1.200 kW / 1.632 hp at 1.000 rpm Builder: Wärtsilä Finland Oy |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Hot water heater) |
|
Generators |
1x Sisu Diesel 620 DSBIG -4 stroke 6 cylinder 108 x 120 mm diesel generatorset Mcr 150 kW 1x Sisu Diesel 645 DSBIG - 4 stroke 6 cylinder 111 x145 mm diesel generatorset Mcr 200 kW |
|
Emergency generator |
1x 420 DSRG diesel generatorset |
|
Bow thruster |
1x 130 kW |
|
Number of holds |
2 Hold 1: 24,70 x 10,10 x 7,80 m Hold 2: 31,30 x 10,10 x 7,80 m |
|
Cargo hold capacity |
Grain/ bale: Hold 1: 1.940 m³ / 68.510 ft³ Hold 2: 2.461 m³ / 86.909 ft³ Total: 4.401 m³ / 155.418 ft³ |
|
Number of hatches |
2 Hatch 1: 24,70 x 10,10 m Hatch 2: 31,30 x 10,10 m |
|
Hatch type |
System TTS multifold crocodile |
|
Max permitted loads |
Deck/hatch cover: 1,6 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
IFO: 79,0 m³ MGO: 115,0 m³ Ballast: 1.377,3 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 30 mm |
|
Crew |
7 |
|
Commerical manager |
Bojen-Schiffahrtsbetrieb Ek Borgwardring 80 26802 Moormerland Germany |
|
ISM manager |
Vertom Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Germany |
|
Operator |
Wilson EuroCarriers AS Bradbenken 1 5835 Bergen Norway |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "TANNE KANKENA" GmbH & Co. KG Care of Kapitan Siegfried Bojen-Schiffahrtsbetrieb eK, Borgwardring 80 26802 Moormerland Germany |
|
Latest data adjustment |
17 December 2021 |
