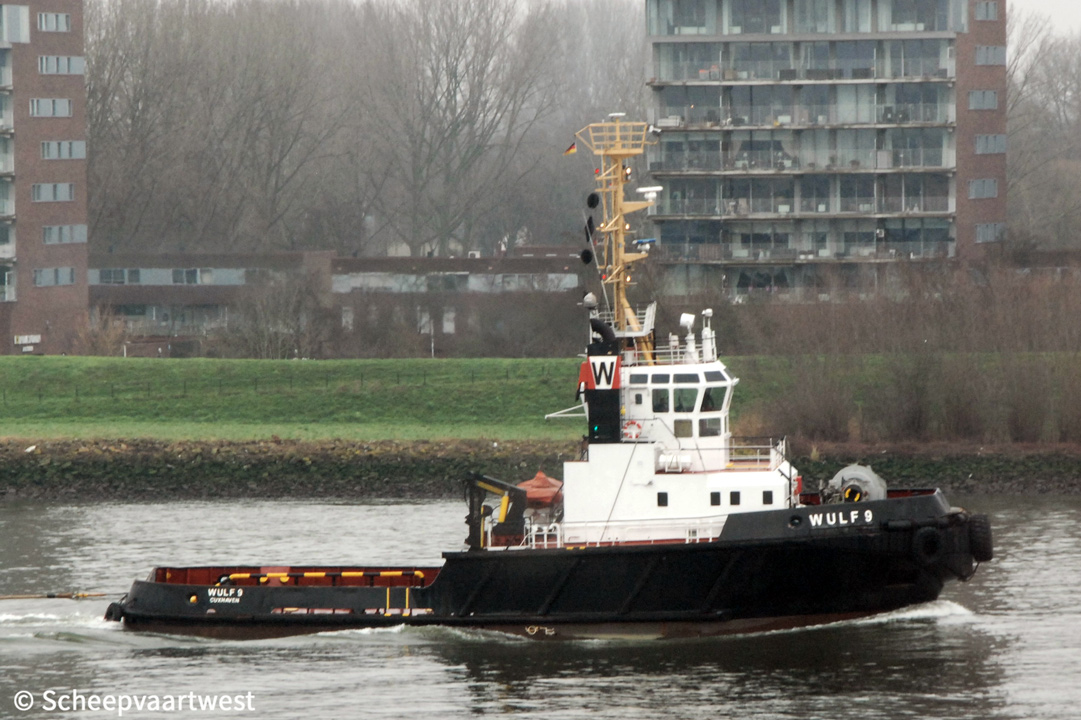

Spijkenisse, The Netherlands 23 January 2020 |
|
Name |
WULF 9 |
|
Previous names |
05/1988 - 2002 Velox 2002 - 10/2011 Siri 10/2011 - 11/2012 SV Siri 11/2012 - 01/2014 Siri |
|
Location |
Spijkenisse 23 January 2020 Oude Maas |
|
Type |
Offshore tug |
|
IMO-number |
8714243 |
|
Call sign |
DKLW |
|
Flag |
Germany |
|
Port of registry |
Cuxhaven |
|
GT |
429 t |
|
DWT |
Summer: 375 t |
|
NT |
128 t |
|
Length |
33,10 m overall |
|
Breadth |
10,00 m extreme |
|
Draught |
Max: 5,02 m |
|
Speed |
Max: 13,2 knots |
|
Built |
1988 |
|
Builder |
Batservices Verft Mandal Norway |
|
Yard number |
673 |
|
Hull material |
Steel |
|
Main engine |
2x MaK 8M332 - 8 cylinder combustion engines each 1.600 kW at 750 rpm |
|
Propellers |
2x Liaan Compass thrusters TCN 92/62-250 CCP 4 blades - Diameter: 2,500 mm |
|
Generators |
2x Volvo Penta TD 1 21 CHC diesel generatorsets each 200 kVA / 400 Volt 3 phase 50 Hz |
|
Bow thruster |
2x Brunvoll bow thrusters with controllable propeller |
|
Bollard pull |
Max:58,0 t Continuous: 54,0 t |
|
Towing gear & equipment |
1x Fore harbour towing winch (45 t pull, 150 t hold): 1x drum with 80 m length and 44 mm diameter steel wire 1x Aft towing winch (60 t pull, 150 t hold): 2x drums: - 1 with steel wire 6x36WS+IWRC with 650 m length and 44 mm diameter 1x With steel wire with 100 m length and 44 mm diameter 1x Towing hook SWL 60 t Towing pins, shark jaws |
|
Fire fighting |
2x Fire pumps: each 360 t/h 2x Fire monitors each 180 t/h 1x Water foam monitor each 30 t/h |
|
Tank capacities |
Diesel oil: 234 m³ |
|
Lifting equipment |
1x Deck crane EFFER 13,8 t @ 4,47 m 9,7 t @ 6,3 m 8,6 t @ 8,1 m 5,0 t @ 10 m |
|
Salvage equipment |
1x MOB boat - 25 hp |
|
Accommodation |
5 crew + 3 reserve |
|
Navigation equipment |
2x radars GPS Gyro compass Navtex Electronic chart plotter Autopilot Echo-sounder 1x Magnetic compass GMDSS AREA A1 + A2 |
|
Manager |
Wulf Seetransporte Helgoländer Kai 10 27472 Cuxhaven Germany |
|
Registered owner |
Otto Wulf GmbH & Co Kg Germany |
|
Previous names & owners |
05/1988 Velox - /K/S Bugsertjeneste II A/S., Haugesund. Manager: Østensjø Rederi A/S., Haugesund - Norway 2002 Siri - Svitzer Wijsmuller International Towage Ltd., Nassau - Bahamas 2002 -2011 SV siri - Svitzer Middle East Ltd., Dubai 10/2011 Wulf 9 - Tauch- und Bergungsunternehmen Otto Wulf GmbH & Co. K.G., Cuxhaven - Germany |
|
Latest data adjustment |
02 June 2020 |
