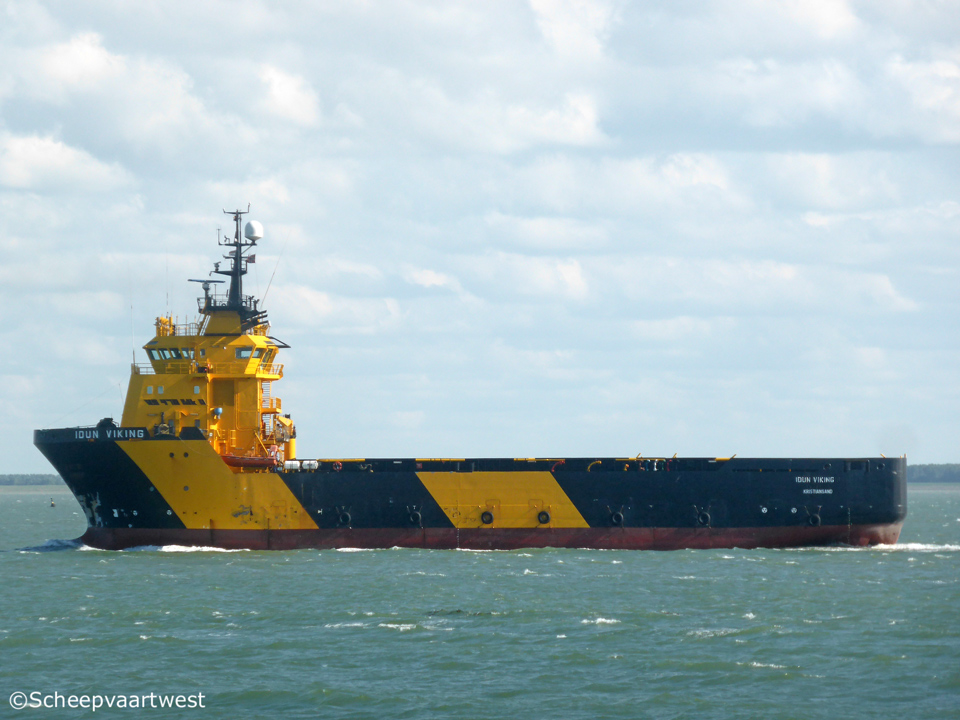

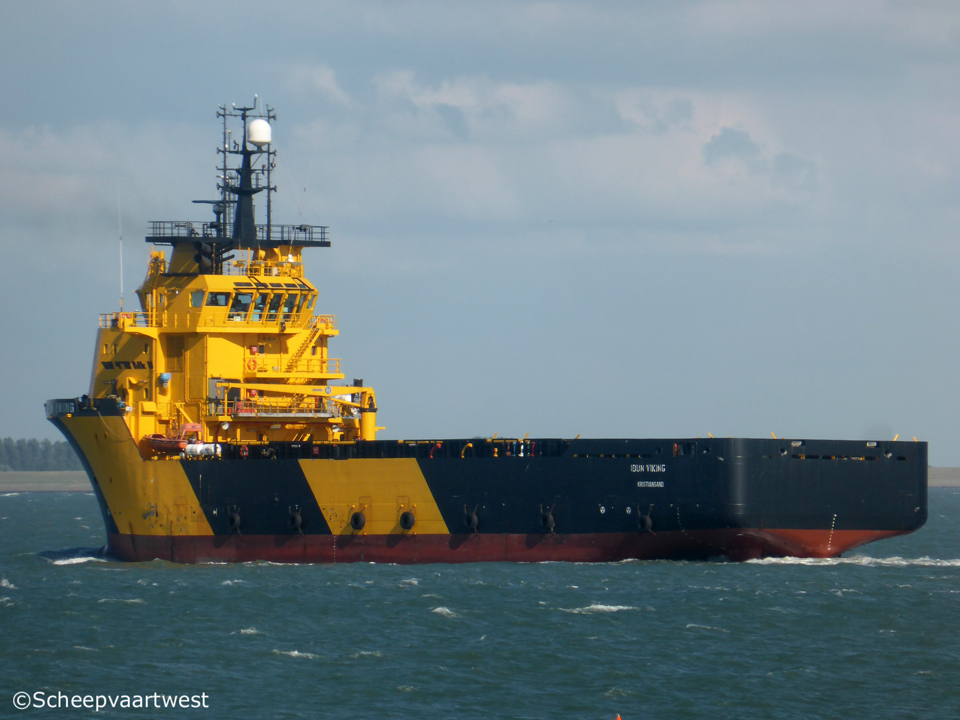

Westerschelde 19 July 2015 |
 |
| Westerschelde 19/07/15 |
|
Name |
IDUN VIKING |
|
Previous names |
2003 - 05/2012 SBS Stratus |
|
Type |
Offshore supply platform vessel |
|
IMO-number |
9280445 |
|
Call sign |
LAVW7 |
|
Flag |
Norway |
|
Port of registry |
Kristiansand |
|
Previous flags |
2003 - 2015 United Kingdom, Aberdeen - Call sign: MCNB2 |
|
GT |
2.596 t |
|
DWT |
Summer: 3.600 t |
|
NT |
1.139 t |
|
Displacement |
Max: 5.574 t |
|
Length |
73,40 m overall |
|
Breadth |
16,60 m |
|
Draft |
Summer: 6,41 m |
|
Depth |
7,60 m |
|
Speed |
14,5 knots |
|
Built |
2003 |
|
Builder |
Karmsund Maritime Service AS |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar combustion engines each 2.030 kW |
|
Propellers |
2 |
|
Shaft generator |
2x Output 1.625 kVA each |
|
Generators |
2x Diesel generatorsets each 462 kW |
|
Bow thruster |
2x bow tunnel each 800 hp 2x Stern tunnel each 800 hp |
|
Deck cargo capacity |
1.800 t |
|
Cargo deck area |
52,20 x 13,60 m 710 m² |
|
Cargo equipment |
Fuel oil: 2x 200 m³ /h Fresh water: 2x 150 m³ /h Ballast/Drill water: 2x 100 m³ /h Liquid mud: 2x 70 m³ /h Base oil: 2x 150 m³ /h Brine: 2x 70 m³ /h Integrated tank washing system |
|
Tank capacities |
Fuel oil (total): 1.102 m³ Fresh water (total): 905 m³ Ballast/Drill water: 830 m³ Dry bulk (8 tanks): 340 m³ (12.206 ft³) Liquid mud/Brine: 1074 m³ (6.746 bbls) Base oil: 214 m³ (1.346 bbls) |
|
Lifting equipment |
1x deck crane - SWL 3,0 t @ 12,00 m |
|
Accommodation |
State cabin: 2 Single berth cabin: 7 2 berth cabin: 3 4 berth cabin: 2 Ships office: 1 Hospital: 1 Messroom/Lounge: 1 |
|
Manager |
OSM Ship Management AS |
|
Owner |
Viking Supply Ships AB Copenhagen |
|
Latest data adjustment |
03 October 2018 |
