Kristiansund, Norway 30 September 2017 |
![]() |
| Kristiansund 30/09/17 |
|
Name |

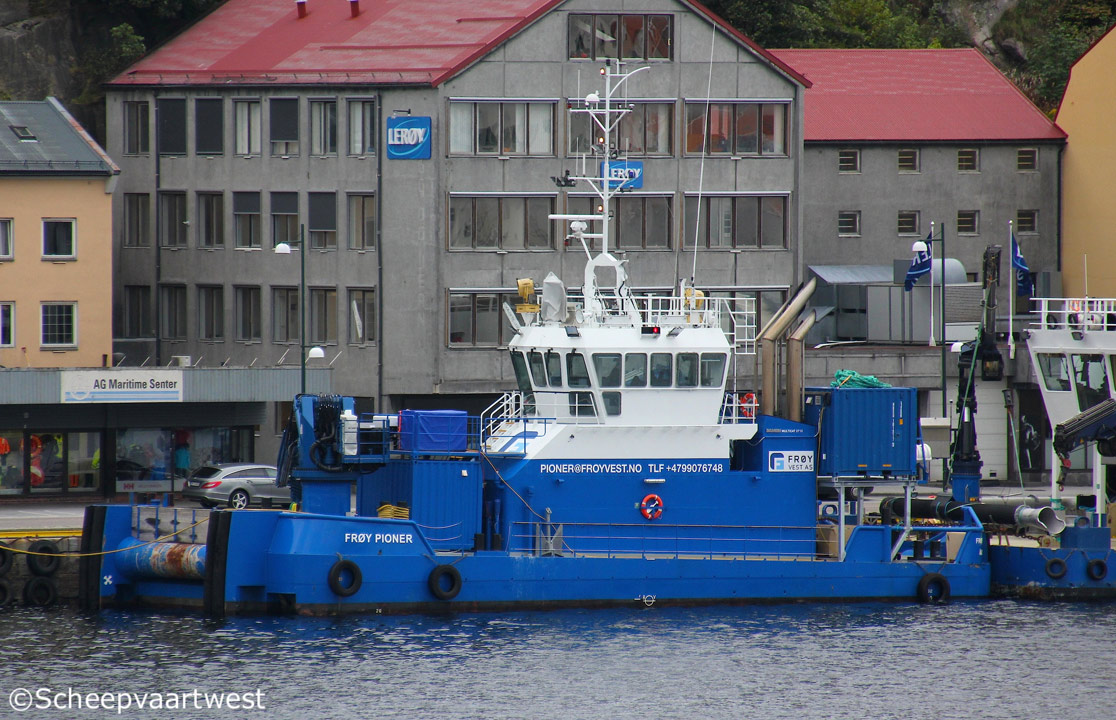

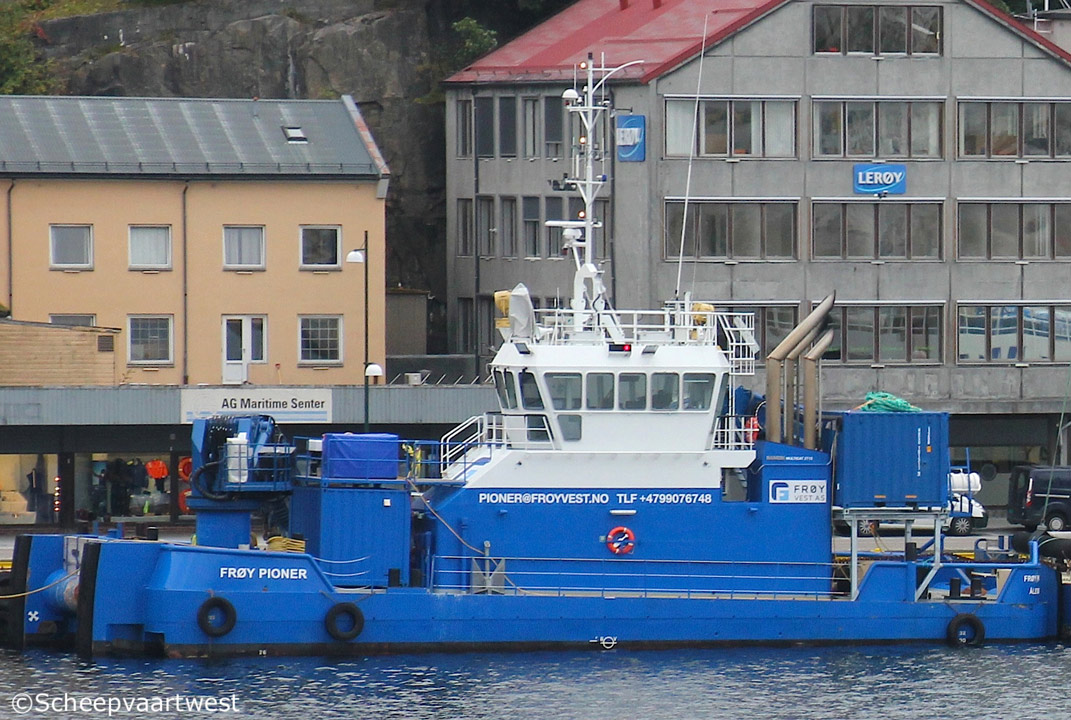

FRØY PIONER |
|
Type |
Anchor handling vessel tug - Multi Cat 2712 |
|
Basic functions |
Anchor handling, dredger service, supply, towing, hose handling, survey and fish farm service |
|
IMO-number |
9777515 |
|
Call sign |
LEEV |
|
Flag |
Norway |
|
Port of registry |
Alesund |
|
Previous flags |
2016 - 2016 The Netherlands, Hardinxveld |
|
GT |
296 t |
|
NT |
88 t |
|
Length |
27,27 m overall 23,99 m between perpendiculars |
|
Breadth |
12,45 m |
|
Draught |
2,70 m |
|
Depth |
3,90 m at sides |
|
Speed |
10,5 knots |
|
Built |
2016 |
|
Date of completion |
15/04/2016 |
|
Builder |
Damen Shipyards Hardinxveld |
|
Yard number |
571725 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 TTA Acert - 4 stroke 12 cylinder 145 x 162 mm diesel engines total 1.790 kW / 2.432 hp at 1.800 rpm |
|
Gearbox |
2x Reintjes WAF 572L - reduction 7,091:1 |
|
Propellers |
2x Screw propeller solid - aft at 254 rpm - Diameter 1.900 mm |
|
Generators |
2x Caterpillar C04.4 diesel generators each 54 kVA - 43 kW - 126 hp |
|
Bow thruster |
1x Kalkman Beta 250H - 250 hp / 184 kW hydraulic driven |
|
Hydraulic power |
1x Caterpillar C12TA - 339 kW at 1.800 rpm |
|
Bollard pull |
Max.: 34,8 t |
|
Deck lay-out |
Anchor: 2x 300 kg Pool TW (HHP) Anchor winch: 1x Hydraulically driven, Kraaijeveld Anchor handling winch: 1x single drum Capacities: 100 t @ 3,00 m/min pulling force 1st layer 150 t brake holding force 1st layer Towing winch: 1x single drum Capacities: 50 t @ 10,00 m/min pulling force 1st layer 100 t brake holding force 1st layer Wire capacity: 2x 1.000 m, diameter 65 mm, polypropylene wire Towing pins front: 1x WK double pin type with chain stopper |
|
Tank capacities |
Fuel oil: 109,5 m³ Fresh water: 31,4 m³ Dirty oil: 1,5 m³ Sewage: 10,5 m³ Sludge: 1,3 m³ Hydraulic oil: 2,2 m³ Lub oil: 1,7 m³ Bilge water: 4,0 m³ |
|
Lifting equipment |
2x HS Marine AKC290/27 HE6 deck crane - SWL 3,0 @ 27,00 m |
|
Accommodation |
Comfortable heated and air-conditioned accommodation for 7 persons in 5 cabins, galley, sanitary facilities, etc. Two double cabins and three single cabins |
|
Nautical and communication equipment
|
Search lights: 2x Pesch 2000 W Radar system: 1x Furuno, FAR 2117 Compass: 1x Cassens & Plat, Reflecta 1 Gyro compass: 1x Anshuetz, Standard 22 Autopilot: 1x Simrad AP-70+ GPS: 1x Furuno, GP-170 Echosounder: 1x Furuno, FE-800 Speedlog: 1x Furuno, DS-80 AIS: 1x Furuno, FA-150 Intercom: Phonetech CIS3000 VHF: 2x Sailor, RT6222, with DSC Handheld VHF: 2x Jotron, Tron TR-20 SSB: 1x Thrane & Thrane, 6310 Inmarsat: - C 2x Thrane & Thrane, Sailor 6110 Navtex: 1x Furuno, NX-700A Watch alarm: 1x Furuno, BR-500 Entertainment system: 1x Naval, MK32ALC Chart plotter: 1x OLEX Chart plotter: 1x Furuno TimeZero |
|
Owner |
Froy Vest Rederi AS |
|
Latest data adjustment |
18 January 2018 |
