Dux 02

Hammerfest, Norway 27 September 2017

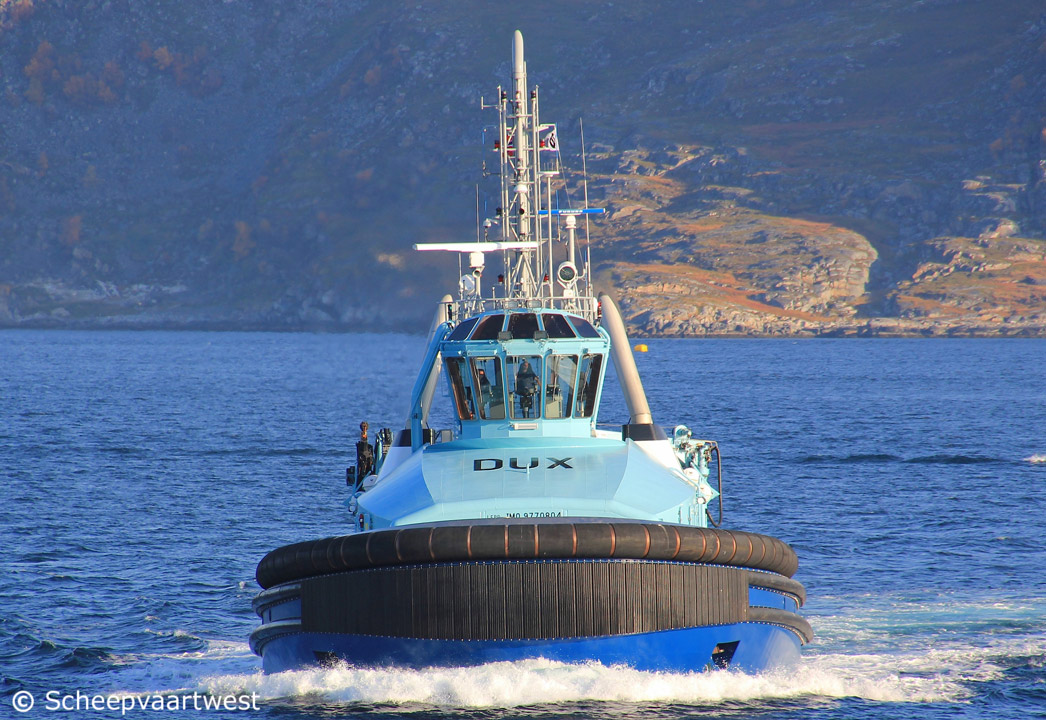

Dux 01
Hammerfest 27/09/17


Name

DUX

Type

LNG-fuelled escort tug - RAstar 4000-DF class tugs

Firefighting ship, Water spraying, Oil recovery ship, Dual fuel

IMO-number

9770804

Call sign

LFPD

Flag

Norway

Port of registry

Hammerfest

GT

1.056 t

DWT

499 t

NT

319 t

Length

40,20 m overall

37,88 m between perpendiculars

Breadth

16,00 m

Draft

6,80 m

Air draft

21,00 m

Freeboard

559 mm

Depth

6,10 m moulded

Speed

Service: 11,4 knots

Free running speed: 15,0 knots

Economic: 10,5 knots

Built

2016

Date of completion

29.01.2016

Builder

Astilleros Gondán S.A.
Spain

Yard number

C465

Hull material

Steel

Watertight compartments

10

Continuous decks

1

Main engine

2x Wärtsilä 6L34DF - 4 stroke 6 cylinder 340 x 400 mm combustion engines each 3.000 kW at 750 rpm total 6.000 kW / 8.152 hp

Built: 19.04.2016

Builder: Wartsila Finland Oy, Vaasa - Finland

Mains propeller

2x Schottel SRP 3030CP Azimuth truster controllable pitch at 750 rpm

Generators

3x Volvo Penta D7A-AT combustion engine generatorsets each 116 kW at 1.500 rpm

Bollard pull

107,5 t

Deck equipment

Towing pins: Karmøy winch

Anchor chain: 30 mm Grade 3 chain total 13 shots

Anchor Windlass / Mooring Winch: Karmøy Winch

Deck cranes: Palfinger PK 50002 MC S4,5

Tugger winches: Karmøy winch

Deck area: 75 m²

Towing equipment

Towing winch forward: Karmøy Winch Type 060661

Towing winch aft: Karmøy Winch Type 060671

Pull/Brake force: Brake Holding Force: 300 tonnes

Main tow wire: 800 m 64 mm steelwire with closed spelter socket

Spare tow/escort line: Escort line: 80 mm x 250m Kapaneema Plus 2x 12-stran MBL 464 tonnes. Harbour line: 54mm x 200 m Kapaneema Plus MBL 225 tonnes

Fire fighting equipment

Firepumps: Fi-Fi Class 1 - 2x Eureka Pumps 250x350 OGF

Firemonitors: 2x Jason Water/Foam monitors

Foam: 20,4 m3 foam

Other: Vessels water spray system. Personal protection equipment/Fireman's outfits

Lifesaving / rescue

Approved lifesaving appliances for: LSA approved for 8 persons

Liferafts: 4x 8 persons

Rescue/MOB boat: Solas approved Boat and Solas Crane

Tank capacities

Marine gas oil: 313,8 m³ (Included 30 m³ LNG)

Pot water: 45,6 m³

Sewage tanks: 10,6 m³

Foam: 20,4 m³

Dispersant: 20,4 m³

Oil recovery: 254,2 m³

Crew size

8

Accommodation



Single cabins: 2x Single cabins

Double cabins: 3x Double cabins

Other: Messroom, Galley, Laundry, Office

Navigation equipment



Radar: 2x Furuno FAR-2817/FAR-2837S X/S Band Radar

Electronic Chart System: 1x Telchart ECS T2121

Compass: Gyro Compass Simrad GC80 Compact.

Satellite Compass Furuno SC-50

Autopilot: 1x Simrad AP 70

Echo Sounder: 1x Furuno FE 800

Navtex: 1x Furuno NX 700B

DGPS: 1x Furuno GP 170

AIS: 1x Furuno FA 170

Log: 1x Furuno DS 80 Doppler log

Communication equipment



General: GMDSS installation in accordance with IMO regulations for vessels operating within Sea Area A2

GMDSS Radio MF/HF Transceivers & DSC: 1x Furuno FS 1575

GMDSS VHF with DSC: 2x Furuno FM 8900

GMDSS VHF portable: 3x Sailor SP-3520

VHF: 2x Sailor 6248

GMDSS EPIRB: 2x Sailor SGE 406 II

GMDSS SART: 2x Sailor Sart

GMDSS Inmarsat C: 1x Sailor

UHF: 2x Sailor 6248

Owner

Østensjø Rederi
Smedasundet 97
Haugesund
Norway

Registered owner

Bugsertjeneste AS
Smedasundet 97B
5525 Haugesund
Norway

Latest data adjustment

26 December 2017
