Antwerpen 07 August 2017 |
|
Name |

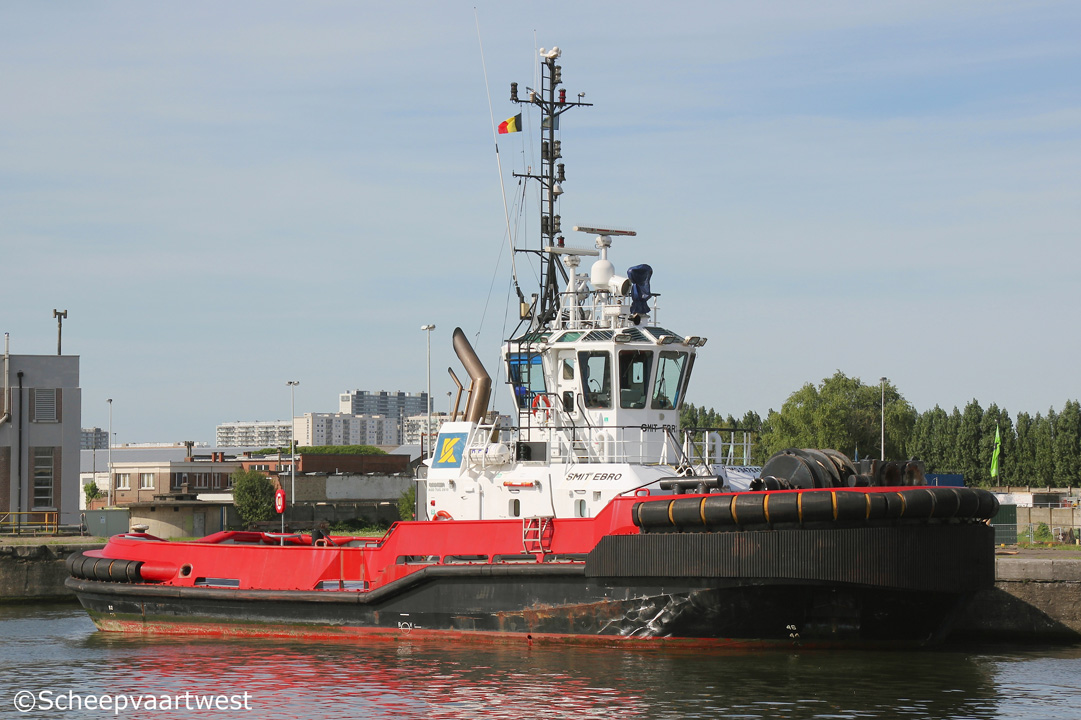

SMIT EBRO |
|
Type |
Harbour Azimuth Stern Drive tug type Damen 2810 |
|
IMO-number |
9476408 |
|
Call sign |
9HB4830 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Bahamas, Nassau - Call sign: C6XZ2 |
|
GT |
285 t |
|
DWT |
Summer: 160 t |
|
NT |
85 t |
|
Length |
28,67 m overall 25,78 m between perpendiculars |
|
Breadth |
10,43 m |
|
Draught |
Max.: 4,85 m |
|
Freeboard |
1.000 mm |
|
Depth |
4,60 m |
|
Speed |
Max.: 14,0 knots Economic: 9,0 knots |
|
Built |
2009 |
|
Date of completion |
08/08/2009 |
|
Builder casco |
Damen Shipyard Galati Romania |
|
Builder completion |
Damen BV Shipyards Gorinchem The Netherlands |
|
Yard number |
511546 |
|
Hull material |
Steel |
|
Watertight compartments |
2 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516B TA HD/C -4 stroke 16 cylinder 170 x 190 mm combustion engines total 5.066 hp / 3.728 kW at 1.600 rpm |
|
Propulsion |
2x Fixed pitch ASD propeller - at 267 rpm |
|
Generators |
2x Diesel generators each 115 kVA - 92 kW - 150 hp |
|
Deck equipment |
Fore winch Hydraulic: Double drum - 150 t brake load Line pull 30 t @ 11,00 m/min. on 2nd layer Towing hook: Mampaey, disc type, 65 t Aft winch Hydraulic: Single drum - 150 t brake load Line pull 30 t @ 11,00 m/min. on 2nd layer |
|
Bollard pull |
60 t ahead 56 t astern |
|
Tank capacities |
Potable water: 15 m³ Fuel oil: 97 m³ Foam: 8 m³ |
|
Accommodation |
Air-conditioned accommodation for 6 persons |
|
Navigation & communication equipment |
Magnetic compass: Cassens & Plath Kotter Echo sounder: JRC FE JFE 380 VHF: DSC Sailor RT -5022 Radar: JRC JMA-5310/-6 + JMA-609 GPS: JRC NWZ-4451 JNAV 500 |
|
Joint venture |
Koninklijke Boskalis Westminster N.V. & KOTUG International B.V. |
|
Head quarters |
Kotug Smit Towage Head Quarters Rotterdam Wilhelminakade 300 Rotterdam 3072 AR The Netherlands |
|
Owner |
SMIT Harbour Towage Division B.V. 3350 AA Papendrecht The Netherlands |
|
Registered owner |
Smit Shipping Singapore Private Limited |
|
Renamed |
01/2020 VB Ebro Malta, Valletta - Call sign: 9HB4830 Owner: Boluda Towage Europe |
|
Latest data adjustment |
19 March 2020 |
