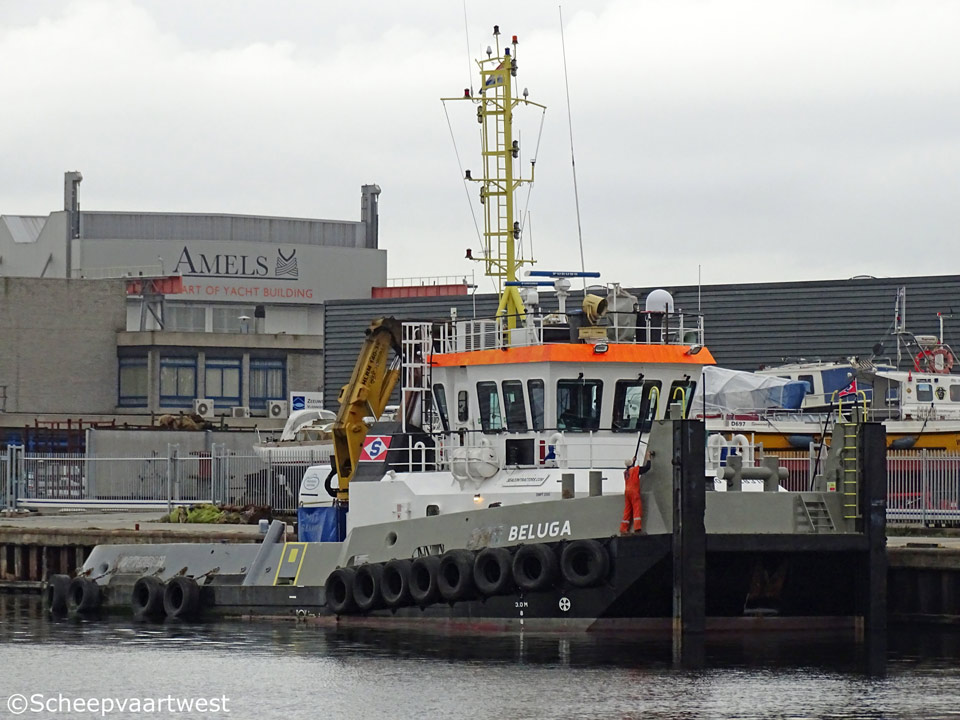

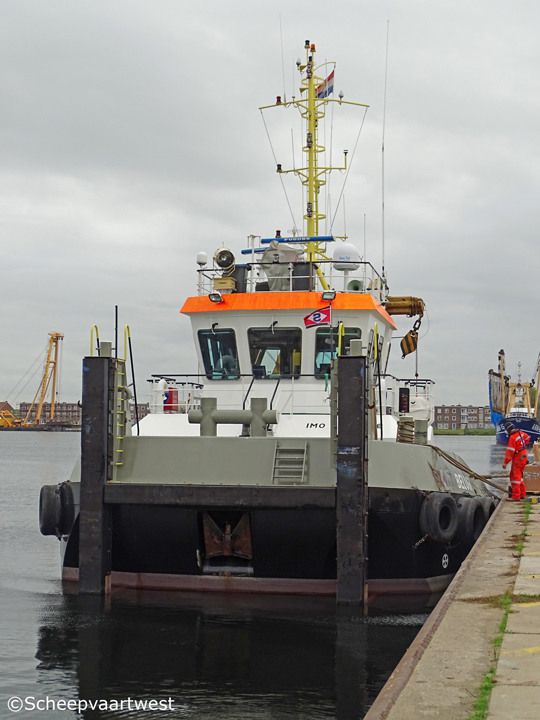

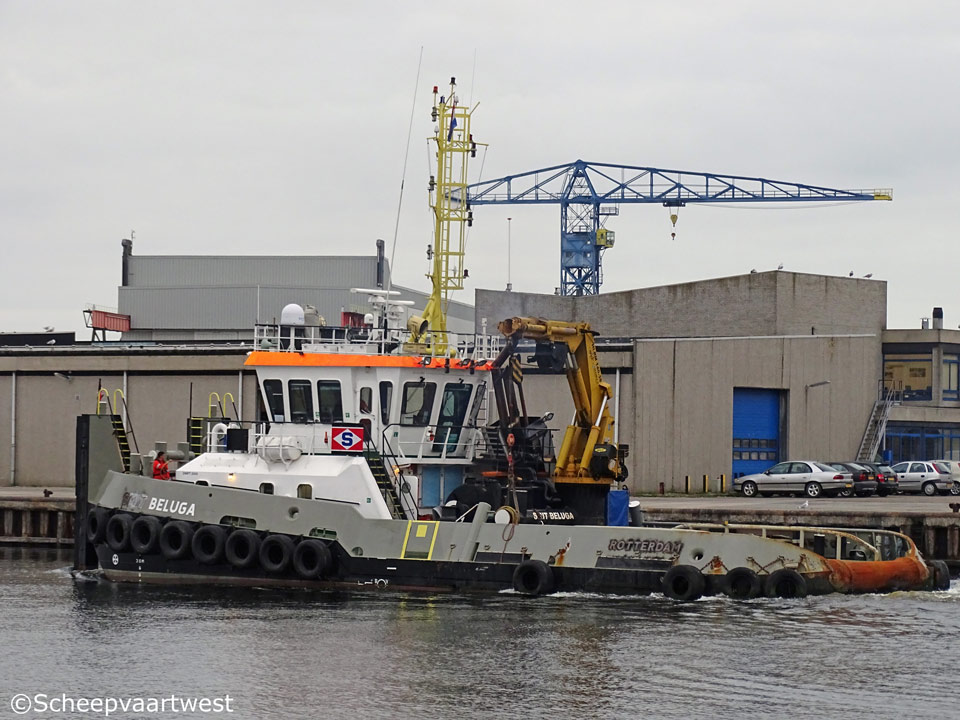

Vlissingen, The Netherlands 22 October 2015 |
 |
 |
|
| Vlissingen 22/10/15 | Vlis 22/10/15 | |
|
Name |
SEA BELUGA |
|
Previous names |
2010 - 2015 Smit Beluga |
|
Type |
Tug - Pusher |
|
Basic functions |
Towing, mooring, pushing, anchor handling, dredging support |
|
IMO-number |
9528316 |
|
Call sign |
PBME |
|
Flag |
The Netherlands |
|
Port of registry |
Vlissingen |
|
Previous flags |
The Netherlands - Call sign: PCBJ |
|
GT |
230 t |
|
DWT |
350 t |
|
NT |
59 t |
|
Length |
25,80 m overall 23,60 m between perpendiculars |
|
Breadth |
10,05 m overall |
|
Draught |
2,60 m operating draft 2,50 m minimum 2,72 m max aft |
|
Air draft |
8,75 m |
|
Depth |
3,45 m at sides |
|
Speed |
Max.: 13,7 knots Average: 10,5 knots Economic: 8,0 knots |
|
Built |
2010 |
|
Launch date |
26.02.2010 |
|
Date of completion |
31.03.2010 |
|
Builder casco |
Zylkowski Andrzej |
|
Builder completion |
Damen Shipyards BV |
|
Yard number |
571613 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3508B TA/A - 4 stroke single action 8 cylinder diesel engines - each 746 kW total 1.492 KW at 1.600 rpm Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Gearbox |
2x Reverse reduction gear Reintjes WAF-562L 5.424:1 |
|
Propellers |
2x Solid pitch propellers - aft at 295 rpm 4 blades diameter: 2.000 mm |
|
Generators |
2x Caterpillar C4.4 DI-TAA - 4 cylinder diesel engines each 75 kW at 1.500 rpm coupled with Leroy Somer generators each 97,5 kVA Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Bow thruster |
1x Veth Jet hydraulically driven thruster - 149 KW |
|
Deck area |
50 m² |
|
Deck equipment |
Towing anchor handling winch Kraaieveld, hydraulic driven Holding power: 70 t Pulling: 50 t Tow drum capacity 700 m - diameter 38 mm Anchor handling drum capacity 200 m- diameter 44 mm Towing hook Mampaey: 35 t SWL Stern roller: 100 tonnes SWL Anchor handling gear: towing pins and wire stopper |
|
Pumps |
Bilge pumps: 24 m³/h Fuel supply pump: 12 m³/h Water supply pump: 12 m³/h |
|
Fuel oil separator |
Westfalia 600 litres/h |
|
Tank capacities |
Fuel oil: 78 m³ Fresh water: 40 m³ |
|
Hydraulic power plant |
1x Caterpillar C9 TA - 6 cylinder diesel engine 269 kW at 1.800 rpm Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Lifting equipment |
1x Deck crane Heila type HLRM 140-3S, hydraulic driven Capacity load: 26 t at 5,65 m Capacity reach: 10 t at 12,25 m |
|
Optional features |
FiFi unit, double drum mooring winch, pump unit for ballast / salvage purposes, diving / decompression unit, survey equipment, oil spil response unit |
|
Accommodation |
Accommodation for 6 people, fully air-conditioned, sewage treatment unit |
|
Nautical & communication equipment |
GMDSS: GMDSS-A2 2x Radar: JRC JMA 5104 / JRC JMA 609 VHF radio telephone: Sailor RT 4822 and Sailor RT 2048 Handheld VHF McMurdo R2 Navtex: JRC NCR 333 Electronic Chart system: Mini-M - Sailor / Thrane & Thrane Autopilot: Ratheon/ Anschutz Echo sounder: Furuno FE 700 GPS: JRC Nav 500 Compass: JRC JLR10 AIS: Furuno FA 150 Magnetic compass: Clarens & Plath MF/HF: Sailor HT 4610 |
|
Previous managers |
2010 - 2015 Smit Vessel Management Service bv |
|
Owner |
Seacontractors |
|
Previous owners |
2010 - 2015 SMIT Transport Europe Rotterdam The Netherlands |
|
Latest data adjustment |
25 July 2017 |
