Lisboa, Portugal 07 June 2017 |
 |
| Lisboa 09/06/17 |
|
Name |

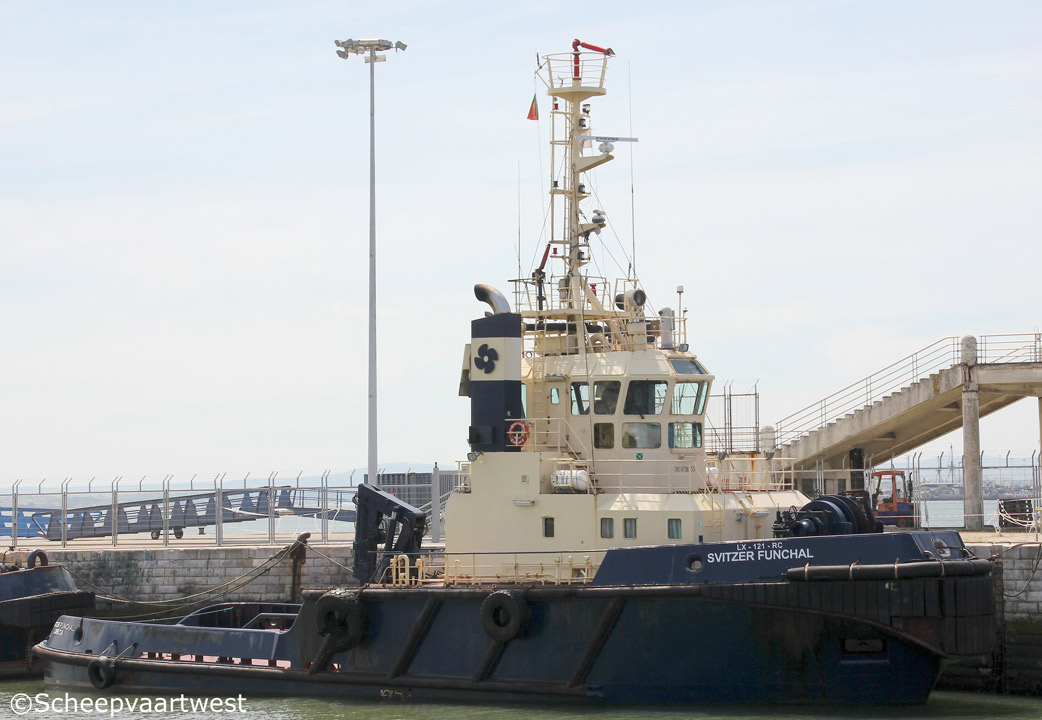

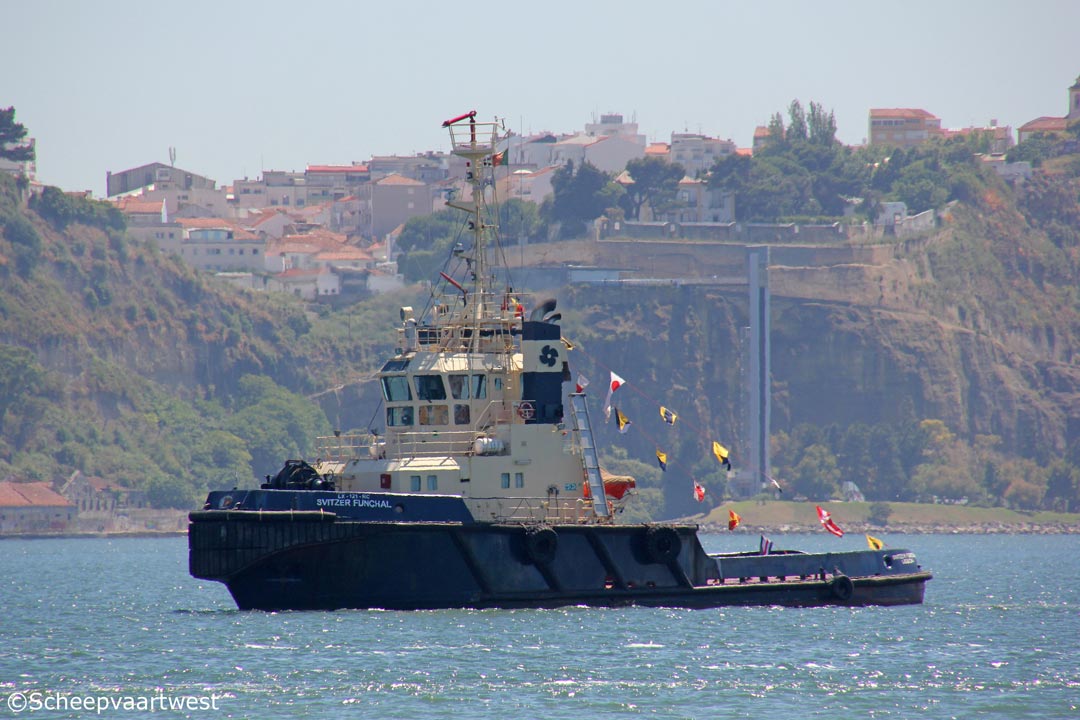

SVITZER FUNCHAL |
|
External marking |
LX-121-RC |
|
Previous names |
1988 - 01.2003 Tenax 01/2003 - 11/2011 Lavan 11/2011 - 11/2012 SV Lavan 11/2012 - 08/2013 Svitzer Lavan |
|
Type |
Tug |
|
IMO-number |
8714255 |
|
Call sign |
CSYR9 |
|
Flag |
Portugal |
|
Port of registry |
Lisboa |
|
Previous flags |
Norway Bahamas Saint Vincent & Grenadines |
|
GT |
429 t |
|
DWT |
Summer: 400 |
|
NT |
128 t |
|
Length |
33,30 m overall 29,95 m between perpendiculars |
|
Breadth |
10,60 m |
|
Draught |
Max.: 5,02 m |
|
Depth |
5,62 m |
|
Speed |
13,5 knots |
|
Built |
1988 |
|
Keel laid |
02/12/1987 |
|
Launch date |
18/03/1988 |
|
Date of completion |
06/1988 |
|
Builder |
Batservices Verft A/S |
|
Yard number |
674 |
|
Hull material |
Steel |
|
Main engine power |
2x Krupp/Mak 8M-332-AK - 4 stroke single acting 8 cylinder 240x330 mm combustion engines 3.206,5 kW / 4.450 bhp each connected to a Liaaen Compass Z-peller type TCN 92/68-250 |
|
Propellers |
2 |
|
Generators |
2x Leroy Somer diesel generatorsets each 160 kW / 380 V-50 Hz |
|
Bow thruster |
2x Brunvoll bow thrusters with controllable propeller |
|
Bollard pull |
57 t a haid 52 t in reverse |
|
Deck equipment |
Double drum Karmoy towingwinch 45 t and same winch aft 150 t 2x Karmoy capstand 3,0 t each 1x Mampay towinghook 60,0 t Heck roller 100 t |
|
Fire fighting |
2x Kværner FiFi pumps each 400 m³ to 3 monitors on top of the wheelhouse 5.000 and 3.000 m³/h |
|
Manager |
Svitzer Portugal Reboques Maritimos |
|
Operator |
Svitzer A/S |
|
Owner |
Svitzer Portugal Reboques Maritimos |
|
Renamed |
BSV Portugalia Romania - Call sign: YQPY Manager & Owner: Black Sea Services Srl |
|
Latest data adjustment |
13 January 2019 |
