Spijkenisse, The Netherlands 18 August 2016 |
|
Name |

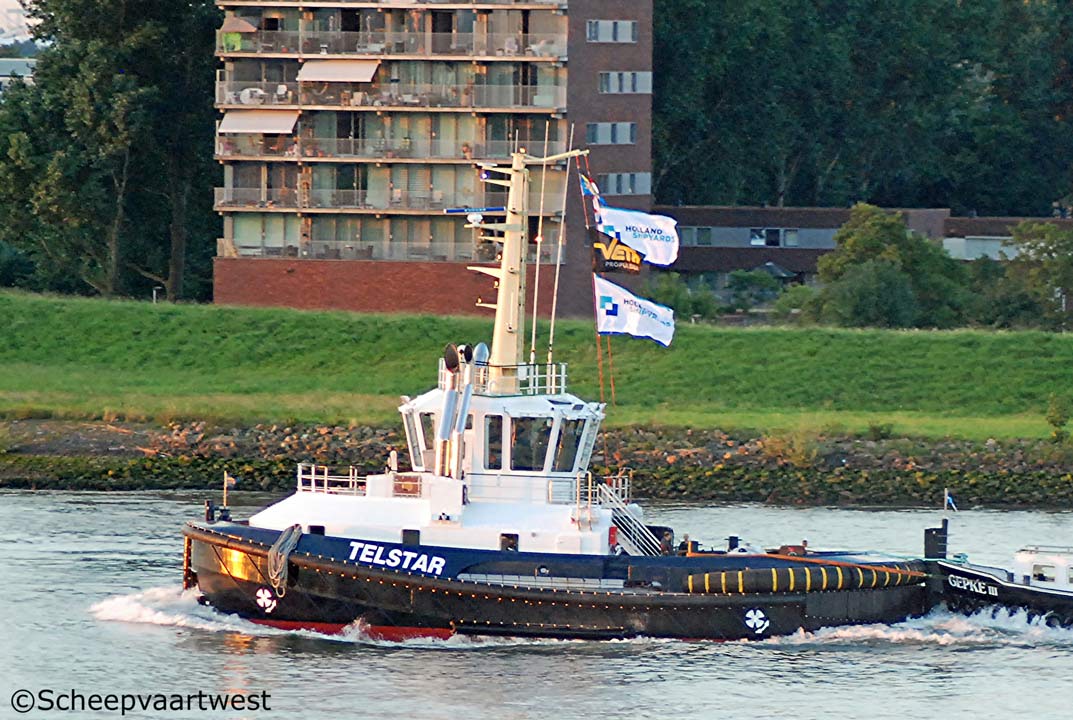

TELSTAR |
|
Type |
Tug - Port & Terminal diesel-direct/diesel-electric hybrid tug |
|
IMO-number |
9796066 |
|
Call sign |
PBFG |
|
Flag |
The Netherlands |
|
Port of registry |
IJmuiden |
|
GT |
303 t |
|
NT |
90 t |
|
Length |
25,45 m overall 23,53 m between perpendiculars 24,18 m on waterline |
|
Breadth |
12,20 m extreme 11,40 m moulded |
|
Draught |
5,65 m operational |
|
Depth |
7,01 m to maindeck |
|
Speed |
12,5 knots 9,5 knots hybrid |
|
Date of completion |
16.09.2016 |
|
Builder |
Holland Shipyards B.V. |
|
Yard number |
HS2015-027 |
|
Hull material |
Steel |
|
Watertight compartments |
27 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi - 4 stroke 12 cylinder 170 x 220 mm diesel engine 1x Mitsubishi - 4 stroke 16 cylinder 170 x 220 mm diesel engine Total: 3.770 kW / 5.127 bhp at 1.500 rpm Built: 04.11.2015 Builder: Mitsubishi Heavy Industries Ltd., Almere - The Netherlands |
|
Electrical propulsion engine |
2x Each 800 kW at 1.500 rpm |
|
Type of propulsion |
Azimuthal propulsion |
|
Propellers |
2x Azimuth thruster solid - at 272 rpm |
|
General generator sets |
2x Scania CV AB DI16090M diesel generatorset each 535 kW @ 1.500 rpm |
|
Emergency & harbour gen. |
1x SiSu 49 CTAG diesel generatorset 112 kVA - 90 kW - 158 hp |
|
Thruster |
2x Veth, type Z-drive VZ 1800- each 2.350 kW |
|
Bollard pull |
75,0 t |
|
Towing equipment |
Towing winch: Ridderinkhof R-TW-E 400 Number of drums: 2 Nominal pulling force, 1st Layer: 400 kN Stall pull, 1st Layer: 500 kN Brake holding force, 1st Layer: 2500 kN Nominal speed, 1st Layer: 15,00 m/min Slack rope speed, 1st Layer: 30,00 m/min Rope storage: 2x 170 m Wires winch: 2x 150,00 m, 88 mm harbour wire |
|
Tank capacities |
Gasoil: 82,47 m³ Fresh water: 19,4 m³ Lub. oil: 2,5 m³ Bilge water: 3,8 m³ Sewage: 11,2 m³ Dirty oil: 4,3 m³ |
|
Accommodation |
For 5 persons |
|
Navigation equipment |
Searchlight: Seematz 2.000 W Radar system: Furuno FAR-2117 Autopilot: Anschütz Autopilot PilotStar D Magnetic Compass: Cassens & Path Reflecta 1 Fiberline Satellite compass: Furuno SC-50 GPS: Furuno GP-170 Echosounder: Furuno FE-800 VHF radio telephone GMDSS: 2x Sailor RT-6222 VHF radio telephone: 1x Sailor RT-6248 VHF handheld: 2x Jotron TRON TR-20 SSB: Furuno FS-1575 150 W Inmarsat C: 2x Furuno Felcom 19 Chartsystem: Transas, type Tsunamis Navigator Navtex: Furuno NX-700 AIS: Furuno FA-150 EPIRB: Jotron Tron 60 SART: Jotron Tron Sart 20 VHF mobilofoon: Moterola, type DM4600 |
|
Operator |
Iskes Towage & Salvage |
|
Owner |
Sleepdienst B Iskes & Zoon BV |
|
Latest data adjustment |
06 March 2017 |
