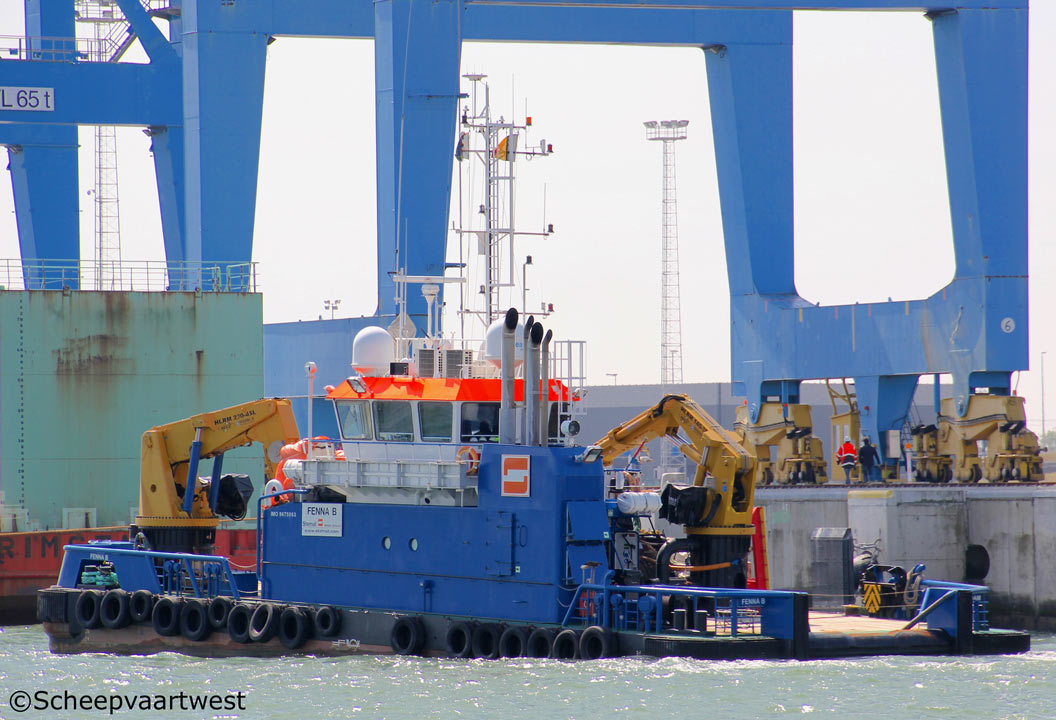

Fenna B 03

Zeebrugge 16 August 2016

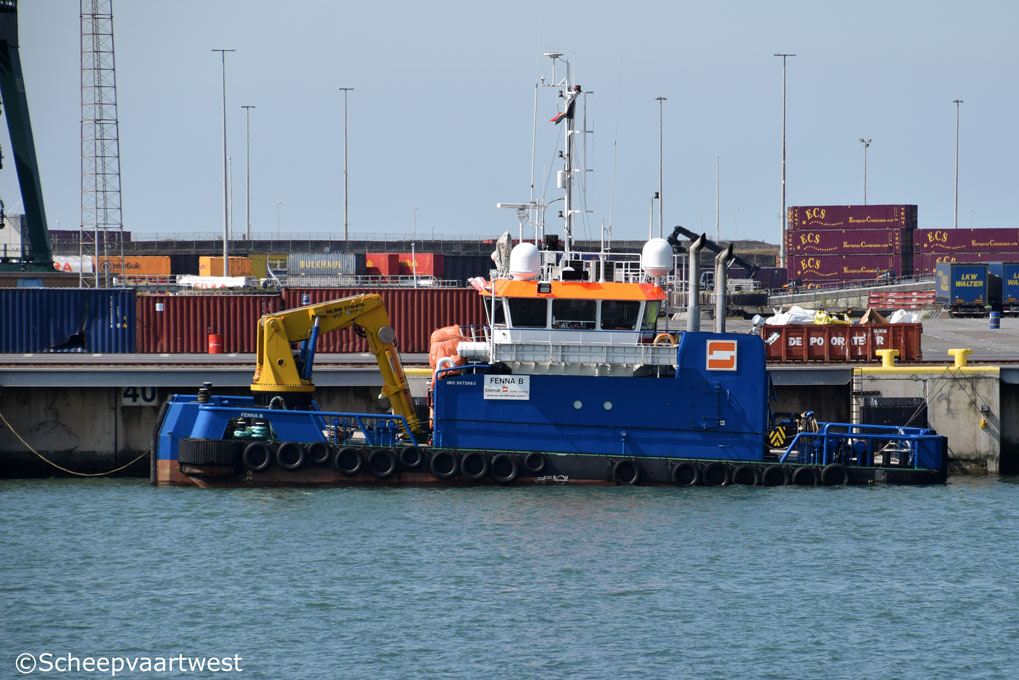

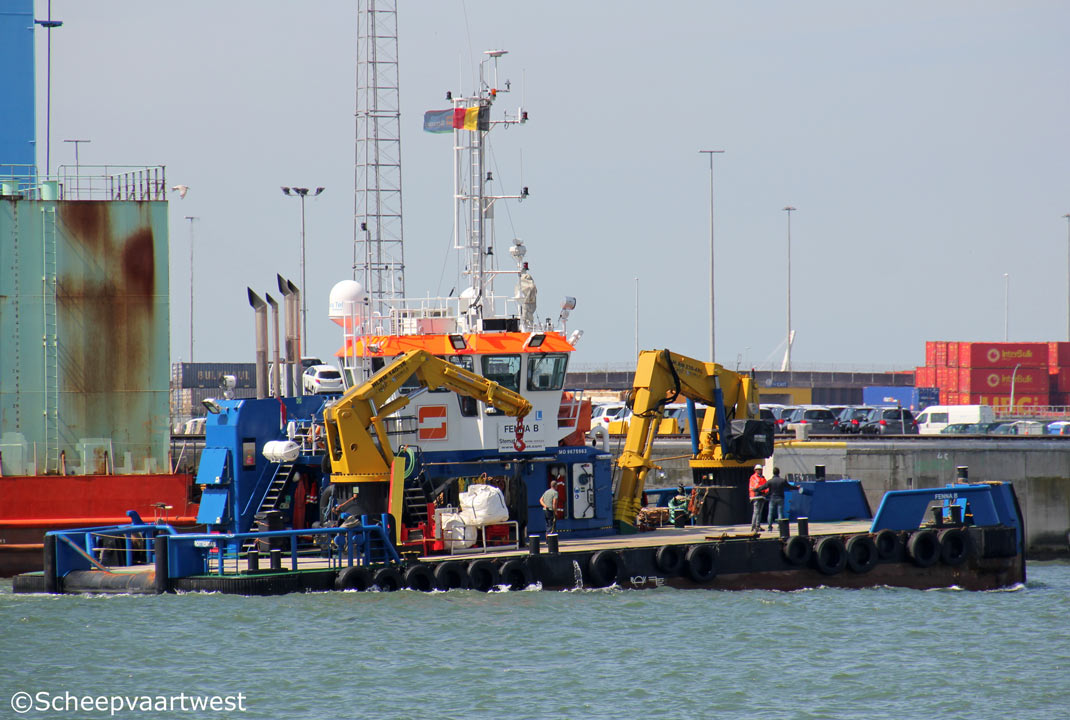

Fenna B 02   Fenna B 01
Zeebrugge 16/08/16 Zeebrugge 30/08/16


Name

FENNA B

Type

Tug - Utility vessel - Multi purpose-ship

Eurocarrier 2611

IMO-number

9675963

Call sign

PCTE

Flag

The Netherlands

Port of registry

Rotterdam

GT

225 t

DWT

999 t

NT

76 t

Length

26,48 m overall

23,65 m between perpendiculars

Breadth

11,00 m

Draught

Summer: 2,61 m

Freeboard

847 mm

Depth

3,50 m

Speed

10,0 knots

Built

2013

Date of completion

21.03.2013

Builder

Neptune Marine Service BV

Aalst

The Netherlands

Yard number

423

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

2x Cummins QSK 38-M - 4 stroke 12cylinder 159 x 159 mm diesel engines 2.088 kW / 2.836 hp at 1.800 rpm

Propellers

2x Screw propeller solid - aft at 1.800 rpm

4 blades fixed pitch propellers diameter 1.850 mm

Generators

2x Main diesel generatorsets each 250 kVA - 200 kW - 257 hp

Bollard pull

34 t

Towing/anchor handling winch

1x 100 t pull

1x 50 t pull

Hydraulic - 2 pins

Tank capacities

Fuel oil: 96 m³ - 90%

Fresh water: 49 m³ - 90%

Sewage: 7,5 m³

Lifting equipment

1x Heila HLRM 230-4SL bow crane

1x Heila HLRM 140-3S aft crane

Crew

5

Accommodation

2x Cabins 2 persons

3x Cabins 1 person

Mess room, galley, sanitary, central heated, air conditioning

Manager

Sremat Marine Services
Quarantaineweg 10 (harbour 2642)
3089 KP Rotterdam
The Netherlands

Registered owner

Neptune Equipment B.V.
The Netherlands

Latest data adjustment

12 October 2016
