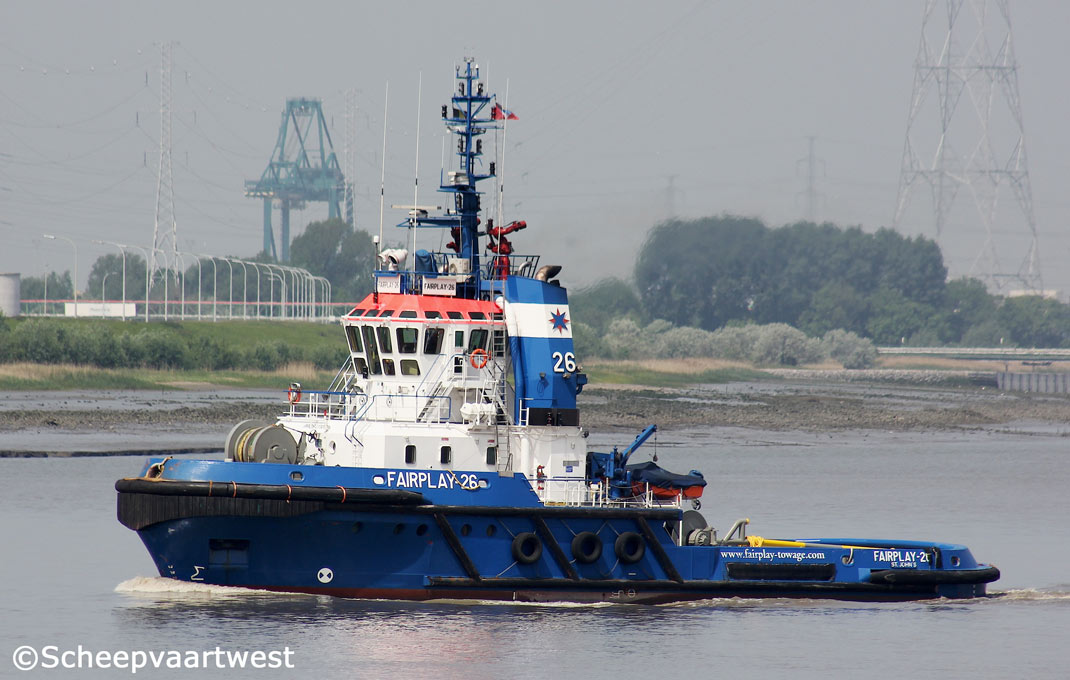

Fairplay 26 01

Antwerpen 22 May 2015



Name

FAIRPLAY-26

Type

Tug

IMO-number

9211004

Call sign

V2FF3

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

499 t

DWT

Summer: 290

NT

149 t

Length

34,89 m overall

32,04 m registered

Breadth

10,90 m registered

Draught

Min.: 4,60 m

Max.: 5,20 m

Forecastle

14,61 m

Depth

5,65 m moulded

Speed

13,5 knots

Built

2001

Keel laid

08.03.1999

Launch date

09.12.1999

Date of completion

01.2001

Builder

Astilleros Zamakona, S.A.
Puerto Pesquero, s/n
48980 Santurce
Spain

Yard number

483

Hull material

Shipbuilding steel (higher tensile)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

2x Deutz MWM SBV 9M628 - 4 stroke 9 cylinder 240 x 280 mm diesel engines - each 2.025 kW at 1.000 rpm

Year of manufacture: 1999

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propellers

2x Schottel rudder propeller SRP 1515 CPP in Kort nozzles at 300 rpm

Boilers

1x Water heater, oil fired - 10,0 bar

Heating surface: 8,0 m²

Year of Manufacture: 1998

Electric installations

2x Plants 380/220 V - 169 kVA

1x Plant 380 V - 62 kVA

Generators

2x MAN D2866 TE main diesel generatorsets each 169 kVA

Harbour generator

1x MAN 0226 MTE diesel generatorset 62 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x STT 110 LK fixed pitch propeller Schottel - 200 kW, forward

Bollard pull

65,3 t

Towing winch

2x Ulstein Brattvaag SLM 63-2T brake load 125 t towing wire 1.200 / 1.200 m on spare drum

Towing hook

Seebeck 65 t

Fire fighting

FIFI 1

2x Monitors each 1.350 m³ per hour / 140,00 m throw 40,00 m height

Tank capacities

Ballast water: 62 m³

Gas oil: 237 m³

Anchor equipment

3x Anchors weight each 780 kg

Chain length: 330,00 m

Lifting equipment

1x Crane - SWL 2,26 t

Manager

Fairplay Towage
Hamburg
Germany

Registered owner

Fairplay Schleppdampfschiffs
Bei den Mühren 1
20457 Hamburg
Federal Republic of Germany

Latest data adjustment

02 July 2015
