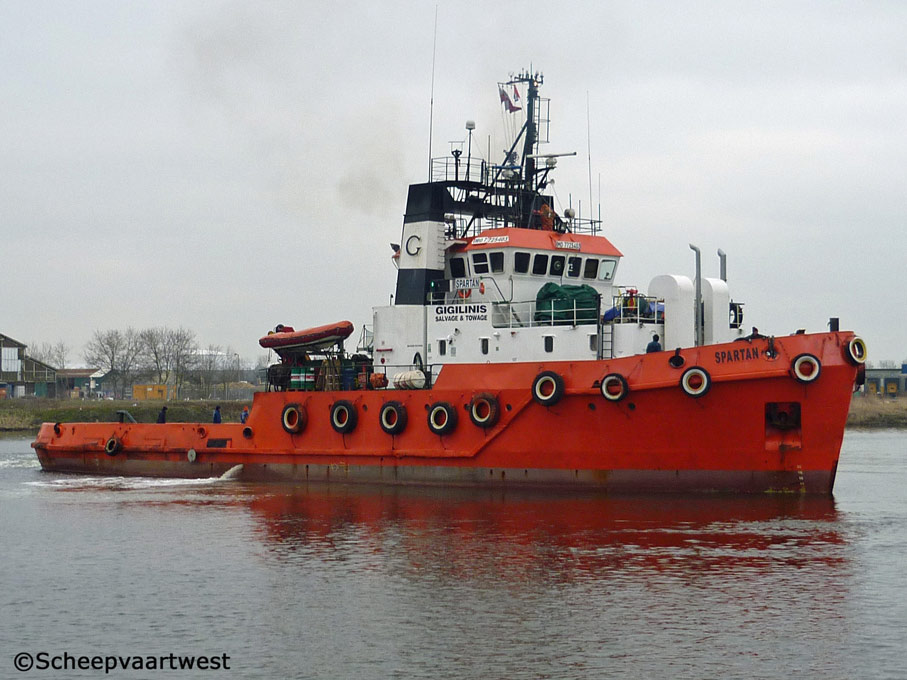

Spartan 08

Vlissingen, The Netherlands 13 March 2012

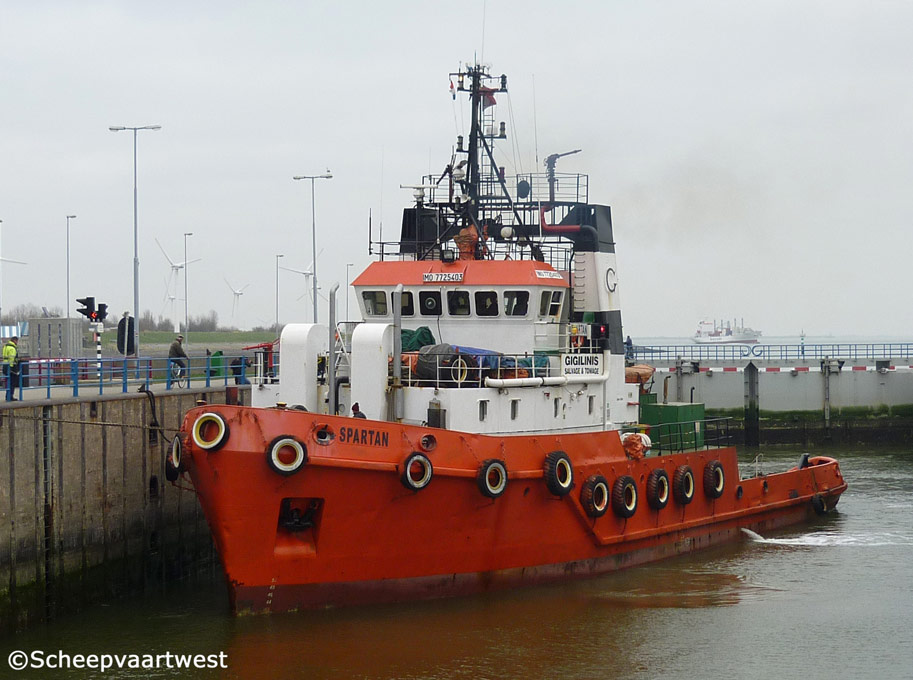

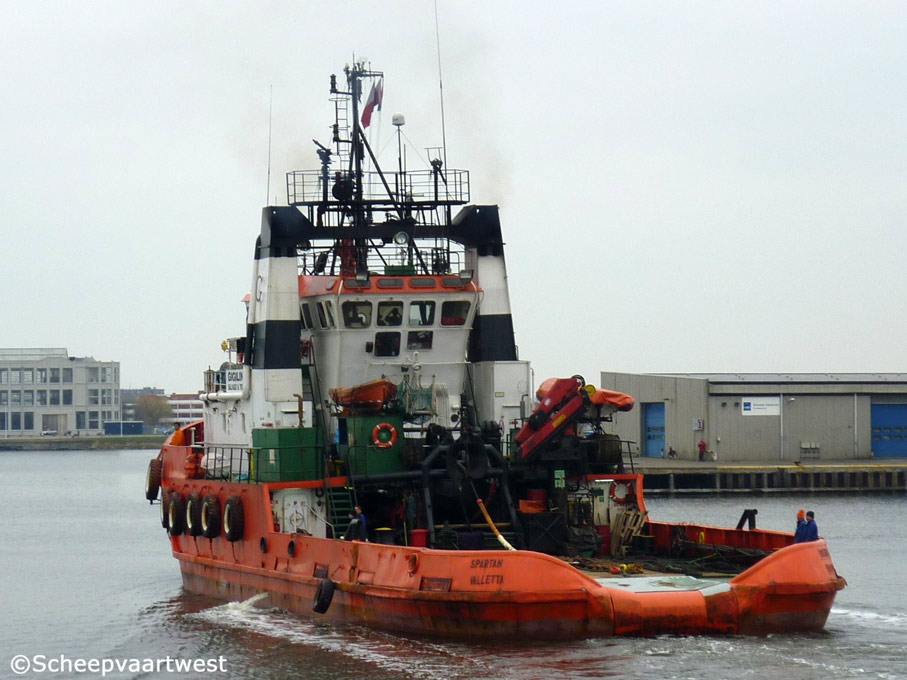

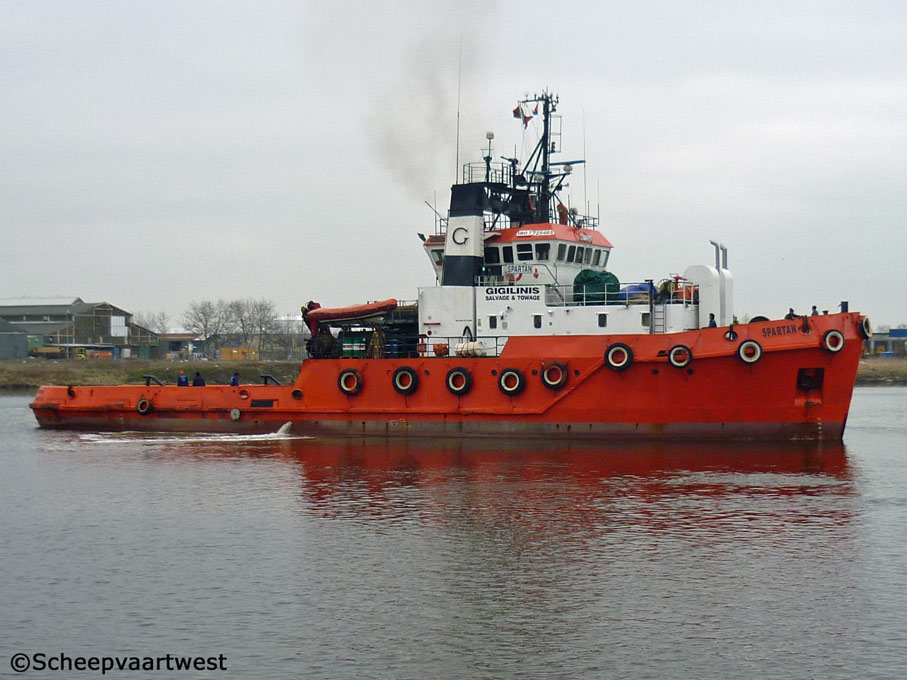

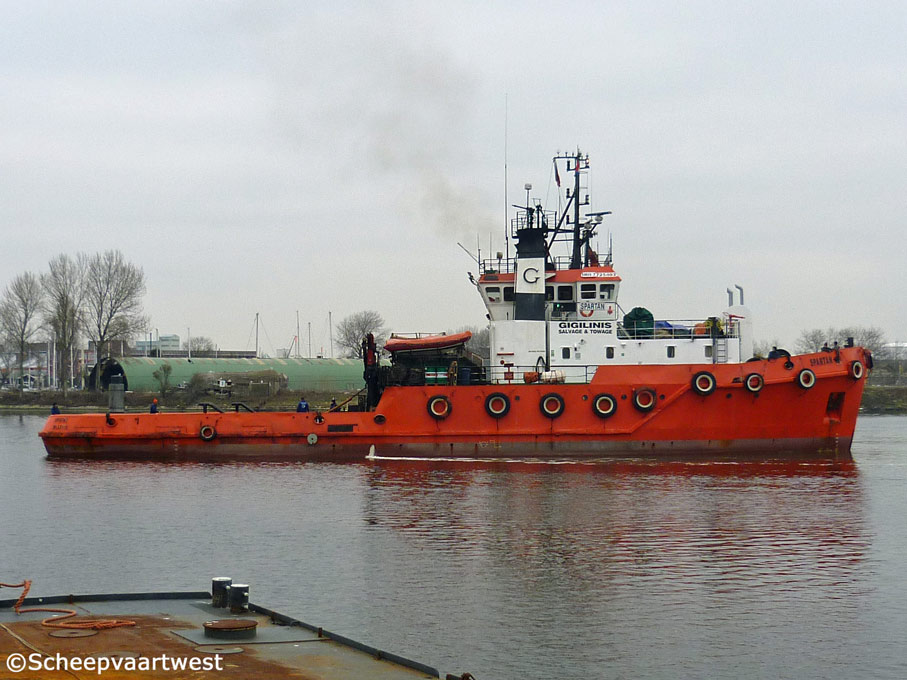

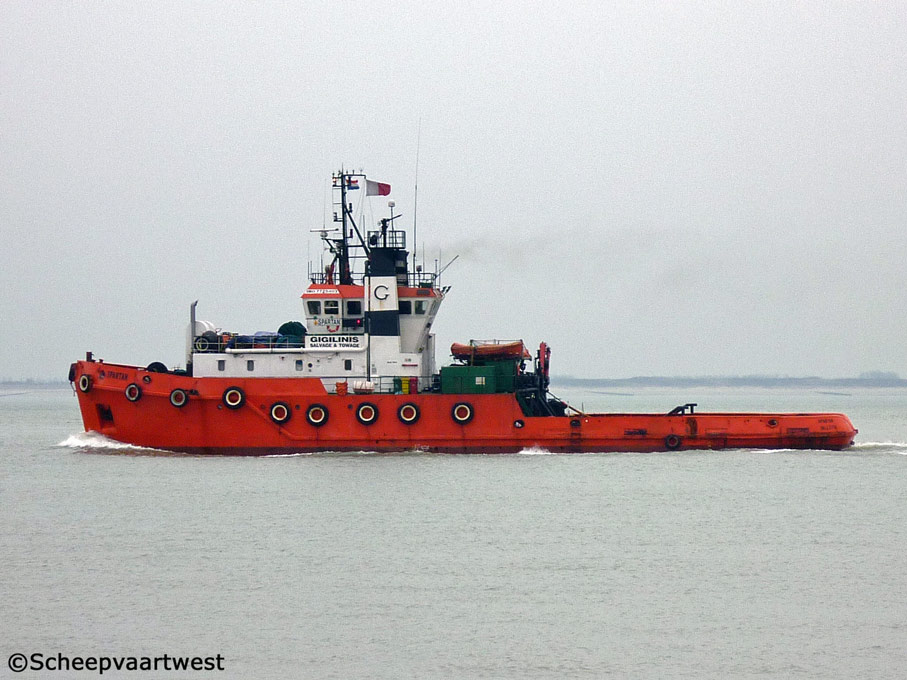

Spartan 09   Spartan 10   Spartan 03   Spartan 04   Spartan 06   Spartan 01
Vlissingen 13/05/12 Vlissingen 13/05/12 Vlissingen 13/05/12 Vlissingen 13/05/12   Vlissingen 13/05/12   Vlissingen 13/05/12

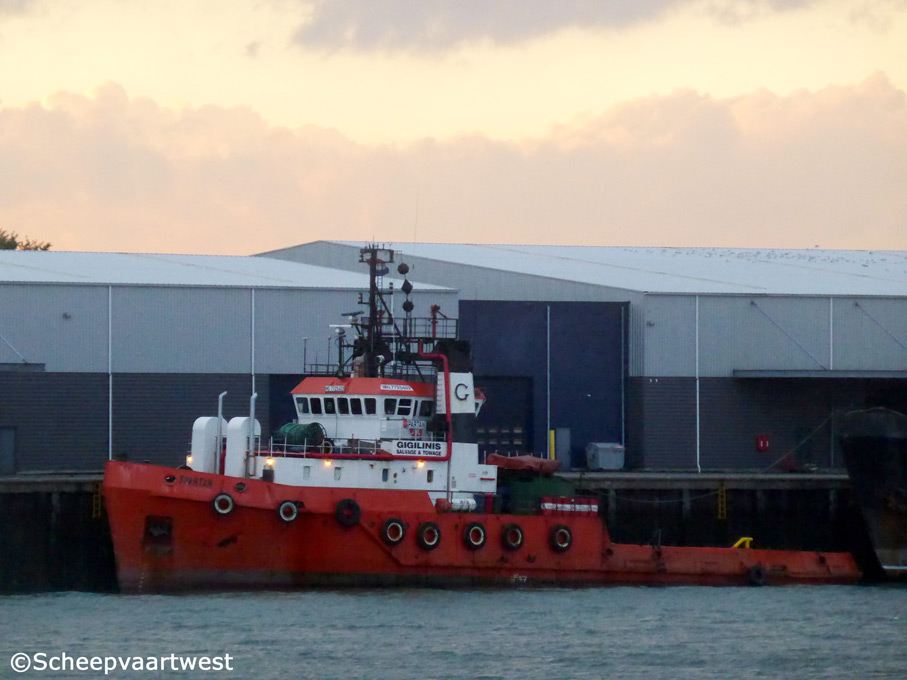

Spartan 11
Vlissingen 08/10/14


Name

SPARTAN

Previous names

1979 - 1996 Abeille Bretagne

1996 - 08.2001 Pacific Salvor

2001 - 11.2009 Jantar

Type

Salvage tug / Anchor handling tug

IMO-number

7725403

Call sign

9HCL7

Flag

Malta

Port of registry

Valletta

GT

668 t

DWT

Summer: 1.200 t

NT

200 t

Length

44,75 m overall

43,75 m between perpendiculars

Breadth

11,40 m

Draught

5,80 m

Freeboard

708 mm

Depth

5,40 m

Speed

Cruising: 10,0 knots

Max.: 12,0 knots

Built

1979

Date of completion

09.07.1979

Builder

Manche Industrie Marine

Dieppe
France

Yard number

1271

Hull material

Steel

Watertight bulkheads

6

Continuous decks

1

Main engine

2x Semt-Pielstick Type 6PA6L - 4 stroke 6 cylinder 280 x 290 mm diesel engine - Total 4.800 bhp / 3.532 kW at 1.000 rpm

Built: 1978

Builder: Alsthom Atlantique, Montoir De Bretagne - France

Propellers

2x Screw propeller controllable pitch - at 177 rpm

4 bladed berg

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Shaft generator

2x 140 kVA / 112 kW

Generators

1x MWM Diesel generatorset 140 kVA - 112 kW - 173 hp

Harbour generator

1x Deutz diesel generatorset 62 kVA

Bow thruster

Aquamaster retractable azimuth driven thruster

Driven by MWM 600 bhp diesel

Bollard pull

63,0 t

Deck & towing equipment

Towing Winch: Norwich hydraulic - Double drum winch

Drums: 95 t pull - 150 t break

Drums capacity: Each 1.100 m x 52 mm x 230 t MBL

Control: Remote from wheelhouse

Stern Roller: Fitted

Deck Crane: Hiab Knuckleboom

6 Tons @ 3 M,

1,35 Tons @ 10,3 M

Work Boat: Zodiac type

Fresh water maker

1 Ton / 24 Hours

Tank capacities

Gas Oil: 701 m³

Fresh water: 44 m³

Lifting equipment

1x Deck crane: Hiab Knuckleboom

SWL 6,0 t at 3,00 m

SWL 1,35 t at 10,30 m

Accommodation

Air conditioned for 13 persons

Manager

Pella Shipping

Thessaloniki
Greece

Operator

Gigilinis Shipping Group

13, Kountouriotou Str.

54 625, Thessaloniki

Greece

Registered owner

Princess Management Ltd.
Piraeus
Greece

Latest data adjustment

25 May 2014
