Taurus 01
Ponta Delgada, Azores 29 September 2013

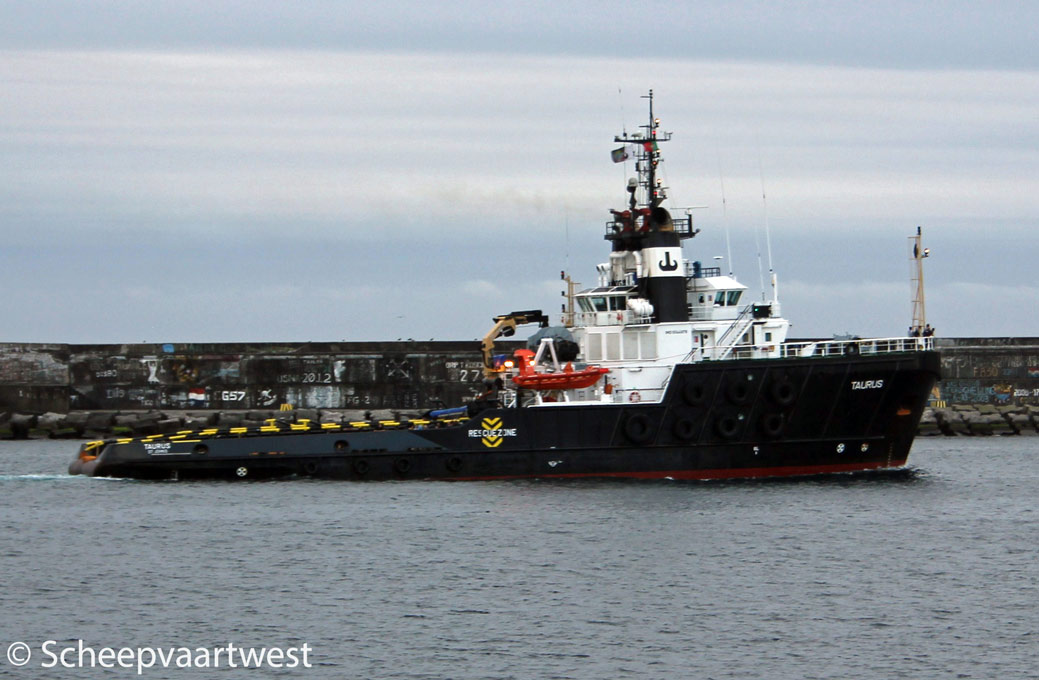

Taurus 02
Ponta Delgada 29/09/13


Name

TAURUS

Type

Anchor handling tug - Deep sea tug boat

Basic functions

Long distance towing/anchor-, hose handling/berthing/fire fire fighting/salvage

IMO-number

9344978

Call sign

V2CK7

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

1.767 t

NT

530 t

Length

58,58 m overall

54,13 m registered

Breadth

14,80 m

Draught

Max.: 5,82 m

Forecastle

19,33 m

Freeboard

1.060 mm

Depth

7,65 m to main deck

Speed

Max.: 16,0 Knots

Economical: 12,5 knots

Built

2007

Keel laid

15.05.2006

Launch date

25.09.2006

Date of completion

20.03.2007

Builder

MW Abwicklungsgesellschaft GmbH (Mutzelfeldt Yard)
Woltmanstr. 2
27472 Cuxhaven
Federal Republic of Germany

Yard number

253

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

3

Continuous decks

1

Main engine

2x MAN B&W 14V32/40 - 4 stroke 14 cylinder 320 x 400 mm diesel engines - each 7.000 kW total 14.000 KW at 750 rpm

Year of Manufacture: 2006

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Gearboxes

2x Renk AG

Propellers

2x Controllable pitch propeller - aft at 172 rpm

2x 3.800 mm in HR nozzles

Rudders

2x Flap type high performance rudders

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 31,9 m²

2x Thermal oil heater, exhaust gas heater - 10,0 bar

Heating surface: 62,5 m²

Year of manufacture: 2006

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plants each 400/230 V - 625 kVA

1x Plant 400 V - 3.000 kVA

1x Plant 400 V - 100 kVA

1x plant 24 V - 80 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 230 Ah

Shaft generator

2x 1.1500 kVA

Generators

2x MAN D 2842 LE 301 diesel engines each 500 kW coupled with generator each 625 kVA, 50 Hz, 230/400 V

Emergency generator

1x Diesel generatorset 100 kVA

Batteries

2x Batteries for automation each 230 Ah

1x Battery for UPS radio 180 Ah

2x Batteries for start emergency engine each 80 Ah

Compressed air receivers

2x Receivers each 1.500 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

2x Electr. driven each 400 kW CPP, forward

Stern thruster

1x Electr. driven 400 kW CPP, aft

Towing / Anchor Handling

Bollard pull: 207 t

Winch: Hatlapa E-DD Towing Winch 200/3200 kn electr. driven 100/200 t at 15/7,5 m/min

Main towing wire: 1.600 m, 76 mm

Spare wire: 1.200 m, 76 mm

Working wire: 300 m, 76 mm

Storage winch: 1 x 1.200 m, 76 mm

Cable lifter: 3,5" to 5"

Chain locker: 2x 33,75 cbm

Salvage equipment

2x Portable diesel-driven salvage pumps Workboat with 50 bhp outboard engine

Fire fighting pump

2x 1.200 m³/hr each at 14,0 bar

Deck lay-out

Deck area: 205 m²

Tugger winches: 2x 10 t at 15 m/min

Fork/Towing pins: Karmoy - SWL 300 t

Stern Roller: SWL 300 t

Tank capacities

Heavy fuel oil: 1.115 m³

Marine diesel oil: 124 m³

Fresh water:77 m³

Evaporator: 7 m³/24h

Ballast water: 140 m³

Anchor equipment

2x High speed anchor winches warping head

3x Anchors weight each 1740 kg

Chain Length: 440,00 m

Lifting equipment

1x Hydraulic deck crane - SWL 2,6 t at 14,00 m

Accommodation

Total capacity: 21 persons

Officer single berth cabins with separated bedroom: 4

Crew single berth cabins: 9

Double berth cabins: 2

Four berth cabins: 1

Crew

Min.: 11 persons

Crew size

21

Manager

Harms Bergung Transport & Heavylift GmbH & Co. KG
Ehrenbergstr. 66-68
22767 Hamburg
Federal Republic of Germany

Owner

Harms Offshore AHT "TAURUS"
Hamburg
Germany

Registered owner

Harms Offshore AHT "TAURUS" GmbH & Co. KG
Ehrenbergstr. 66-68
22767 Hamburg
Federal Republic of Germany

Last update

06 November 2013
