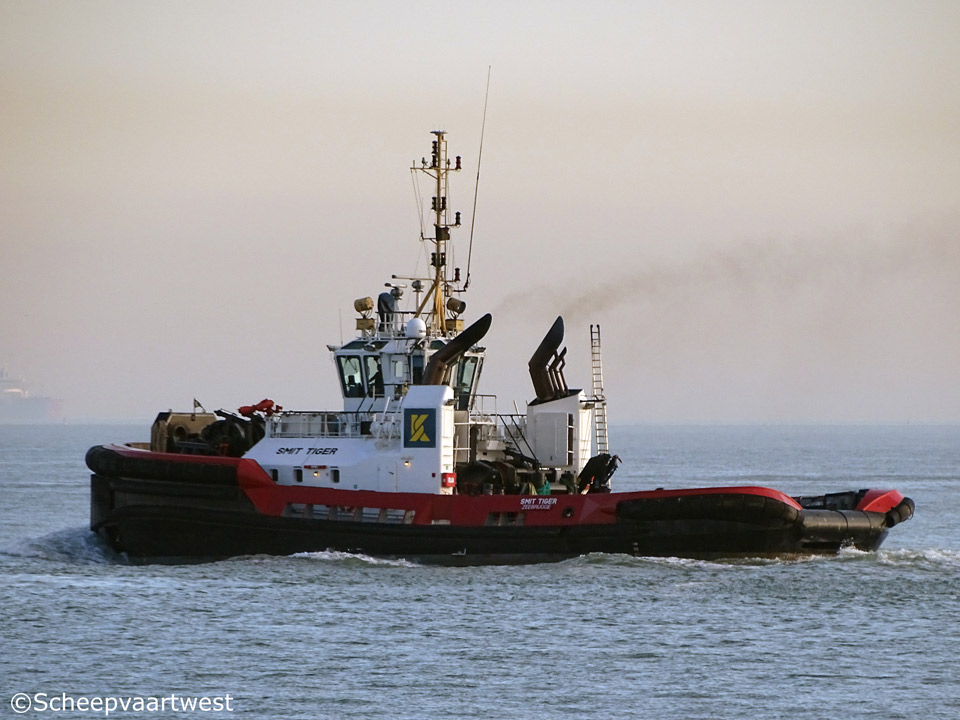

Smit Tiger 29
Westerschelde 14 December 2016

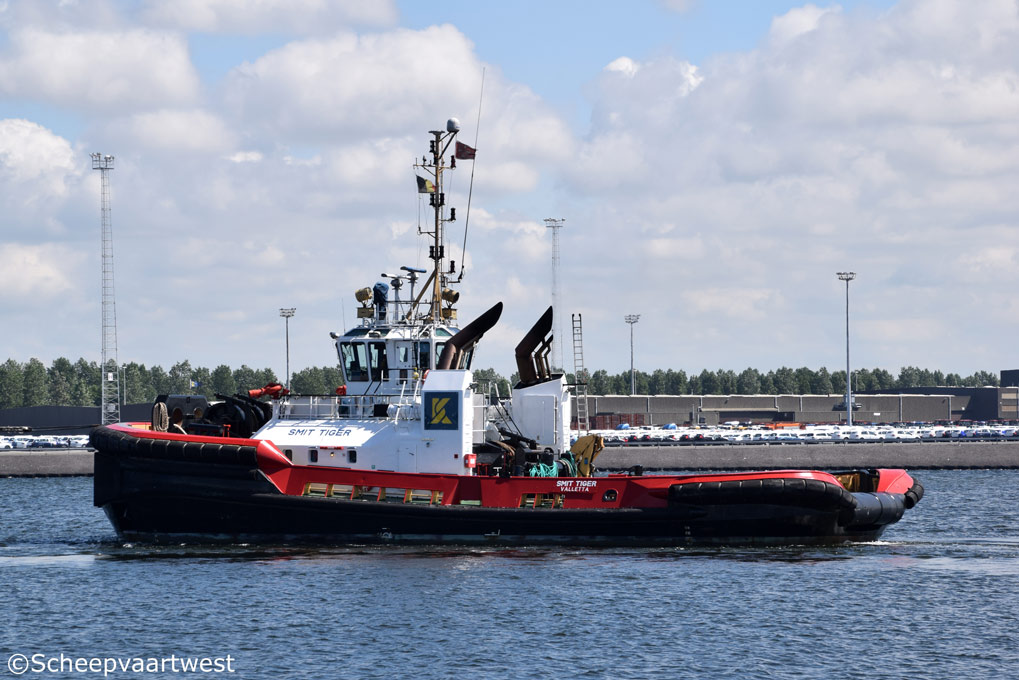

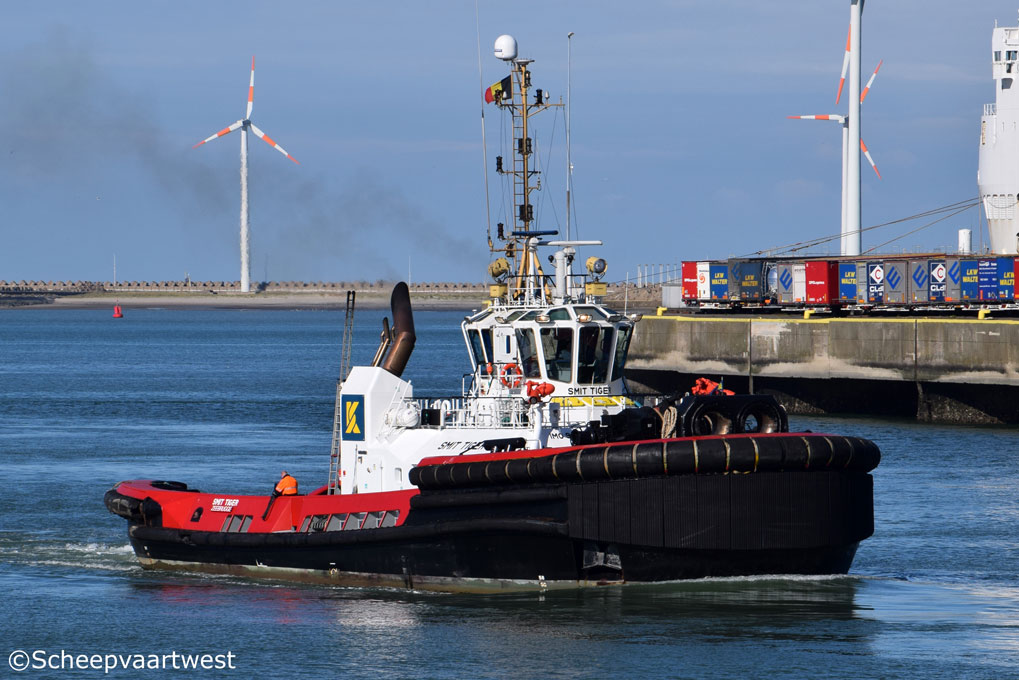

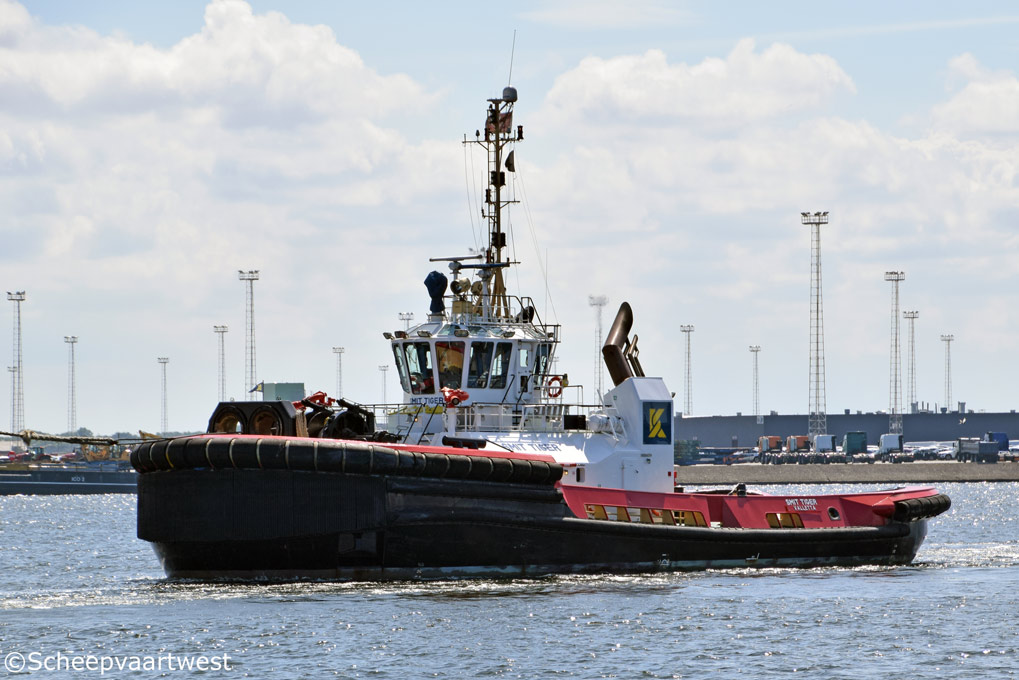

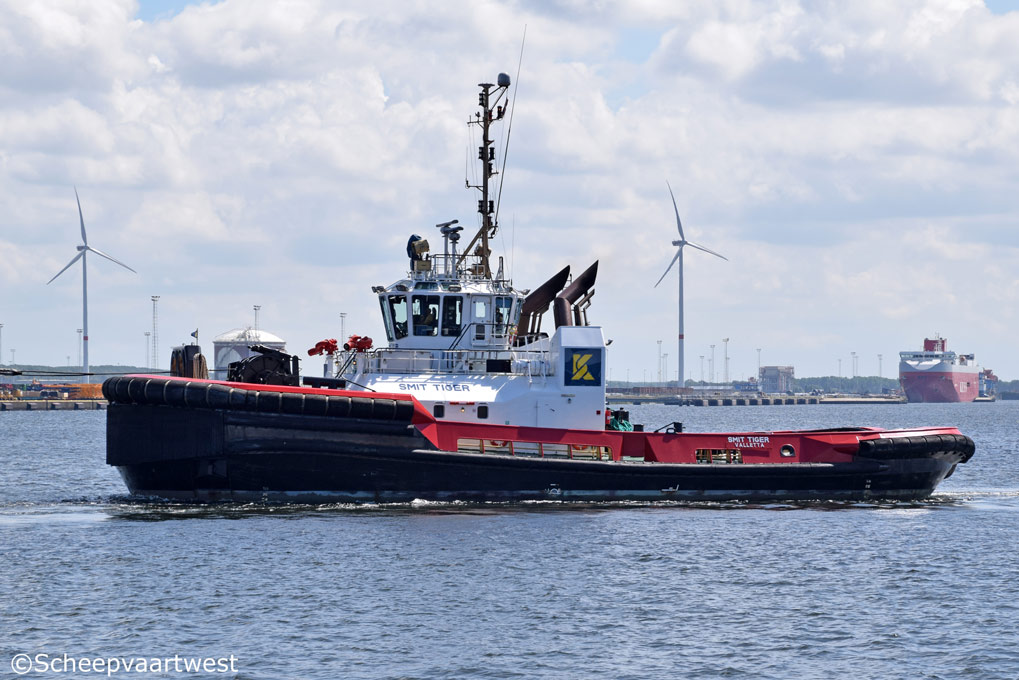

Smit Tiger 24   Smit Tiger 25   Smit Tiger 26   Smit Tiger 28
Zeebrugge 05/08/16   05/08/16   05/08/16   09/10/16

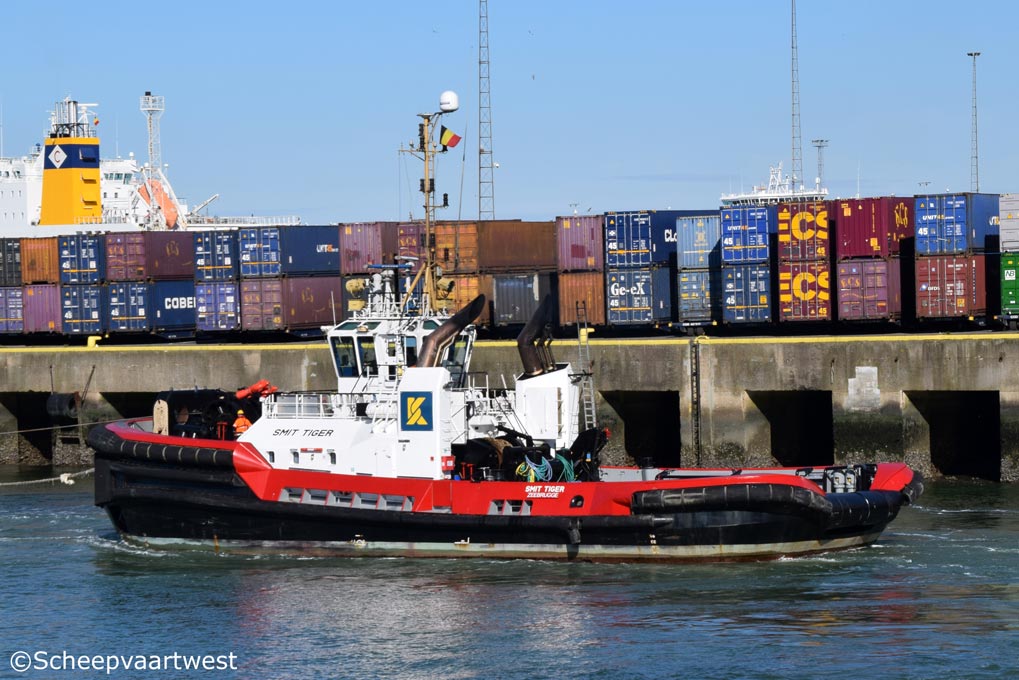

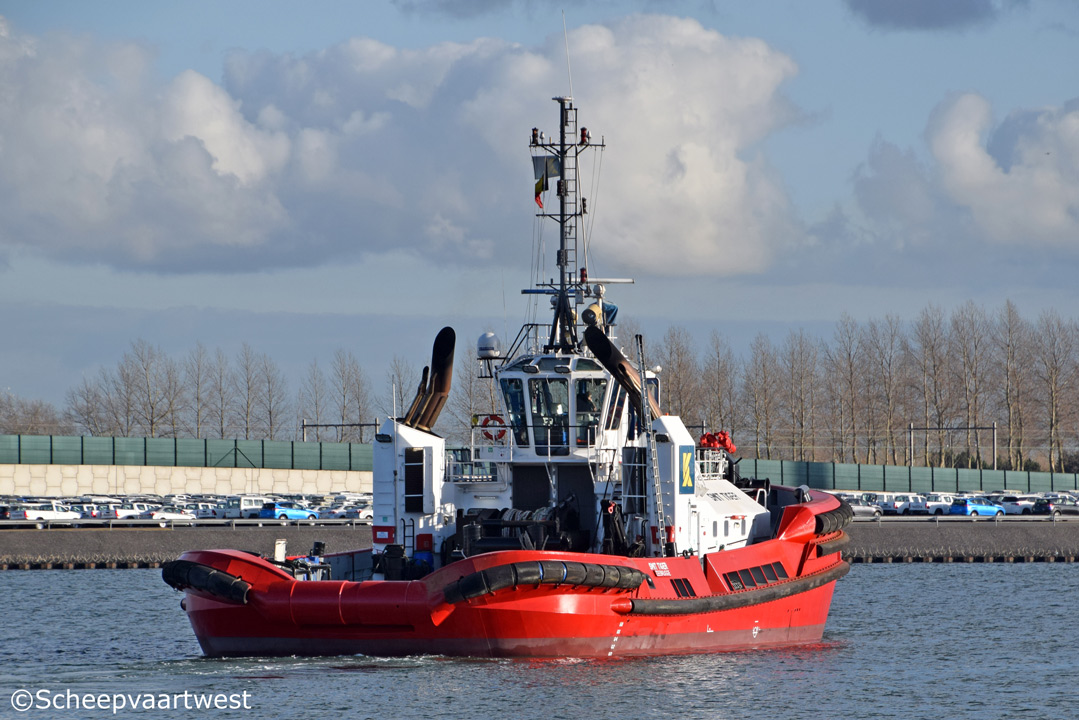

Smit Tiger 27   Smit Tiger 32   Smit Tiger 31
09/10/16   17/11/17   17/11/17

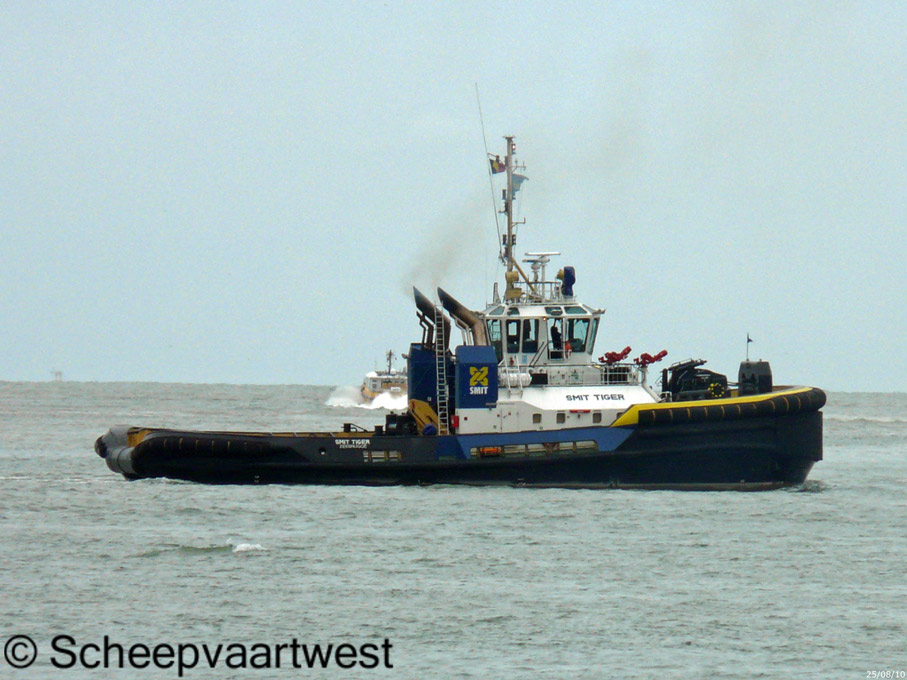

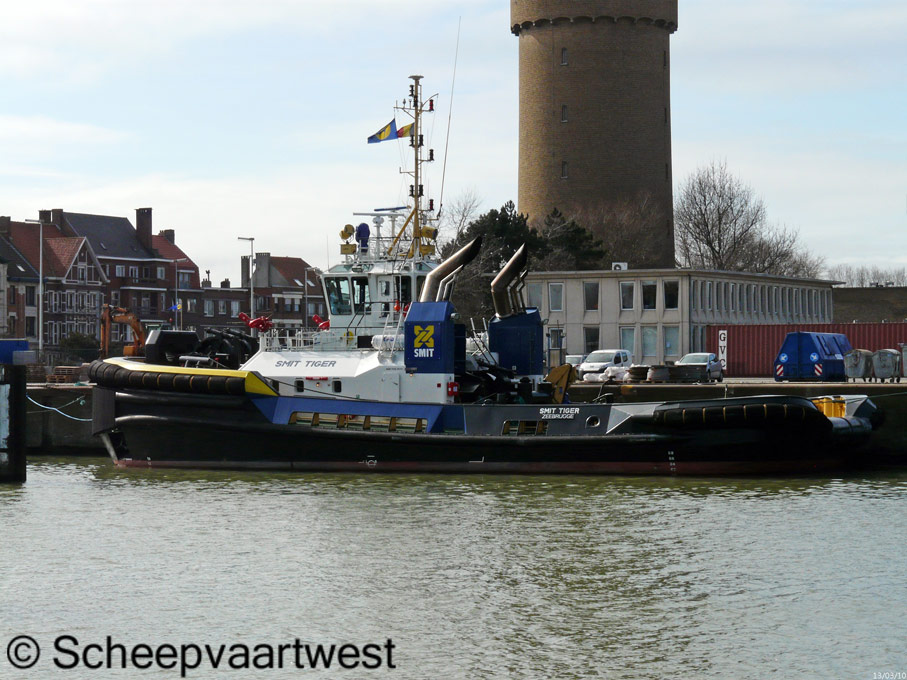

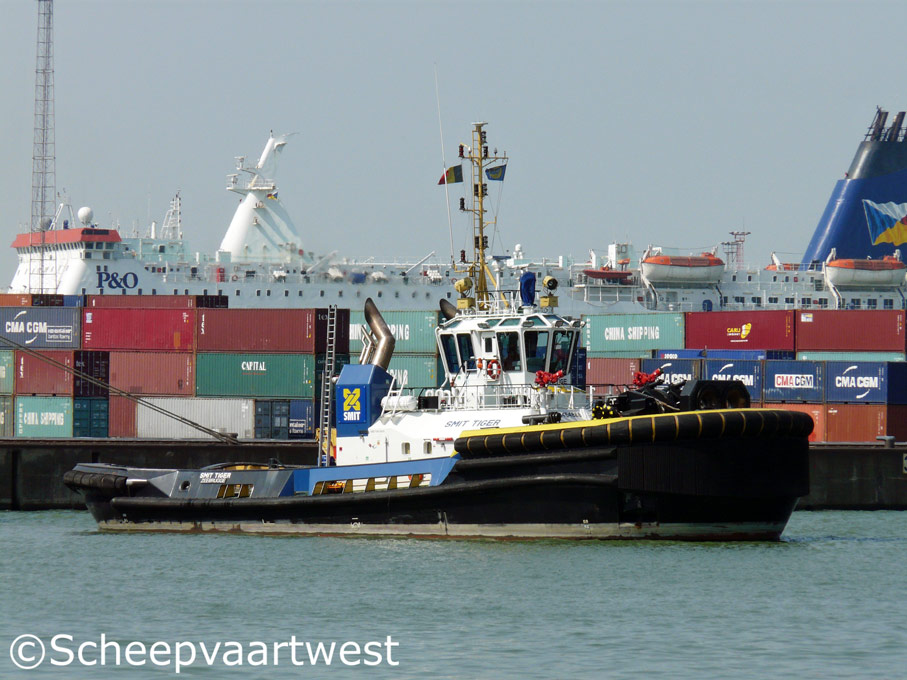

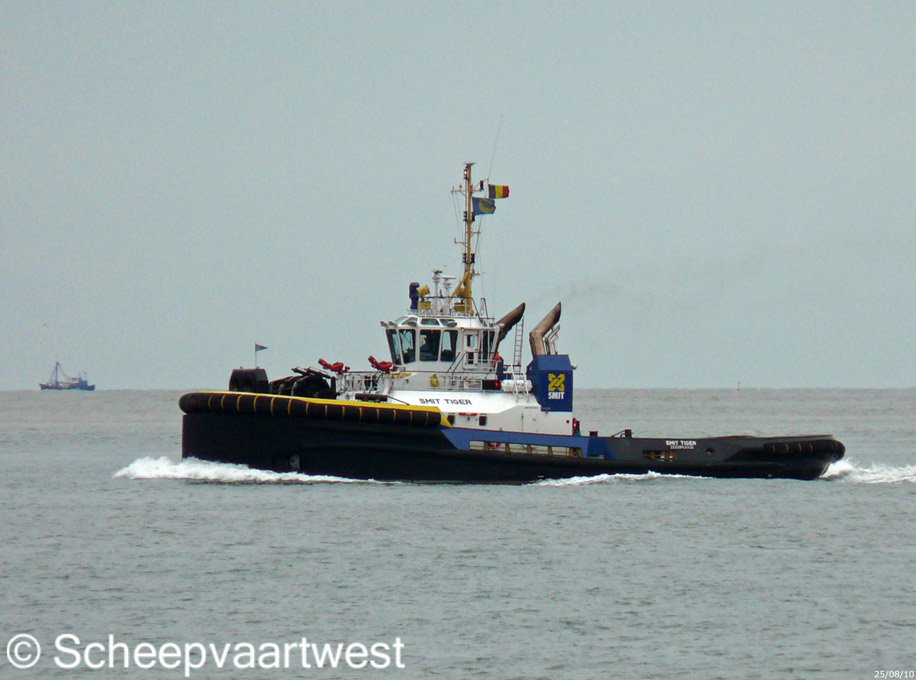

Smit Tiger 05   Smit Tiger 07   Smit Tiger 01   Smit Tiger 11
25/08/10    25/08/10    13/05/10    18/04/11

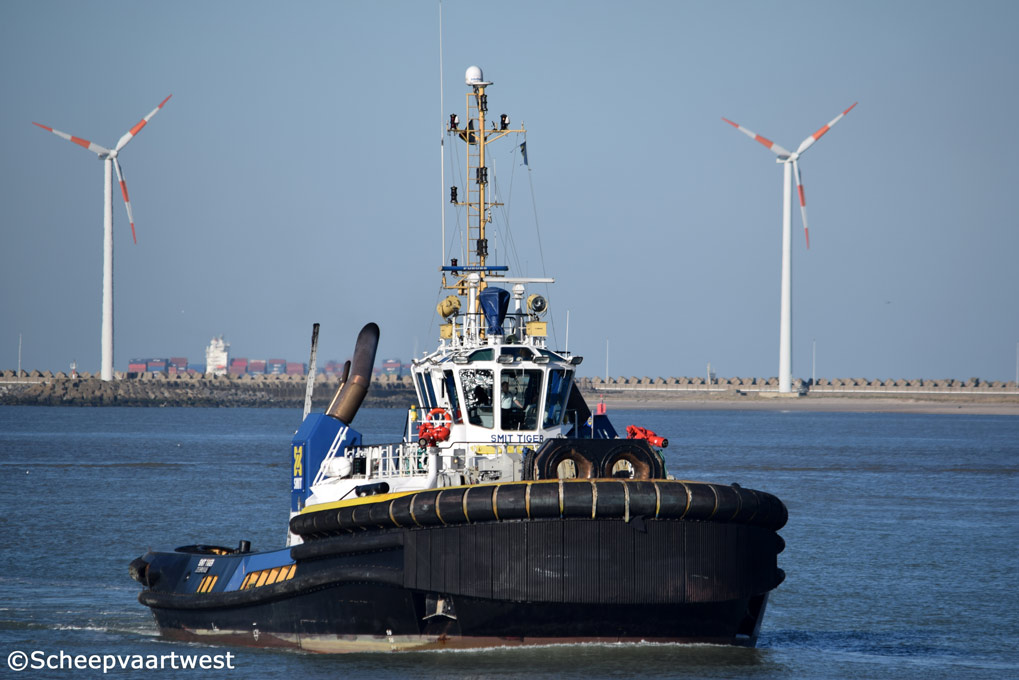

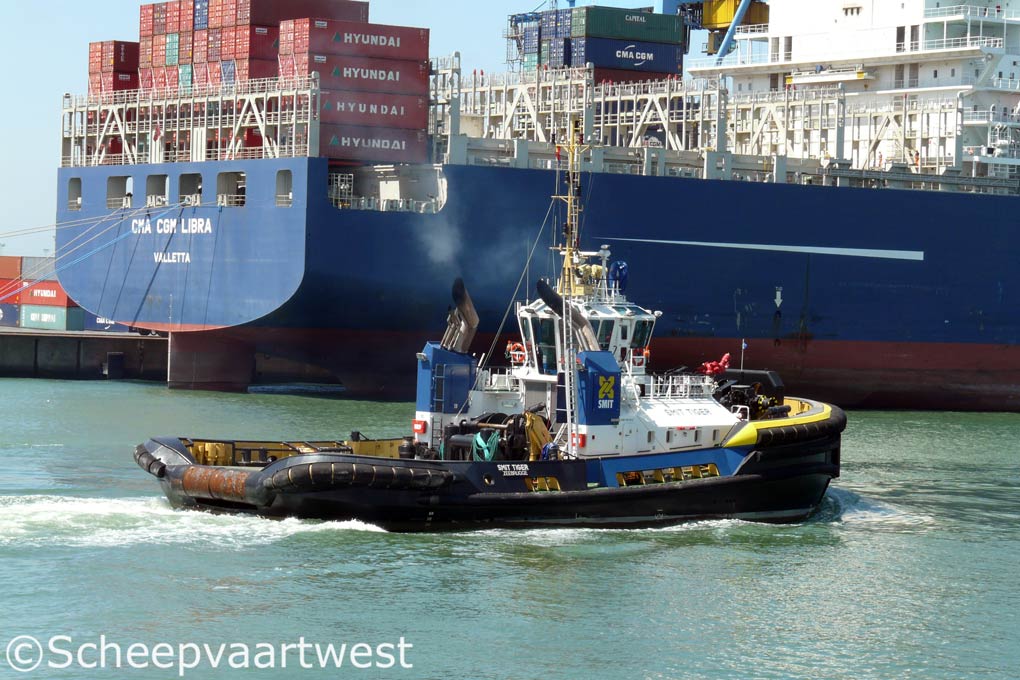

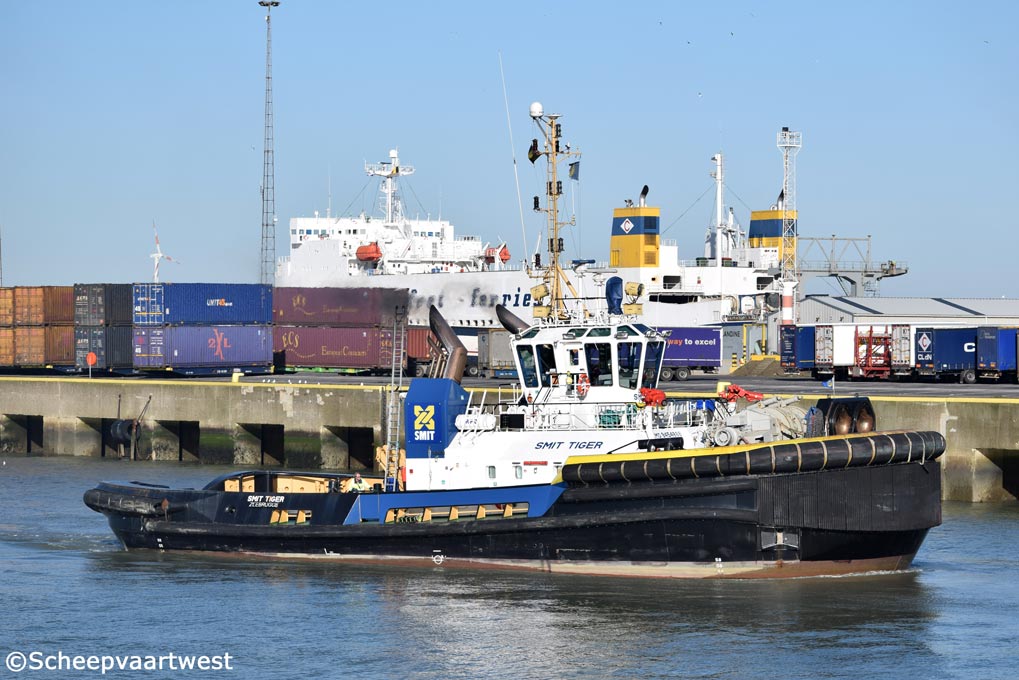

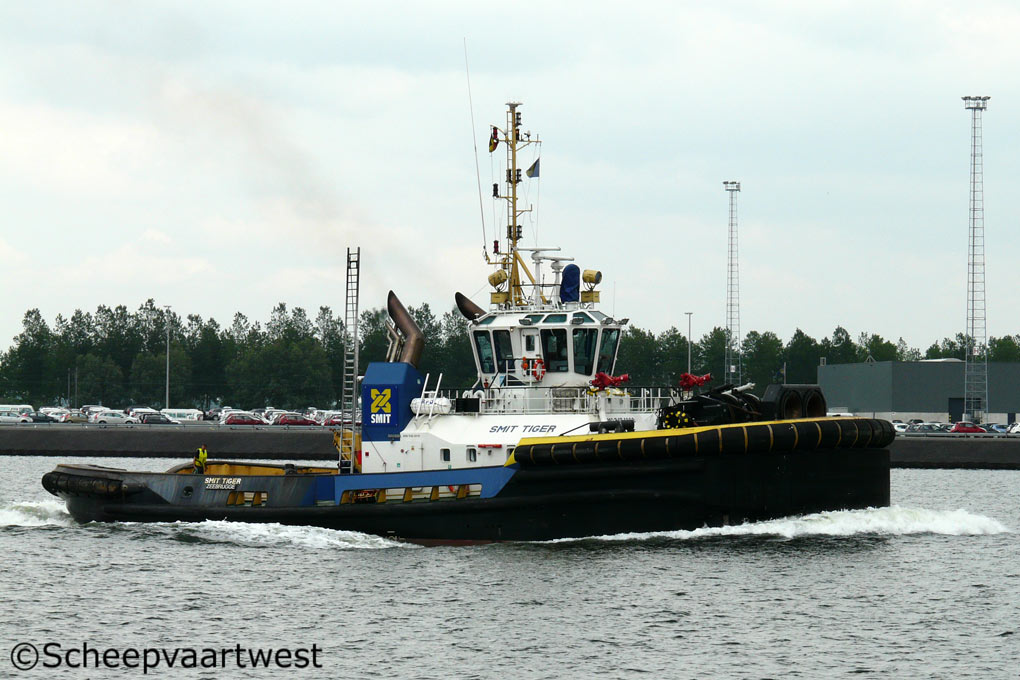

Smit Tiger 12   Smit Tiger 15   Smit Tiger 18   Smit Tiger 20
29/06/11   10/06/12   03/02/14   03/02/14



Name

SMIT TIGER

Type

Seagoing Tug - Azimuth Stern Drive tug 3213

Basic functions

Towing, mooring, escorting and fire fighting operations

IMO-number

9454888

Flag

Malta

Port of registry

Valletta

Previous flag

2009 - 2010 Bahamas, Nassau - Call sign: C6YC5

2010 - 2016 Belgium, Zeebrugge - Call sign: ORPO

GT

484 t

NT

145 t

Displacement

1.012 t

Length

31,10 m overall

Breadth

13,29 m overall

Draught

Aft: 6,26 m

Depth at sides

5,50 m

Speed

Max.: 14,2 knots

Eco: 9,0 knots

Built

2009

Launch date

08/03/2009

Date of completion

10/2009

Builder

Damen Shipyard

Song Cam Shipyard

Haiphong

Vietnam

Yard number

513004

Hull type

Single hull

Number of decks

1

Main engine power

2x Caterpillar C280-8/MC diesel engines - 5.420 kW / 7.268 bhp at 1.000 rpm

Propellers

2x Controllable pitch ASD propellers - diameter 3.000 mm

Azimuth thrusters

2x Rolls Royce US 285

Generators

2x Caterpillar C9TA diesel generatorsets each 188 kVA - 230/400V, 50 Hz

Auxiliary equipment

Bilge pumps: 2x Sterling SIHI AKHK 6101 - 34 m³/h

Bilge water separator: Facet 0,5 m³/h

Fuel pumps: Sterling SIHI AKHA 5101 and 2x R35/40

Fuel purifiers: 2x Westfalia OTC 2-02-137

Cooling system: Box cooling + anti marine growth system

Sewage treatment plant: Headhunter TW-200B

Pressure set: Headhunter Turbopaq-230

Hydraulic system: Double main engine driven pumps

Dispersant: Dispersant pump set with 2 spray booms

Fire fighting: Main engine driven pumps, 2x 1400 m³/h (FiFi 1)

Fifi monitors: 2x 1.200 m³/h, water/foam

Deck equipment

Anchor equipment: 2x 585 kg Pool ( HHP) + 330,00 m chain, 24 mm, U2

Anchor/towing winch: Hydraulically driven escort winch with double drum and warping head, pull 100 ton at 0-10 m/min,

1x 320,00 m diameter 56 mm wire, 1x 160,00 m diameter 60 mm rope, 320 ton brake

Capstan: 5 ton at 15 m/min. Electrically driven

Towing winch aft: Hydraulically driven, escort winch with spooling device, pull 80 ton at 0-11 m/min, 600,00 m /56 mm wire, 320 ton brake

Towing hook aft: Mampaey 100 ton SWL.

Stern roller: SWL. 126 ton, length: 3,00 m diameter: 1,20 m

Bollard pull

Ahead: 96,6 t

Astern: 89,6 t

Lifting equipment

1x Deck crane Heila HLM 10-2S - SWL 1.100 kg at 7,84 m

Tank capacities

Fuel oil: 200,0 m³

Fresh water: 65,6 m³

Foam: 14,3 m³

Dispersant: 3,0 m³

Lubrication oil: 10,7 m³

Bilge water: 4,9 m³

Dirty oil: 4,9 m³

Sewage: 2,3 m³

Sludge: 2,4 m³

Nautical & communication equipment

Searchlight: 2x Pesch Xenon 450W

Radar system: 2x Furuno FAR-2117

Compass: Magnetic Kotter/ Satellite Furuno SC 50

Autopilot: Simrad AP-50

GPS: Furuno GP-150

Echosounder: Furuno FE-700

Speedlog: Furuno DS-80

VHF Radio Telephone: 2x Sailor RT5022 (one with DSC)

SSB: Furuno FS-1570

AIS: Furuno FA-150

Navtex: Furuno NX-700

Inmarsat: Furuno Felcom 15 + spare

Anemometer: Windsonic OMC 115

Accommodation

For 13 persons, insulated and finished with durable modern linings, floating floors, acoustical ceiling in the wheelhouse and air-conditioned. With 8 cabins, galley, mess/dayroom and sanitary facilities.

Manager

Smit Harbour Towage Rotterdam B.V.

Waalhaven O.Z. 85

Havennummer 2204

3087 BM Rotterdam

The Netherlands

Bareboat charterer

URS België N.V.

Italiëlei 3 bus 2

B-2000 Antwerpen

Belgium

Owner

Smit Harbour Towage Rotterdam B.V.

Smit Shipping Singapore Pte. Ltd.

23 Gul Road

629356 Singapore

Republic of Singapore

Joint venture

Koninklijke Boskalis Westminster N.V. & KOTUG International B.V.

Head quarters

Kotug Smit Towage

Wilhelminakade 300

3072 AR Rotterdam

The Netherlands

Renamed

VB Tiger

Belgium, Zeebrugge - Call sign: ORPO

Owner: Boluda Towage Europe

Latest data adjustment

20 March 2020
