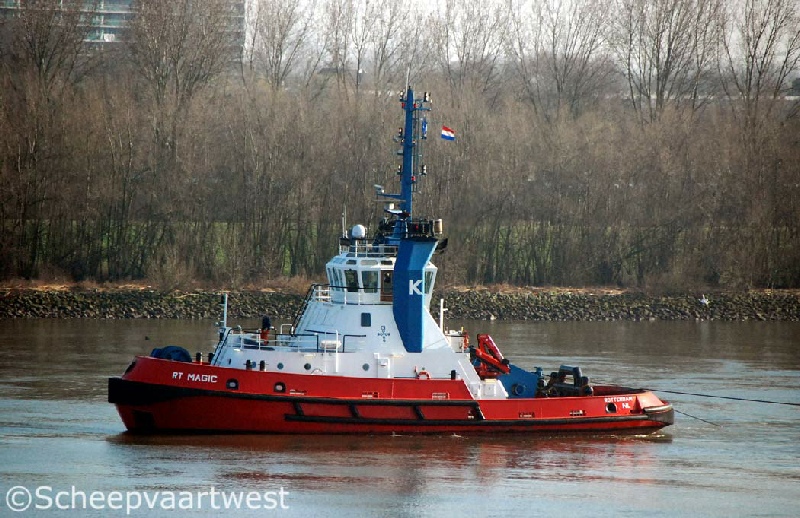

RT Magic 01
Spijkenisse 19 March 2011



Name

RT MAGIC

Type

Rotor tug

IMO-number

9190066

Call sign

PHBR

Flag

The Netherlands

Port of registry

Rotterdam

GT

449 t

DWT

325 t

NT

134 t

Length

31,63 m overall

29,08 m registered

Breadth

12,00 m registered

Draught

3,858 m

Air draft

19,05 m

Freeboard

554 mm

Depth

4,40 m moulded

Speed

12,5 knots

Built

1999

Keel laid

30.04.1998

Launch date

18.09.1998

Date of completion

04.1999

Builder casco

Construcciones Navales P. Freire, S.A.
Avenida Beiramar, 18
36208 Vigo 36
Spain

Yard number: 479

Builder completion

Machinefabriek Padmos
Stellendam
The Netherlands

Hull material

Shipbuilding steel (standard)

Watertight bulkheads

4

Continuous decks

1

Main engine

3x Caterpillar 3516 B DITA - 4 stroke single acting 16 cylinder 170 x 190 mm diesel engines - each 1.566 kW total 4.698 kW / 6.300 hp at 1.600 rpm

Transmission: Main propulsion acts through gear on the propellershaft

Year of manufacture: 1998

Manufacturer: Caterpillar Tractor Co.
Peoria , Illinois 61629
United States of America

Propeller

3x Schottel SRP-1212FP Azimuth Propellers - aft 248 rpm

Diameter: 2.150 mm - 5 blades

Boilers

1x Water heater, oil fired - 2,6 bar

Built: 1998

Electric installations

2x Plant 380/220 V - 156 kVA

1x Plant 380 V - 26 kVA

Generators

2x Caterpillar 3306B DI-T - 6 Cylinder 121 x 152 mm diesel engines each 142 kW at 1.500 rpm coupled with Caterpillar SR4 generator each 156 kVA

Built: 1998

Manufacturer: Caterpillar Tractor Co.

Harbour generator

1x Perkins diesel engine 22 kW at 1.500 rpm coupled with generator 26 kVA

Built: 1998

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bollard Pull

75 t ahead
73,5 t stern

Towing equipment

Aft towing winch:1x Ridderinkhof AMW-H-236

1 upper drum 650 m - 56 mm steel wire

2 lower drums capacity 450 m - 56 mm steel wire

For towing winch: 1x Ridderinkhof TW-H-300 Hydraulic

1 drum capacity 200 m - 56 mm steel wire

Towing hook

1x van de Graaf GSH-100 - SWL 100 t

Tank capacities

Fuel: 177,5 m³

Potable water: 25,6 m³

Lubricating oil: 9,0 m³

Dirty oil: 7,8 m³

Ballast water: 113,6 m³

Anchor equipment

3x Anchors weight each780 kg

Chain length: 330,00 m

Lifting equipment

1x Fassi F130 Hydraulic Crane - SWL 885 kg at 11,55 m

Fire fighting

1x Unitor FJM-150W1 Monitor

1x K&R 600 m³ pump at 18,0 bar

Accommodation

3 single cabins, 2 double cabins

Manager

KOTUG International B.V.
Parklaan 2
3016 BB Rotterdam
The Netherlands

Operator

KOTUG International B.V.

Owner

K&K International B.V. (Kotug Kooren)
Parklaan 2
3016 BB Rotterdam
The Netherlands
