| Spijkenisse, The Netherlands 24 July 2010 |
|
Name |

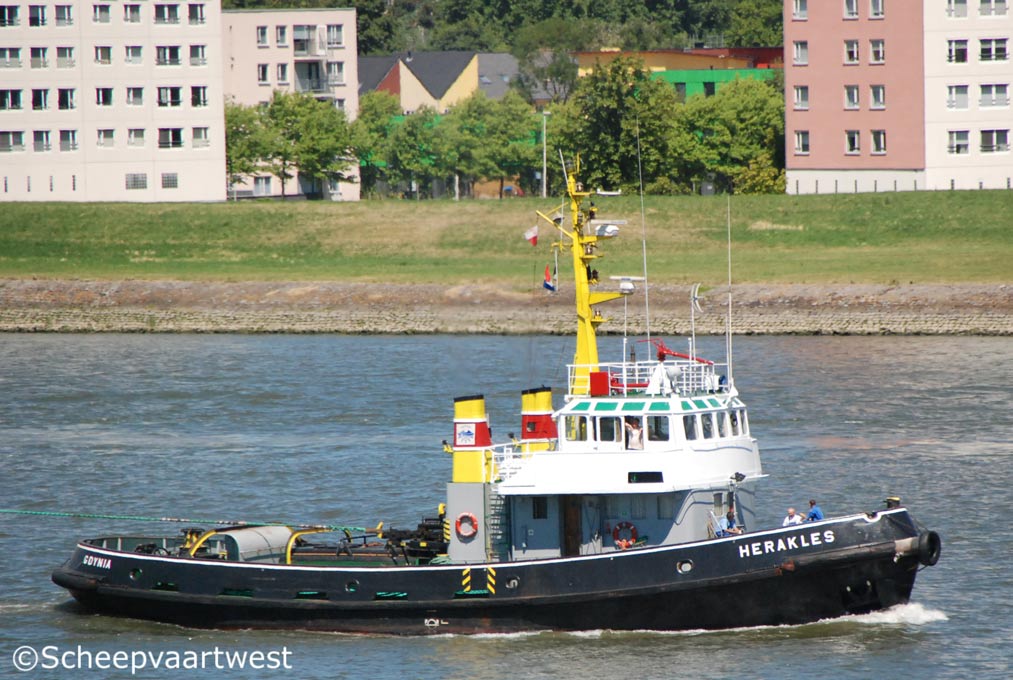

HERAKLES |
|
Type |
Tug |
|
IMO-number |
6614853 |
|
Call sign |
SQFK |
|
Flag |
Poland |
|
Port of registry |
Gdynia |
|
GT |
183 t |
|
DWT |
101 t |
|
NT |
53 t |
|
Length |
28,61 m overall 26,62 m between perpendiculars |
|
Breadth |
8,41 m overall |
|
Draught |
3,34 m |
|
Depth |
3,99 m |
|
Speed |
12,0 knots |
|
Built |
1966 |
|
Date of completion |
08.1966 |
|
Builder |
Svendborg Skibsvaerft & Maskinbyggeri AS Svendborg |
|
Yard number |
117 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Holeby 5-26MTBF-40 - 4 stroke 5 cylinder 260 x 400 mm diesel engine - total 1.214 KW Starter type: Compressed air Built: 1965 Builder: Holeby Dieselmotor Fabrik A/S |
|
Propellers |
1x Solid propeller |
|
Bollard pull |
22,5 t |
|
Towing hook |
2 |
|
Towing equipment aft |
1x Hydraulic Single Drum Wire length: 600 m Diameter: 36 mm |
|
Brake holding power aft |
50 t |
|
FiFi Monitors |
1 |
|
Generators |
3x Diesel generatorsets each 50 kVA |
|
Emergency generator |
1x Diesel generatorset 12 kVA |
|
Owner |
WUZ Port & Maritime Services Company Ltd. |
